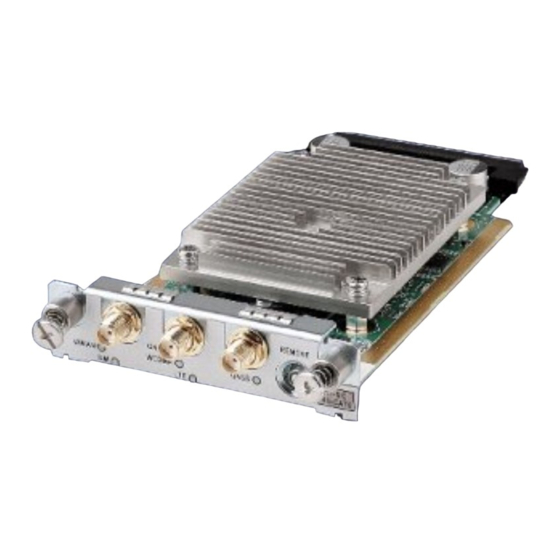

H3C MSR 4G SIC-4G-CAT6 Module
SIM Card, Antenna, and Antenna
Extension Cable Installation Guides

Installing a SIM card

The SIC-4G-CAT6 interface module uses micro SIM cards.
The SIC-4G-CAT6 interface module provides two SIM card slots, but only
one is active at a time. If you install SIM cards in both slots, the SIM0 slot is
active and the SIM1 slot is in standby state by default. To perform an
active/standby switchover, execute the
more information about the command, see 3G/4G modem management
commands in H3C MSR Router Series Layer 2—WAN Access Command
Reference.

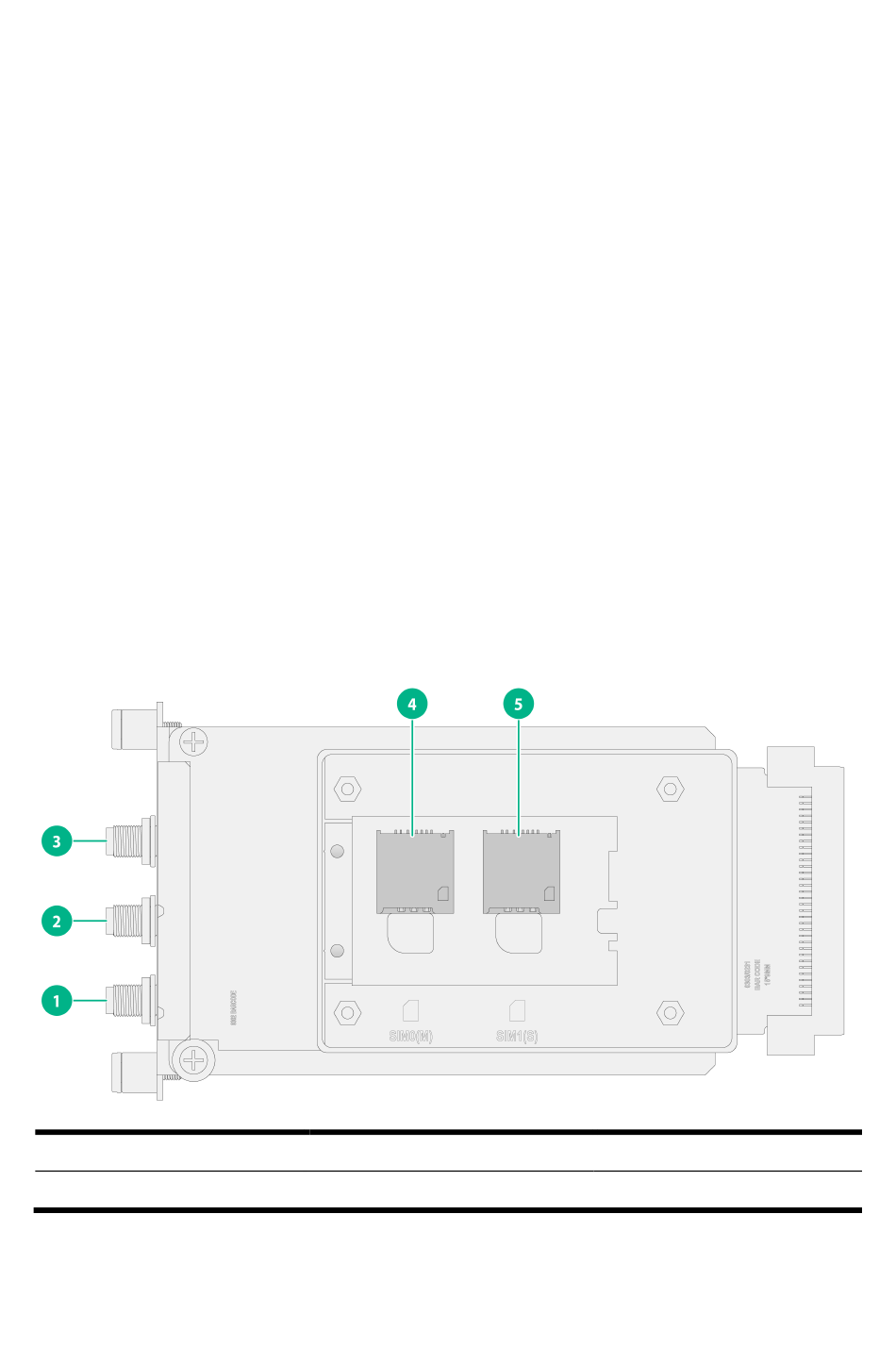

Figure 1 SIC-4G-CAT6 interface module
(1) M0 antenna port
(4) SIM0 slot
sim switch-to
(2) GNSS antenna port
(5) SIM1 slot
1
command. For
(3) M1 antenna port
