Manual version: 6PW102-20230321
H3C SecPath M9000-AI NSQM5AIASKA1 AI security
1 Identifier
The module identifier NSQM5AIASKA1 is on the far right of the front panel.
2 About the module
The NSQM5AIASKA1 AI security engine module provides one console port, one management
Ethernet copper port, one BMC console port, one BMC network port, two 10GBASE-R-SFP+ fiber
ports, one SUV connector, and one USB port.
3 Specifications

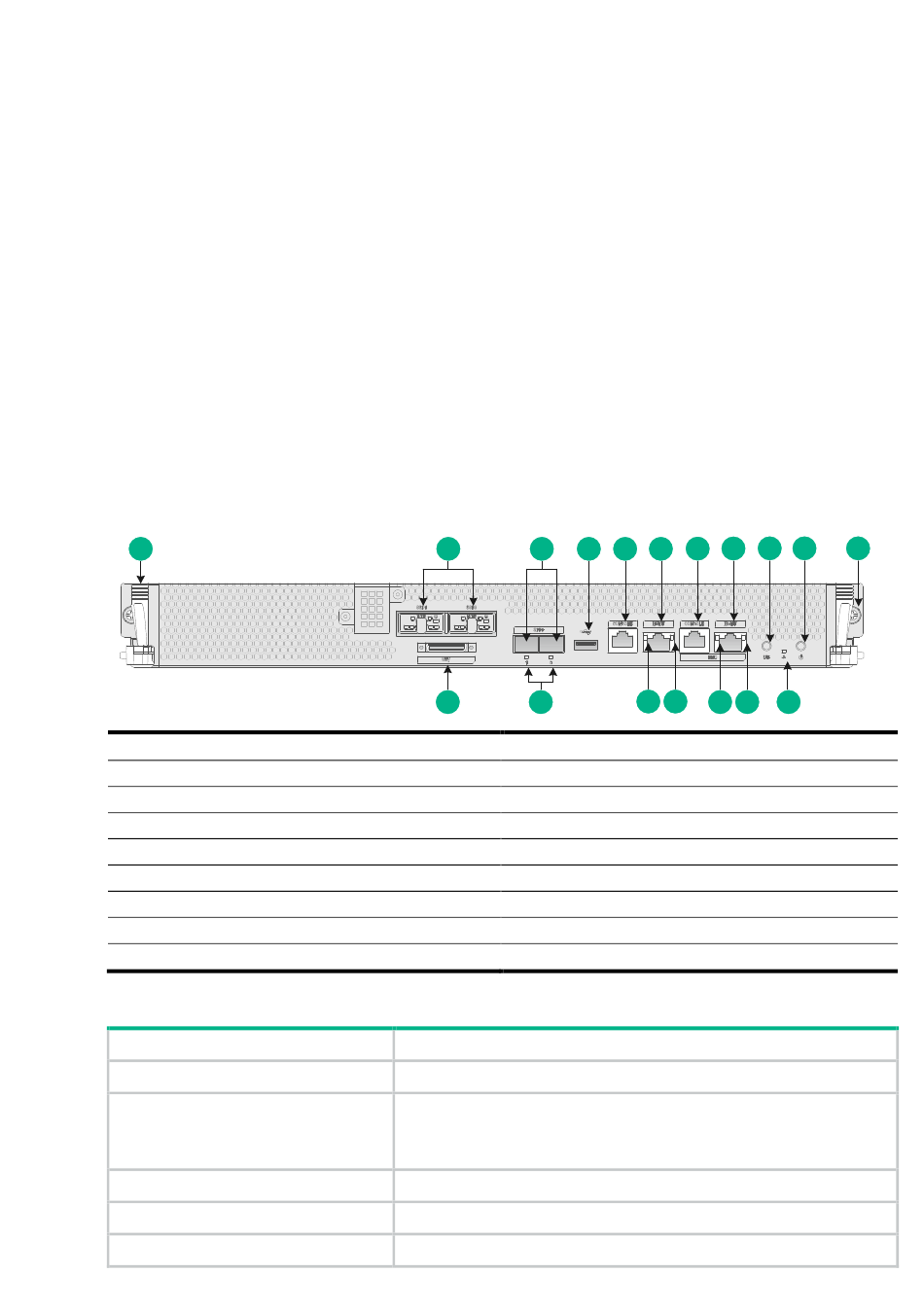

Figure 1 Front panel
1
(1) Ejector lever
(3) 10GBASE-R-SFP+ fiber ports
(5) Console port
(7) BMC console port
(9) UID button/LED
(11) Captive screw
(13) BMC network port ACT LED
(15) Management Ethernet copper port ACT LED
(17) 10GBASE-R-SFP+ fiber port LEDs
Table 1 Module specifications
Item
Memory
Storage
Number of CPUs
Dimensions (H × W × D)
Weight
engine module
2
18
(2) NVMe SSD slots
(4) USB port
(6) Management Ethernet copper port
(8) BMC network port
(10) Power on/standby button
(12) System status LED
(14) BMC network port LINK LED
(16) Management Ethernet copper port LINK LED
(18) SUV connector
Specification
64GB (one 32GB DIMM per CPU)
1920GB (two 960GB SATA SSDs are provided with the module)
Two NVMe SSD slots are on the front panel for storage expansion.
You can purchase and install 2TB NVMe SSDs in the slots.
2
50 × 433 × 520 mm (1.97 × 17.05 × 20.47 in)
9.64 kg (21.25 lb)
i
3
4
5
6
7
16
15
17
BOM: 3123A1XP
8
9
10
11
14
13
12
Advertisement
Table of Contents
Related Manuals for H3C SecPath M9000-AI NSQM5AIASKA1
Summary of Contents for H3C SecPath M9000-AI NSQM5AIASKA1
- Page 1 Manual version: 6PW102-20230321 BOM: 3123A1XP H3C SecPath M9000-AI NSQM5AIASKA1 AI security engine module 1 Identifier The module identifier NSQM5AIASKA1 is on the far right of the front panel. 2 About the module The NSQM5AIASKA1 AI security engine module provides one console port, one management Ethernet copper port, one BMC console port, one BMC network port, two 10GBASE-R-SFP+ fiber ports, one SUV connector, and one USB port.
- Page 2 Manual version: 6PW102-20230321 BOM: 3123A1XP Item Specification Power consumption 165 W to 462 W Hot swapping Supported • 1 × console port (See Table 2 for port specifications) • 1 × management Ethernet copper port (See Table 3 for port specifications) •...
- Page 3 Manual version: 6PW102-20230321 BOM: 3123A1XP Table 4 SFP+ transceiver module specifications Maximum Central Connector Cable Module transmission wavelength type specifications distance SFP-XG-SX-MM850-A 850 nm 50/125 µm MMF 300 m (984.25 ft) SFP-XG-LX-SM1310 1310 nm 9/125 µm SMF 10 km (6.21 miles) 4 LEDs The module provides LEDs to indicate the operating status of the module and ports.
- Page 4 For information about upgrading the module, see the release notes for the device. For information about installing the module, see the installation guide for the device. Copyright © 2023 New H3C Technologies Co., Ltd. The information in this document is subject to change without notice.
