Invisalign + iRecord: Records the file (iRecord) and uploads an Invisalign scan to the IDS portal. Saves two
o
different scans, as may be requested for insurance-refund purposes.
Restorative: A scan that you need to send to a laboratory for modeling or milling.
o
The New Scan window is displayed, according to the case type selected.

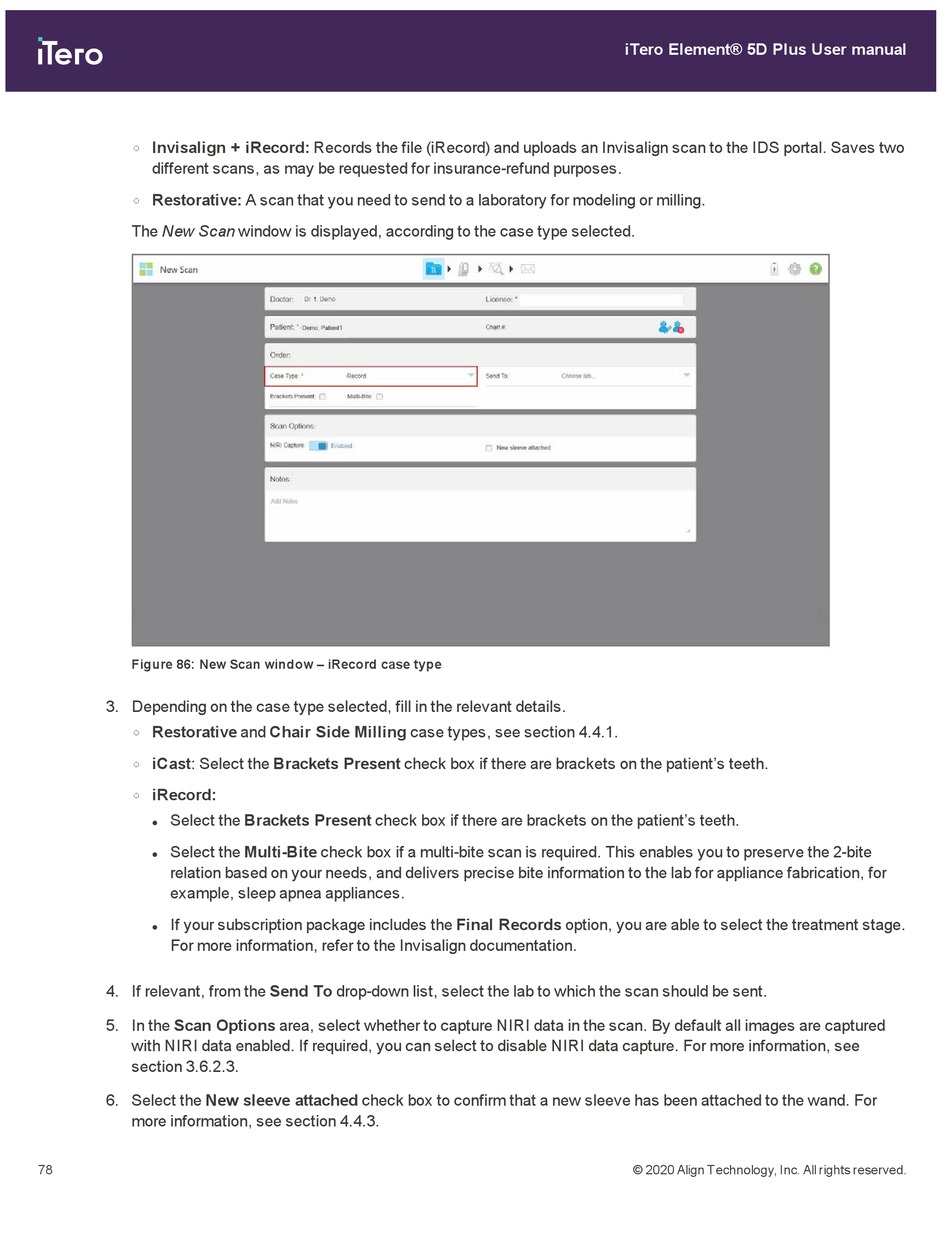

Figure 86: New Scan window – iRecord case type
3. Depending on the case type selected, fill in the relevant details.
Restorative and Chair Side Milling case types, see section 4.4.1.
o
iCast: Select the Brackets Present check box if there are brackets on the patient's teeth.
o
iRecord:
o
Select the Brackets Present check box if there are brackets on the patient's teeth.
l
Select the Multi-Bite check box if a multi-bite scan is required. This enables you to preserve the 2-bite
l
relation based on your needs, and delivers precise bite information to the lab for appliance fabrication, for
example, sleep apnea appliances.
If your subscription package includes the Final Records option, you are able to select the treatment stage.
l
For more information, refer to the Invisalign documentation.
4. If relevant, from the Send To drop-down list, select the lab to which the scan should be sent.
5. In the Scan Options area, select whether to capture NIRI data in the scan. By default all images are captured
with NIRI data enabled. If required, you can select to disable NIRI data capture. For more information, see
section 3.6.2.3.
6. Select the New sleeve attached check box to confirm that a new sleeve has been attached to the wand. For
more information, see section 4.4.3.
78
