4.6.1

Missing scan segment notifications

If there are missing scan segments or bite scans when you tap the
of the post-processing stage, and you will be able to go back and fix the scan, in order to reduce manual intervention
later on.
Notifications are displayed in the following cases:
Missing prep or arch – segments were not scanned or not stitched together properly
l
Bite issues
l
Missing bite
l
Bite scanned from one side only
l
Discrepancy between the left and the right bite scans
l
In addition, the bite section in the navigation controls is highlighted in red.
The message may be generic, or very specific to the issue including guidance on how to correct the issue. In some
cases, you may be warned that the case may be returned from the lab if you do not fix the issues.

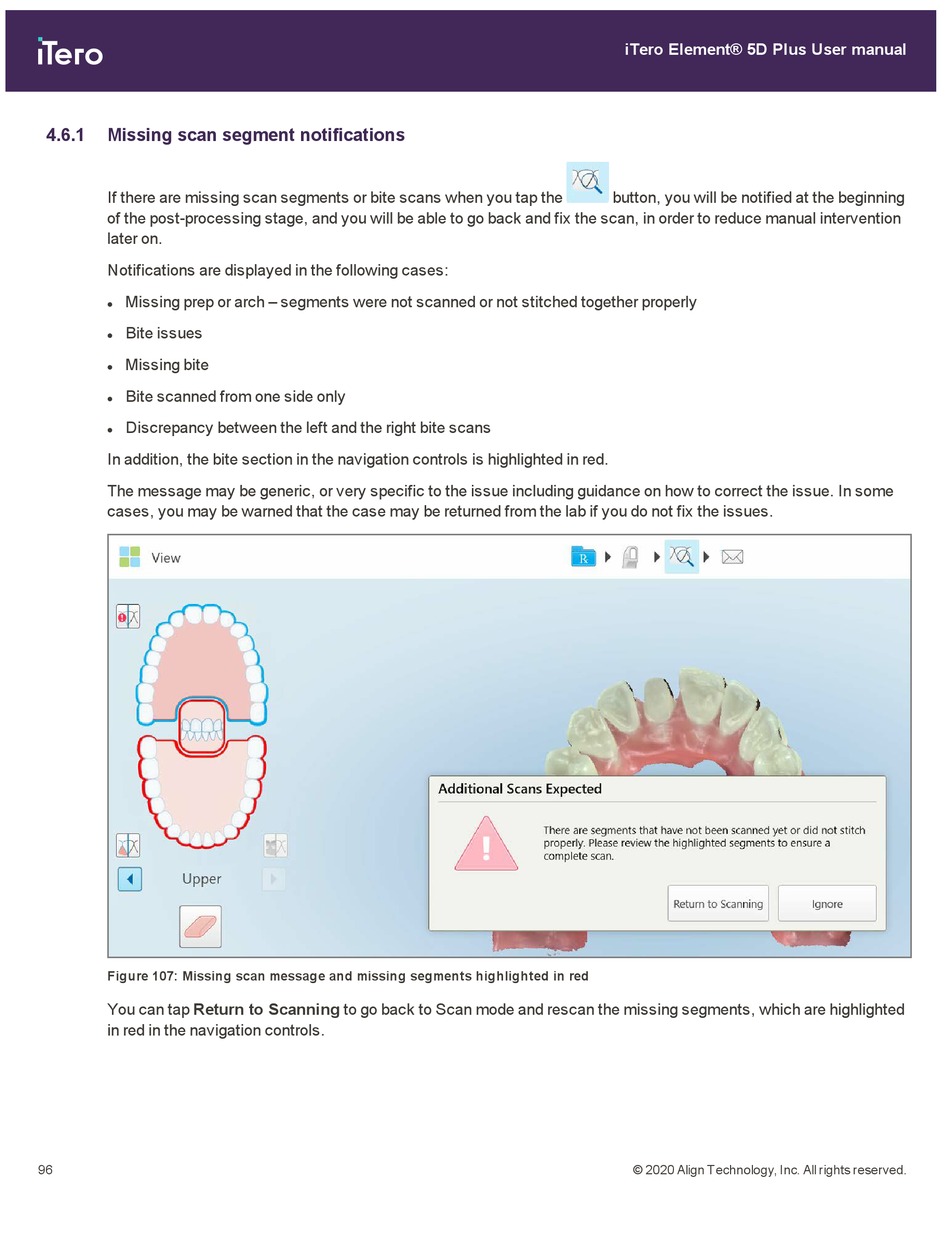

Figure 107: Missing scan message and missing segments highlighted in red

You can tap Return to Scanning to go back to Scan mode and rescan the missing segments, which are highlighted
in red in the navigation controls.
96
iTero Element® 5D Plus User manual
button, you will be notified at the beginning
