To shut down the scanner:
1. Close all files and applications.
2. Press and release the Power button located on the top right of the screen to shut down the system.
CAUTION: Never press the Power button for more than 4 seconds. This activates a hard reset, which can cause
problems such as gray and blue screens.

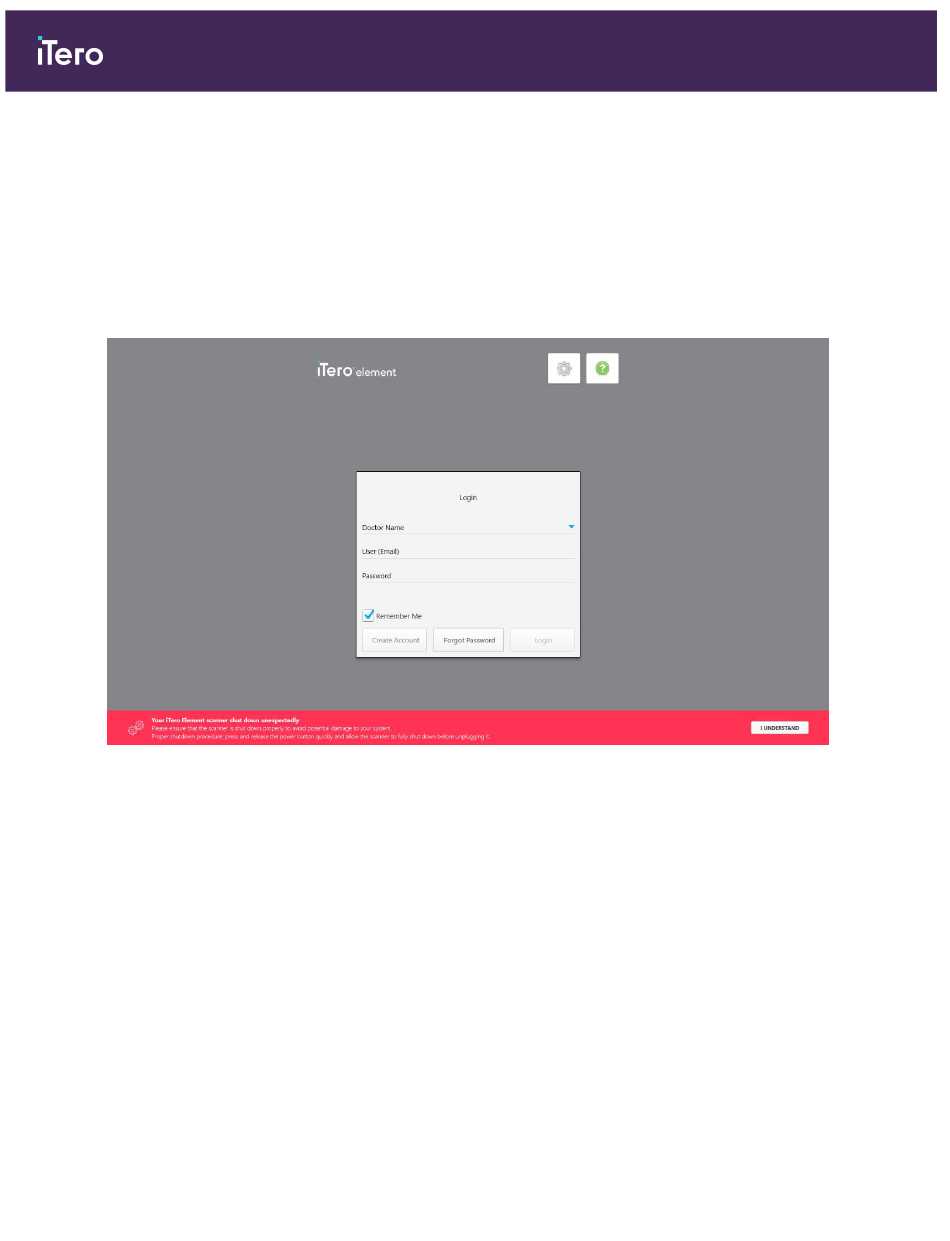

Note: If you do not shut down the scanner correctly, the next time you log in, a message will be displayed notifying
you of this and will remain until you acknowledge the message by tapping I UNDERSTAND.

Figure 38: Notification about incorrect scanner shutdown

3.4

Moving the scanner

The scanner can be moved between rooms within the office and while you are seated, with a patient.
To move the scanner between rooms:
1. Ensure that the wand is firmly positioned in the cradle.
2. Unplug the system from the wall outlet and carefully wrap the power cable around the upper handle, to prevent the
cable from being caught between the wheels.
3. Using the upper handle, move the system to its new location and plug it into a wall outlet.
Note: If the scanner needs to be lifted, lift it using the upper handle and the post.
34
iTero Element® 5D Plus User manual
© 2020 Align Technology, Inc. All rights reserved.
