iTero Element® 5D Plus User manual
PPE and work environment
o
Please follow the cleaning and disinfecting material manufacturers' instructions.
l
Note: Replace cleaning and disinfection materials (brushes/wipes) if visibly damaged or soiled.
Before starting the cleaning and disinfection procedure, put on your PPE.

10.3.2 Cradle cleaning and disinfection

Cleaning
1. Using CaviWipes1, remove any gross contaminants on the cradle for a minimum of one (1) minute.
Note: If you are using an alternative disinfectant, please refer to section 10.6 for the required contact time.

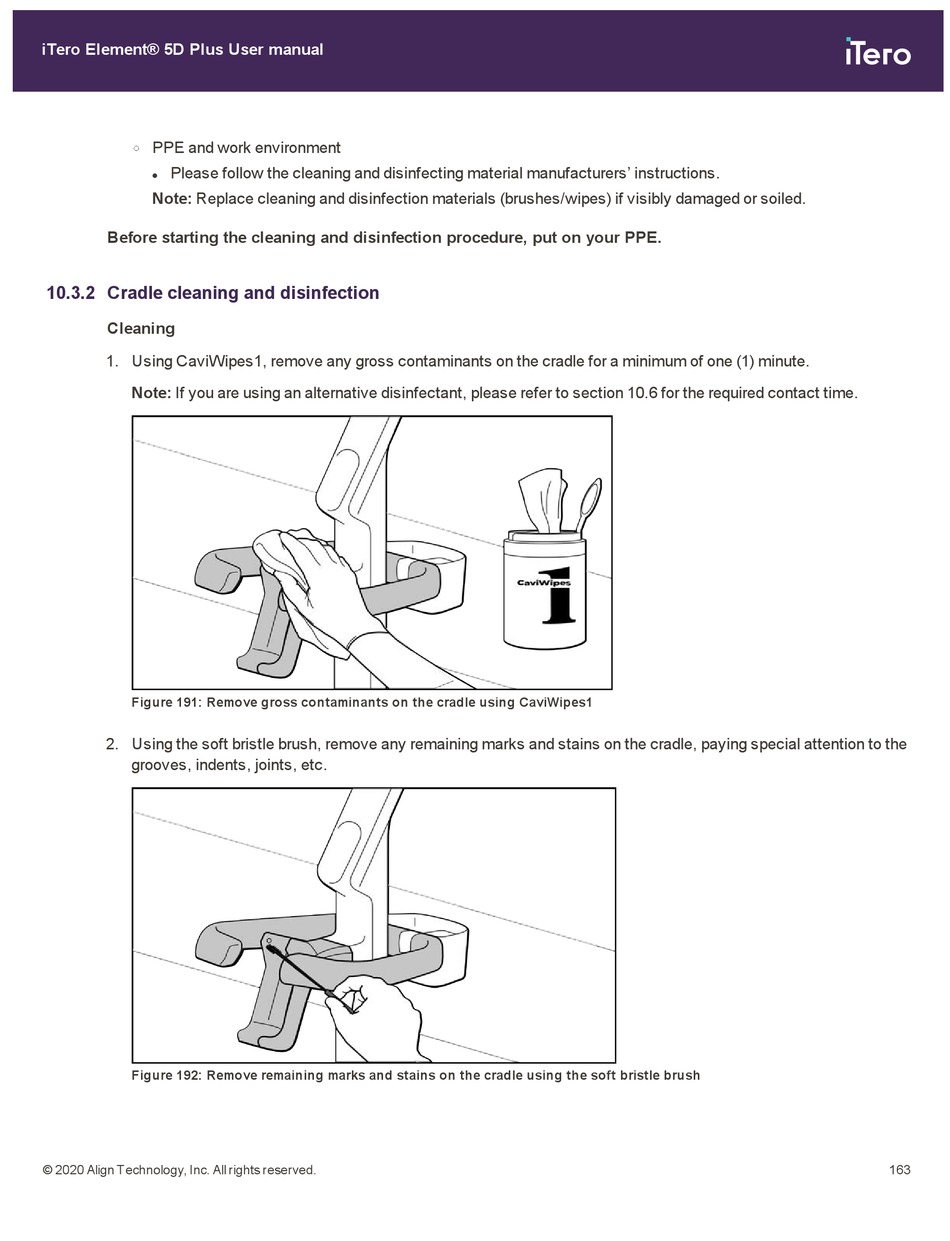

Figure 191: Remove gross contaminants on the cradle using CaviWipes1

2. Using the soft bristle brush, remove any remaining marks and stains on the cradle, paying special attention to the
grooves, indents, joints, etc.

Figure 192: Remove remaining marks and stains on the cradle using the soft bristle brush
