To activate the Review tool:
In the View window, tap
l

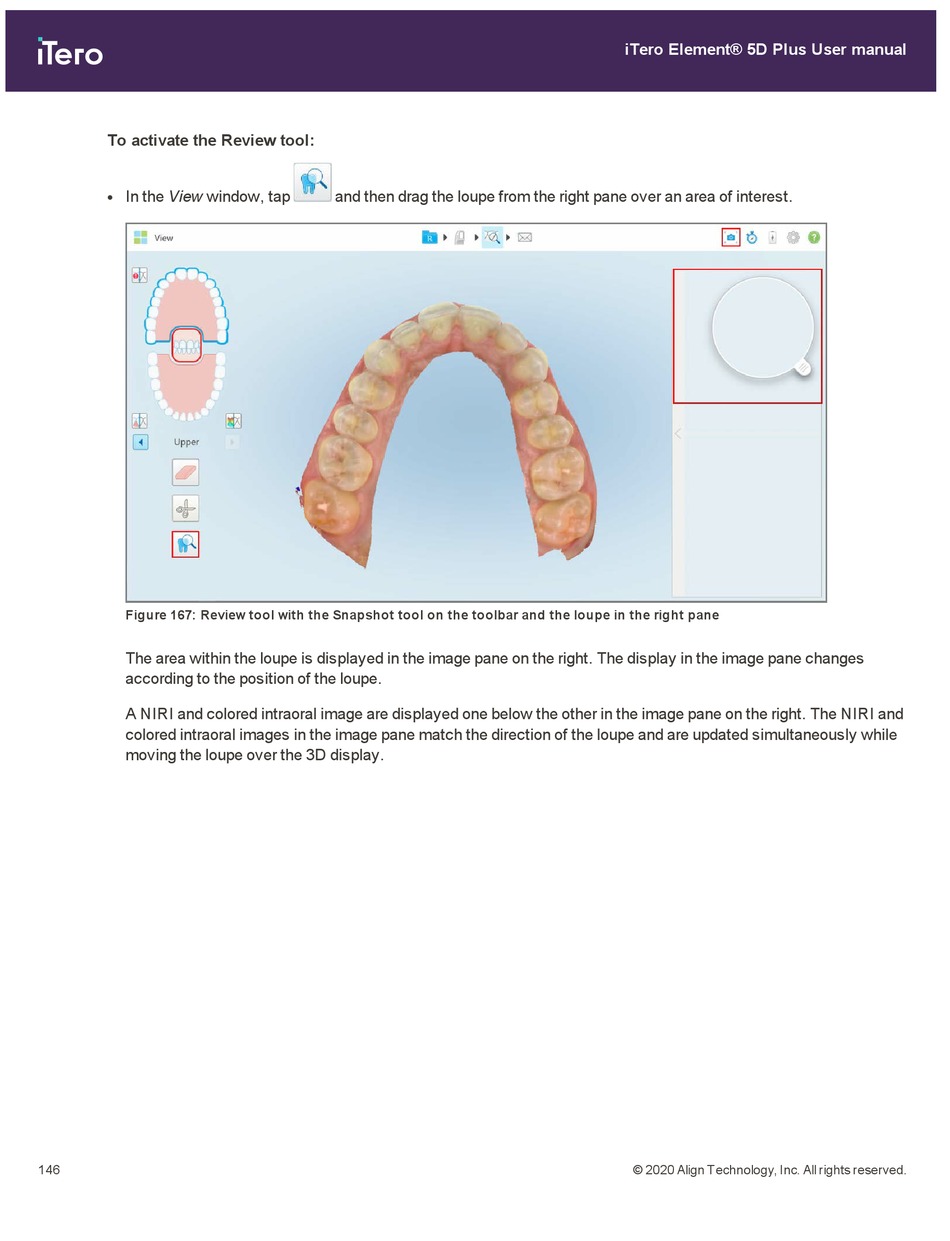

Figure 167: Review tool with the Snapshot tool on the toolbar and the loupe in the right pane

The area within the loupe is displayed in the image pane on the right. The display in the image pane changes
according to the position of the loupe.
A NIRI and colored intraoral image are displayed one below the other in the image pane on the right. The NIRI and
colored intraoral images in the image pane match the direction of the loupe and are updated simultaneously while
moving the loupe over the 3D display.
146
and then drag the loupe from the right pane over an area of interest.
