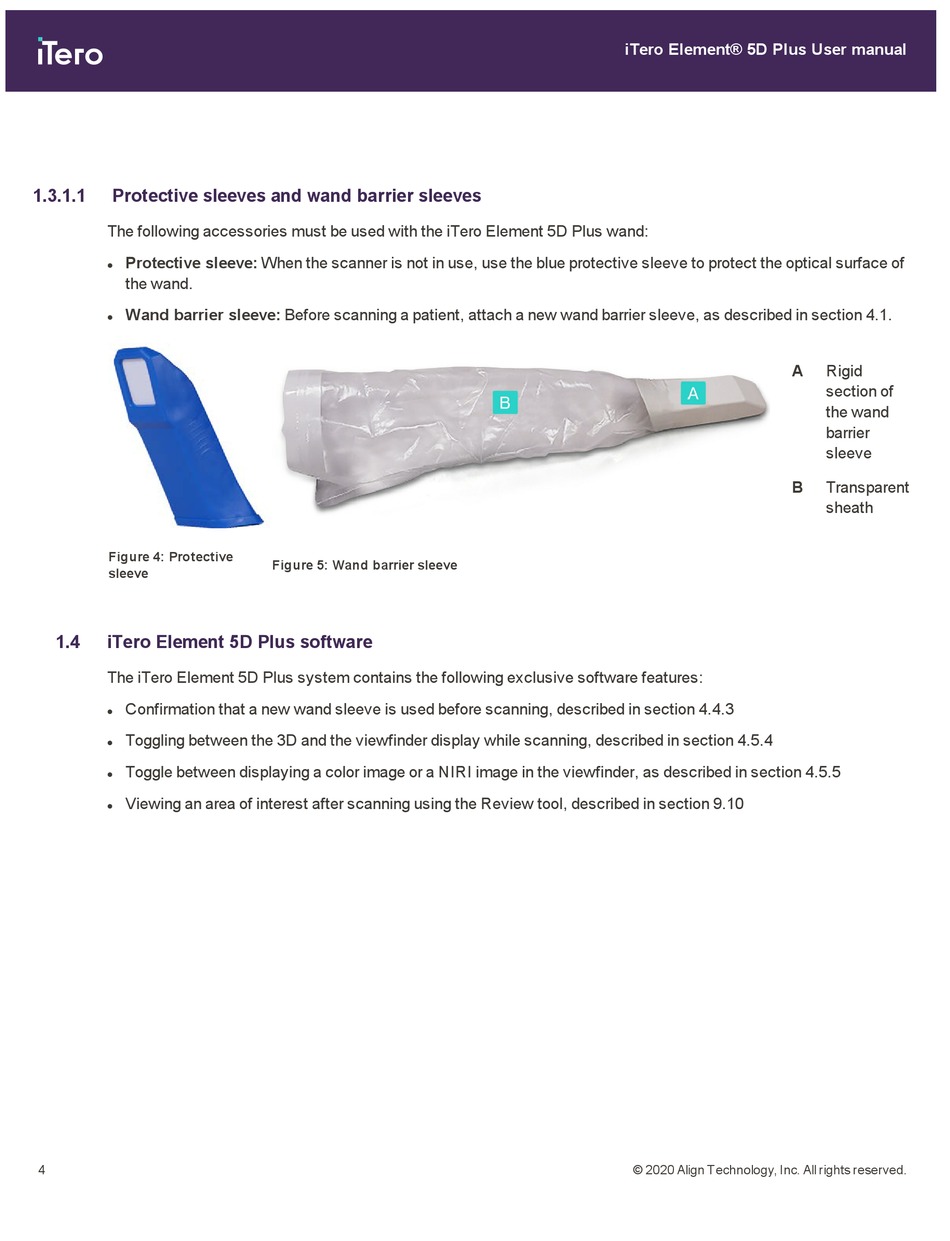

1.3.1.1 Protective sleeves and wand barrier sleeves
The following accessories must be used with the iTero Element 5D Plus wand:
Protective sleeve: When the scanner is not in use, use the blue protective sleeve to protect the optical surface of
l
the wand.
Wand barrier sleeve: Before scanning a patient, attach a new wand barrier sleeve, as described in section 4.1.
l
Figure 4: Protective
sleeve
1.4

iTero Element 5D Plus software

The iTero Element 5D Plus system contains the following exclusive software features:
Confirmation that a new wand sleeve is used before scanning, described in section 4.4.3
l
Toggling between the 3D and the viewfinder display while scanning, described in section 4.5.4
l
Toggle between displaying a color image or a NIRI image in the viewfinder, as described in section 4.5.5
l
Viewing an area of interest after scanning using the Review tool, described in section 9.10
l
4

Figure 5: Wand barrier sleeve

iTero Element® 5D Plus User manual
A
B
© 2020 Align Technology, Inc. All rights reserved.
Rigid
section of
the wand
barrier
sleeve
Transparent
sheath
