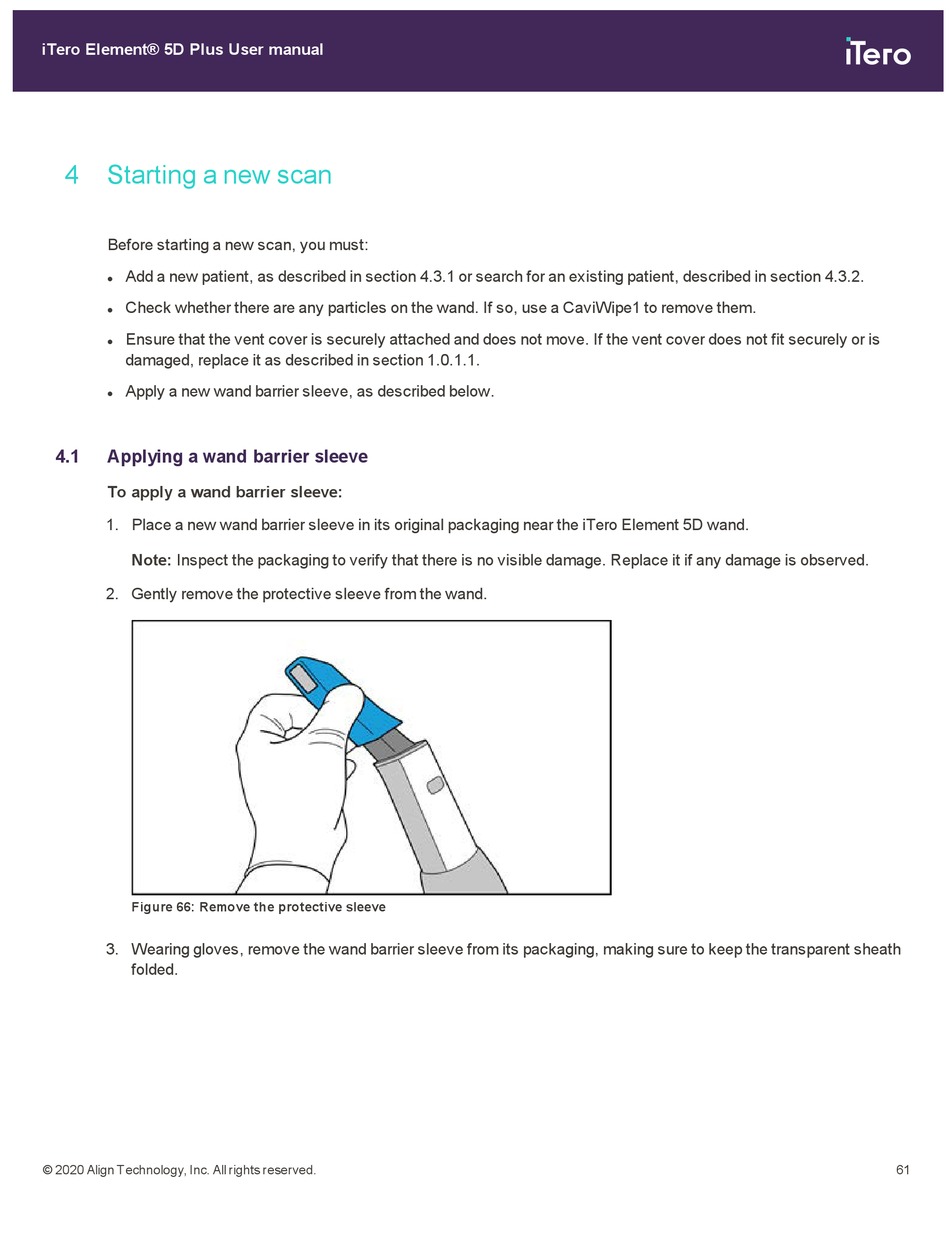

iTero Element® 5D Plus User manual
4

Starting a new scan

Before starting a new scan, you must:
Add a new patient, as described in section 4.3.1 or search for an existing patient, described in section 4.3.2.
l
Check whether there are any particles on the wand. If so, use a CaviWipe1 to remove them.
l
Ensure that the vent cover is securely attached and does not move. If the vent cover does not fit securely or is
l
damaged, replace it as described in section 1.0.1.1.
Apply a new wand barrier sleeve, as described below.
l
4.1

Applying a wand barrier sleeve

To apply a wand barrier sleeve:
1. Place a new wand barrier sleeve in its original packaging near the iTero Element 5D wand.
Note: Inspect the packaging to verify that there is no visible damage. Replace it if any damage is observed.
2. Gently remove the protective sleeve from the wand.

Figure 66: Remove the protective sleeve

3. Wearing gloves, remove the wand barrier sleeve from its packaging, making sure to keep the transparent sheath
folded.
© 2020 Align Technology, Inc. All rights reserved. 61
