Basic Setup

If you are sure that all connections have been made, proceed to the basic setup of the
intelligent Touch Manager. Here, "basic setup" means setting up the intelligent Touch Man-
ager in preparation for controlling the operation of your air conditioning system.
Turning on the power of the intelligent Touch Manager starts a setup program that lets you
complete the basic setup procedure. You can complete the basic setup procedure by fol-
lowing the instructions displayed on the monitor display in steps.
The setting assignment made through this procedure may be changed at a later time.
The following sections appear in the order of the setup steps.
4.1

Powering on data backup battery

To retain the settings even in the event of a power outage, the intelligent Touch Manager
has a built-in battery. Because this battery is disabled by default, the first thing you should
do is to enable it.
1. Open the front slide cover.
2. Remove the front switch cover.
Take out screws using a Phillips screwdriver to
remove the front switch cover.
3. Turn ON the BACKUP switch and attach the front
switch cover back to its original position. If the
power supply is left off for a long period of time
(six months or more), turn OFF the BACKUP
switch.
4.2

Powering on intelligent Touch Manager and air conditioners

Turn on the intelligent Touch Manager and the air conditioners connected to it.
1. First power on the air conditioners and then power on the intelligent Touch Manager.
The Title screen appears and, after a while, the message "Ready to set up A/C central-
ized address" appears.
"A/C centralized address" (hereinafter referred to as "DIII-NET address") refers to a
management number for identifying each air conditioner in a DIII-NET system. A DIII-
NET address needs to be assigned manually using the remote controller for
each air conditioner. Refer to "4.8 Assigning a DIII-NET address for each air con-
ditioner" for how to assign a DIII-NET address.
When finished assigning air conditioner addresses, proceed to the next step.
2. Touch OK.
The Language Settings screen appears.
Before power-on, make sure that all installation and connection procedures are
done without problems.
English
CAUTION
Installation Manual 3P291714-7H
DCM601B51 intelligent Touch Manager

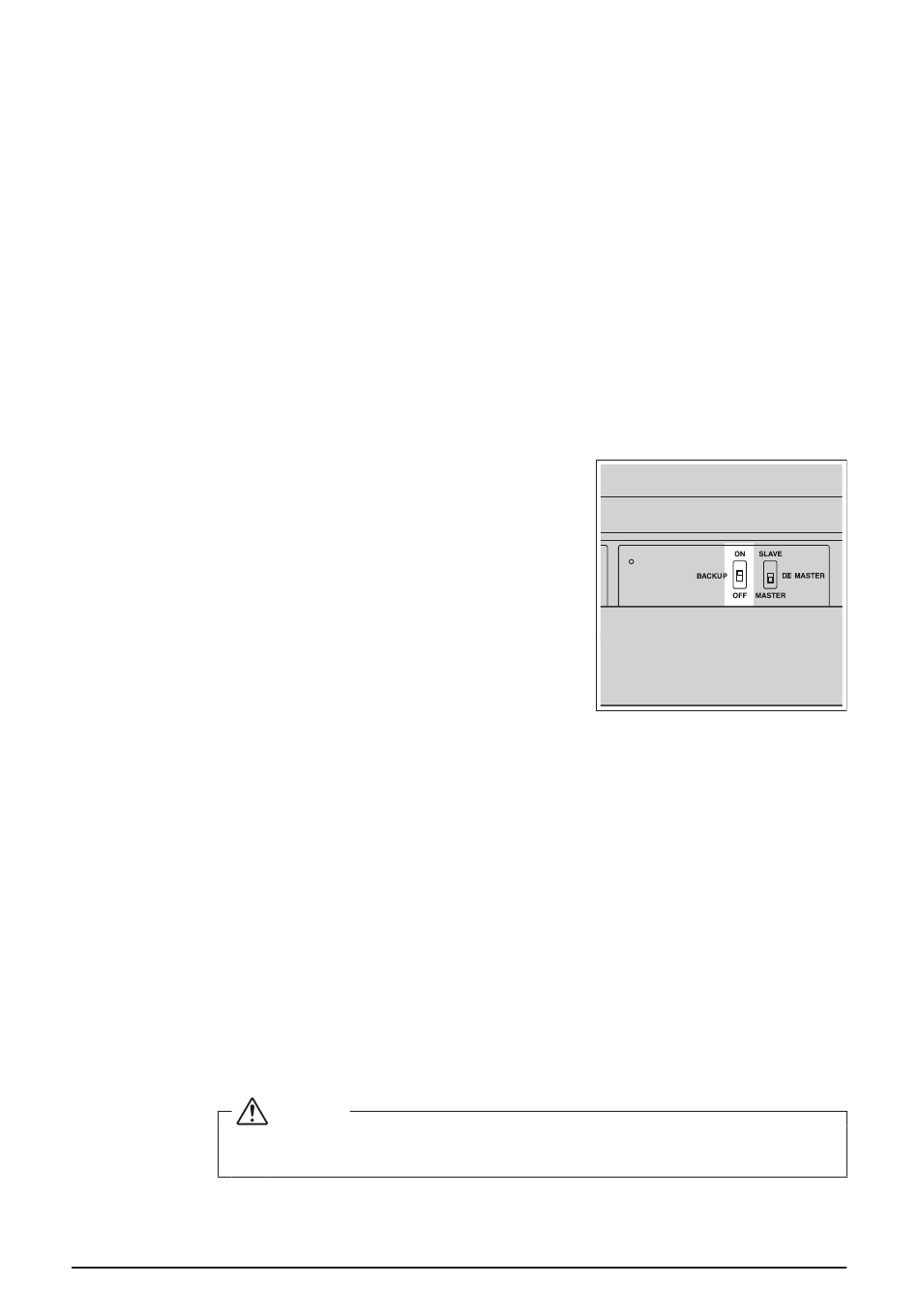

< BACKUP switch >
