2.3.1

Terminals location and conceptual connection diagram

Using a LAN cable, connect the LAN socket to the network hub.

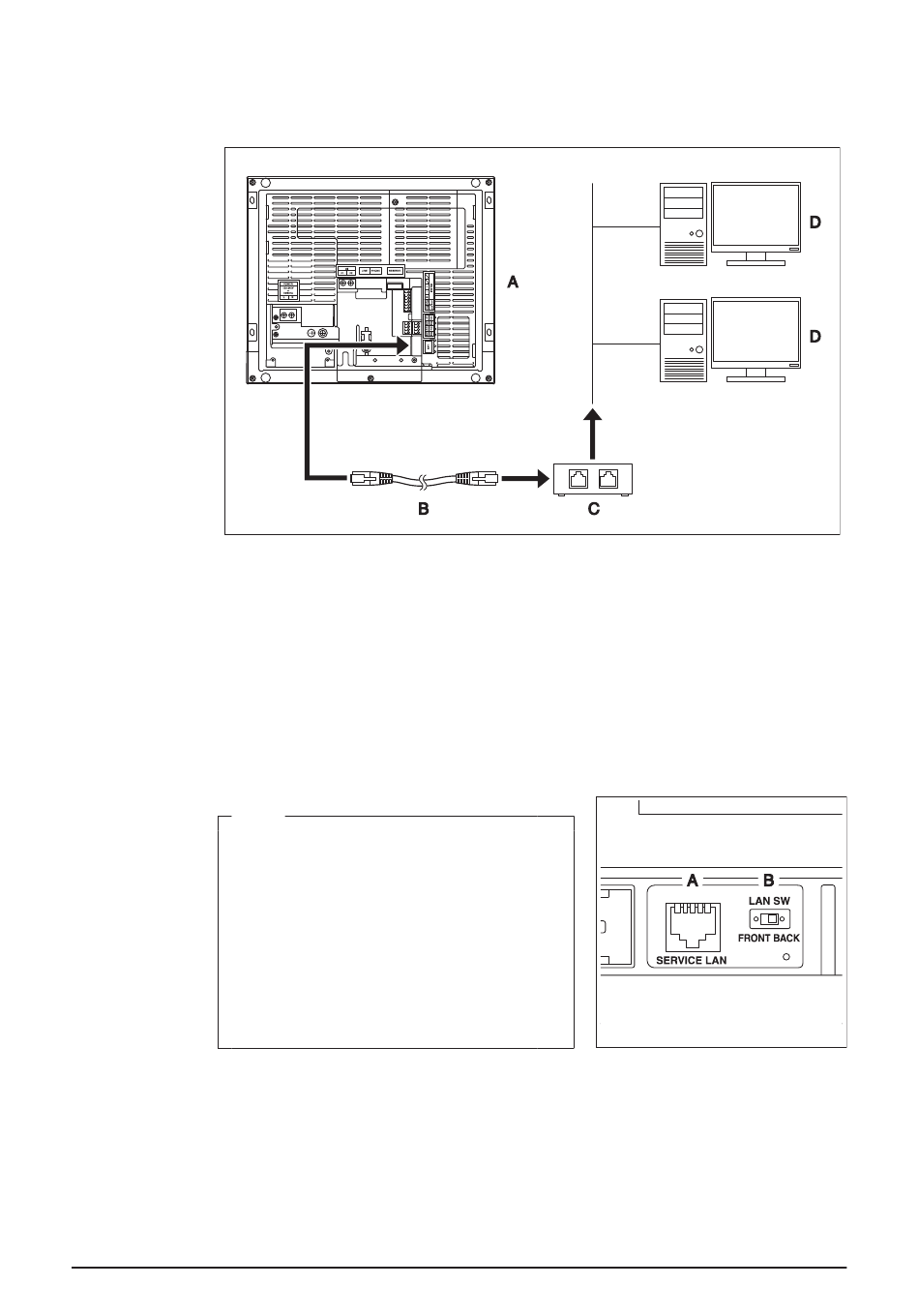

<Conceptual drawing of LAN connection>
A
B
C
D
2.3.2

Requirements that must be met

• Applicable cable standard: 100Base-TX or 10Base-T
• Connector standard: RJ-45
NOTE
• If you are connecting to a LAN temporarily
during installation or maintenance, use the
SERVICE LAN terminal located on the front
face.
Changing the position of the LAN SW switch
to "FRONT" causes the SERVICE LAN socket
to activate (enabled for use).
• You cannot close the front switch cover when
the switch set to "FRONT". To close the front
switch cover, select "BACK".
English
Rear face of intelligent Touch Manager
LAN cable
Hub
PC
Installation Manual 3P291714-7H
DCM601B51 intelligent Touch Manager
<SERVICE LAN socket and LAN SW
switch>
A
SERVICE LAN
B
LAN SW
