1.3.3

Side face

On the left side face of the intelligent Touch Manager, a USB port cover is provided. You
use this cover during setup after installation or during maintenance. You also see an
attached label, bearing the model, weight, power ratings and the serial number of the
intelligent Touch Manager.

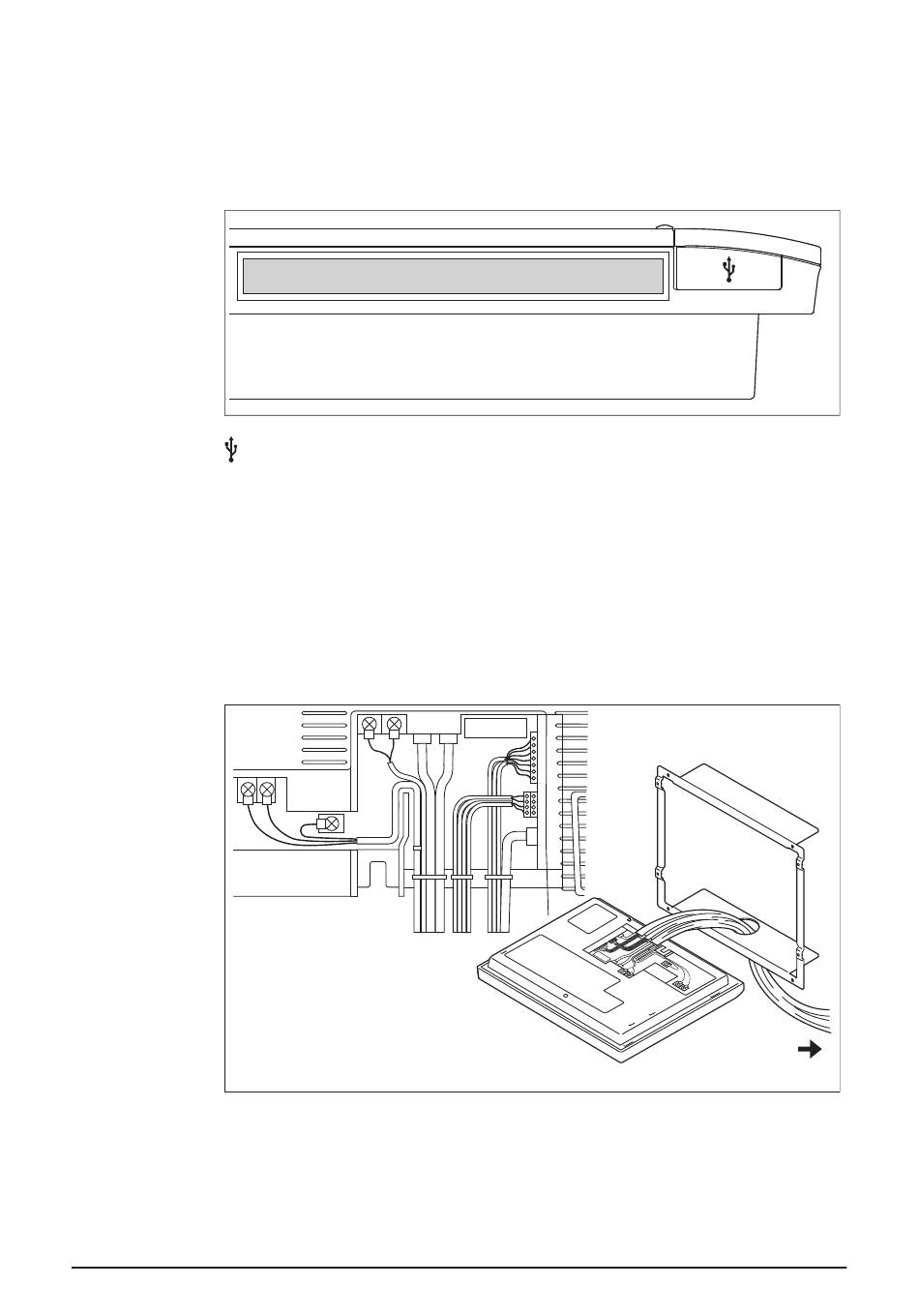

<Side face of intelligent Touch Manager>
[ ] Pulling up the rubber cover reveals a USB socket. This socket can be raised 90
degrees, so you can plug in a USB device to it from the front direction when there is no
clearance from the side edge of the unit.
1.3.4

Routing of cables

To flush-mount the intelligent Touch Manager to the wall, you need to route in advance the
cables through the cable hole of the frame bracket.
An example of cables routed to the rear face of the intelligent Touch Manager is shown
below.
<Routing of cables>
A To conduit tube
Make sure that each wiring is secured with supplied cable ties.
Secure the power supply cables to the resin cable mount with white cable ties and secure
them to the other wiring with black cable ties as shown on the wiring diagram (example).
To secure the wiring with black cable ties, insert the cable tie head into the provided hole.
