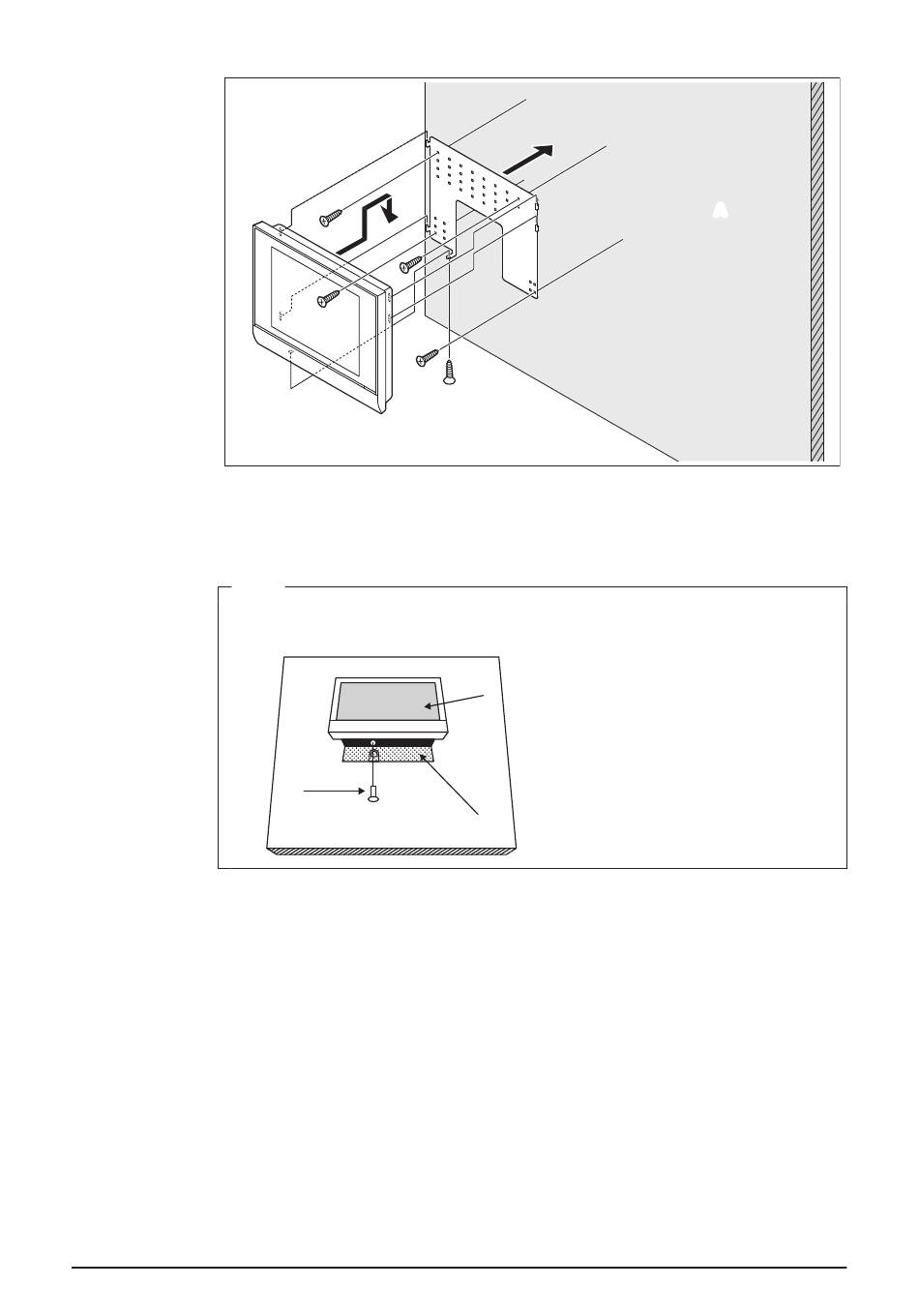

<Wall mounting installation>
A
B
C
NOTE
• How to use the P-tight screw
Screw in from the bottom of the intelligent Touch Manager.
3.2

Flush wall mounting

3.2.1

Parts to be used

To flush-mount the intelligent Touch Manager to the wall, use the following accessory
mounting parts:
• Frame bracket, 1 pc.
• Angle bracket, 2 pcs.
• Flat-head screw (M4×40), 4 pcs.
• Pan-head screw (M4×14, with spring washer and plain washer), 4 pcs.
English
C
C
C
C
M O
N IT
O R
Wall
P-tight screw
Round-head wood screw
A
Installation Manual 3P291714-7H
DCM601B51 intelligent Touch Manager
B
A P-tight screw
B
intelligent Touch Manager
B
C Wall mounting metal plate
C
A
27
