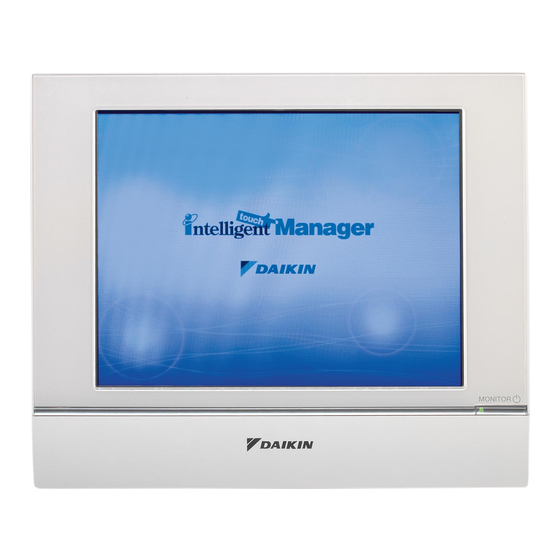

- Page 1 Installation Manual intelligent Touch Manager Model DCM601B51 3P291714-7H...
- Page 3 Improper positioning of the electric parts box lid may result in an abnormal heat build- up, an electric shock, or fire. English Installation Manual 3P291714-7H DCM601B51 intelligent Touch Manager...
- Page 4 Otherwise, a short-circuit may occur in a pressure switch, temperature switch, or other protective equipment, forcing the unit to operate unexpectedly. In addition, use of parts other than those specified by DAIKIN may result in firing. • Install an earth leakage breaker, as required.
-
Page 5: Table Of Contents
2.7.1 Opening the power supply terminal cover ..............24 2.7.2 Terminals location and conceptual connection diagram ..........24 2.7.3 Attaching the rear cover ....................25 2.7.4 Requirements that must be met ..................25 English Installation Manual 3P291714-7H DCM601B51 intelligent Touch Manager... - Page 6 Quick Operation Guide ..................45 Viewing target area and management point information in list format ........45 Viewing target areas and management points ................ 45 Starting/stopping an area or management point ..............46 Installation Manual 3P291714-7H English DCM601B51 intelligent Touch Manager...
-
Page 7: Before Installation
(d-2) Nut (φ4), 4 pcs. (e-1) Cable tie, 1 pc. (e-2) Push mount tie, 3 pcs. (f-1) Installation manual (This manual), 1 pc. (f-2) Manual CD, 1 pc. (f-3) Paper template, 2 pcs. English Installation Manual 3P291714-7H DCM601B51 intelligent Touch Manager... -
Page 8: Understanding External Dimensions
Understanding external dimensions • intelligent Touch Manager body 256.6mm 272mm 25mm 25mm 4.5mm 4.5mm 4.5mm 4.5mm 290mm • Wall mounting metal plate 234.2mm 60mm 40mm Thickness 0.8mm Installation Manual 3P291714-7H English DCM601B51 intelligent Touch Manager... - Page 9 • Frame bracket 281.4mm 241mm 61.6mm 7.5mm 224.6mm Thickness 1.6mm • Angle bracket 28.2mm 11.6mm 20mm 43.7mm Thickness 1.6mm English Installation Manual 3P291714-7H DCM601B51 intelligent Touch Manager...
-
Page 10: Understanding Where Terminals And Switches Are Located
[DIII] The communication line connection terminals for “DIII-NET”, which enables communications with DAIKIN’s air conditioning equipment. [LINE, PHONE] The sockets used when subscribing to the DAIKIN “Air Conditioning Network Service System” online monitoring service for air-conditioning systems. To use the “Air Conditioning Network Service System” service, you need to sign a sepa- rate maintenance contact. -
Page 11: Front Panel
Off: The monitor is powered off. On (Orange): The monitor display is off. On (Green): The monitor display is on. [RESET//] The switch for restarting the intelligent Touch Manager. English Installation Manual 3P291714-7H DCM601B51 intelligent Touch Manager... -
Page 12: Side Face
(example). To secure the wiring with black cable ties, insert the cable tie head into the provided hole. Installation Manual 3P291714-7H English DCM601B51 intelligent Touch Manager... -
Page 13: Determining Installation Place
30 mm from the right side edge, and 60 mm from the bottom edge of the unit. <Installation space required for intelligent Touch Manager> Required installa- tion space 30mm 100mm 100mm 30mm 243mm MONITOR MONITOR 290mm 60mm MONITOR MONITOR 60mm Wall English Installation Manual 3P291714-7H DCM601B51 intelligent Touch Manager... -
Page 14: Connection
Connection This chapter describes the procedure for connecting the intelligent Touch Manager with DAIKIN air conditioning devices and other equipment. In addition to air conditioners, the intelligent Touch Manager can monitor and control a wide range of equipment. However, the required connection procedures vary depending on the equipment to be connected. -
Page 15: Removing The Power Supply Terminal Cover
Power supply terminal cover Connecting DIII-NET-compatible air conditioning equipment DIII-NET is a unique air conditioning equipment communication capability developed by DAIKIN. Using DIII-NET, you can centrally control multiple DAIKIN DIII-NET-compatible air conditioning devices by connecting them to your intelligent Touch Manager. WARNING •... - Page 16 A maximum of 16 indoor units can be connected per remote controller group. A maximum of 64 remote controller groups (128 indoor units) can be connected. A maximum of 64 indoor units can be connected when power distribution is enabled. Installation Manual 3P291714-7H English DCM601B51 intelligent Touch Manager...
-
Page 17: Requirements That Must Be Met
Equipment that controls multiple air conditioners is referred to as “centralized controller”. DAIKIN’s product portfolio includes a wide range of centralized controllers suited to differ- ent applications or target sizes, which can be used in combination to construct an optimal air conditioning control system. -
Page 18: Connecting A Lan Cable
WARNING Do not clamp the cables with high-current lines such as a power cable. NOTE For how to connect the intelligent Touch Manager to a PC network, contact your net- work administrator. Installation Manual 3P291714-7H English DCM601B51 intelligent Touch Manager... -
Page 19: Terminals Location And Conceptual Connection Diagram
“FRONT” causes the SERVICE LAN socket to activate (enabled for use). • You cannot close the front switch cover when the switch set to “FRONT”. To close the front switch cover, select “BACK”. SERVICE LAN LAN SW English Installation Manual 3P291714-7H DCM601B51 intelligent Touch Manager... -
Page 20: Connecting I/O Module
Connecting I/O module The intelligent Touch Manager can be used in conjunction with the I/O module. The I/O module provides a maximum of 960 I/O points for controlling non-DAIKIN peripheral equipment such as lighting equipment and security lock systems. WARNING •... -
Page 21: Address Setup
• Power distribution is available for a maximum of 64 air conditioners (indoor units) per DIII-NET port. • However, by using DGE601A52 and DGE601A53 units, you can connect up to 512 indoor units. English Installation Manual 3P291714-7H DCM601B51 intelligent Touch Manager... -
Page 22: Terminals Location And Conceptual Connection Diagram
• Do not clamp the cables with high-current lines such as a power cable. NOTE When emergency stop input signal is enabled, you cannot restart all the air condition- ers unless you disable it. Installation Manual 3P291714-7H English DCM601B51 intelligent Touch Manager... -
Page 23: Connecting Dge601A52
Touch Manager (Rear face) DGE601A52 plus ADP IF (intelligent Touch Manager) plus ADP IF (DGE601A52) DGE601A53 DGE601A53 on which termination resistor must be enabled (For details, refer to “DGE601A53 Installation Manual”.) English Installation Manual 3P291714-7H DCM601B51 intelligent Touch Manager... -
Page 24: Requirements That Must Be Met
<Conceptual drawing of power sup- ply connection> Connect the power supply to the three terminals, L (Live), N (Neutral), and ground in the POWER sec- tion. Earth Earth leakage breaker Power supply 100-240VAC 50/60 Hz Installation Manual 3P291714-7H English DCM601B51 intelligent Touch Manager... -
Page 25: Attaching The Rear Cover
• Do not connect the earth wire to gas or water pipes, lighting rod, or telephone earth wire. • Replace the unit when the unit cannot be turned on due to the blowing of the electrical fuse. English Installation Manual 3P291714-7H DCM601B51 intelligent Touch Manager... -
Page 26: Installation
Although you may use any of these screw holes, use ones closer to the edge as much as possible to prevent wobbling. • Secure the wall mounting metal plate at four points using the round-head wood screws. Installation Manual 3P291714-7H English DCM601B51 intelligent Touch Manager... -
Page 27: Flush Wall Mounting
To flush-mount the intelligent Touch Manager to the wall, use the following accessory mounting parts: • Frame bracket, 1 pc. • Angle bracket, 2 pcs. • Flat-head screw (M4×40), 4 pcs. • Pan-head screw (M4×14, with spring washer and plain washer), 4 pcs. English Installation Manual 3P291714-7H DCM601B51 intelligent Touch Manager... -
Page 28: Wall Opening Dimensions
• You need to route in advance the cables connected to the rear face of the intelligent Touch Manager through the cable hole provided at the bottom of the frame bracket. • Before installing the intelligent Touch Manager body, remove the terminal cover from the rear face. Installation Manual 3P291714-7H English DCM601B51 intelligent Touch Manager... - Page 29 You can remove it by hand as this is not screwed. Removing the frame reveals four screw holes, two holes each to the left and right of the monitor display. English Installation Manual 3P291714-7H DCM601B51 intelligent Touch Manager...
- Page 30 Tightening torque value: 1.0 N∙m <Installing intelligent Touch Manager body> Pan-head screw 4. Snap the resin frame back into the front face of the intelligent Touch Manager as it was before. Installation Manual 3P291714-7H English DCM601B51 intelligent Touch Manager...
-
Page 31: Direct Mounting To Control Enclosure
• After tightening the pan-head screws, make sure that the monitor switch still gives off a tactile click when pushed. Tightening torque value: 1.0 N∙m 3. Snap the resin frame back into the front face of the intelligent Touch Manager as it was before. English Installation Manual 3P291714-7H DCM601B51 intelligent Touch Manager... - Page 32 Power supply terminal cover Terminal cover Control enclosure intelligent Touch Manager Installation Manual 3P291714-7H English DCM601B51 intelligent Touch Manager...
-
Page 33: Basic Setup
When finished assigning air conditioner addresses, proceed to the next step. 2. Touch OK. The Language Settings screen appears. CAUTION Before power-on, make sure that all installation and connection procedures are done without problems. English Installation Manual 3P291714-7H DCM601B51 intelligent Touch Manager... -
Page 34: Setting Up Display Language
“Locale setup” allows to set up how you want to see items that are expressed in different ways depending on the region, such as the date/time, temperature, and decimal point, on the display. <Locale Settings screen> Installation Manual 3P291714-7H English DCM601B51 intelligent Touch Manager... -
Page 35: Setting Time Zone
1. On the Time/DST Setup screen, set up the date/time and the daylight saving time schedule. (Enable or disable the daylight saving time function. If enabled, select the start time and the end time.) 2. Touch OK. The A/C Auto Register screen appears. English Installation Manual 3P291714-7H DCM601B51 intelligent Touch Manager... -
Page 36: Confirming Air Conditioner Auto Registration Results
The names of buttons and areas of a wired remote controller used in this section are shown below. <Wired Remote Controller> Address display area Parameter number display area Programming time buttons Temperature setting buttons Timer ON/OFF button Inspection / Test operation button Installation Manual 3P291714-7H English DCM601B51 intelligent Touch Manager... -
Page 37: Procedure For A Wired Remote Controller
2. Using the Temperature Setting buttons, change the value shown in the parameter num- ber display area to “00”. In the address display area, the current address setting is displayed. (This area will show “–” if no address is set.) <Step 2> GROUP SETTING English Installation Manual 3P291714-7H DCM601B51 intelligent Touch Manager... - Page 38 4. Using the Programming time buttons, select the address you want to set. <Step 4> GROUP SETTING 5. Press the Timer ON/OFF button to make the “GROUP” indicator stay lit. The DIII-NET address has been set. <Step 5> GROUP SETTING Installation Manual 3P291714-7H English DCM601B51 intelligent Touch Manager...
-
Page 39: Procedure For A Navigation Remote Controller
F i e l d s e t t i n g l i s t Group No. s e t t i n g Indoor unit Air net No. set Error record Retur n Setting English Installation Manual 3P291714-7H DCM601B51 intelligent Touch Manager... - Page 40 Retur n Change 6. Press the Menu/Enter button. The DIII-NET address has been set. <Step 6> Group No. s e t t i n g (Group) Group No 1-03 Retur n Release Installation Manual 3P291714-7H English DCM601B51 intelligent Touch Manager...
-
Page 41: Setting An Unique Address To Each Unit (When Power Distribution Is Enabled)
Setting an unique address to each unit (when power distribution is enabled) When power distribution is enabled, you need to set a unique address for each unit. For how to set an address, refer to the commissioning manual. English Installation Manual 3P291714-7H DCM601B51 intelligent Touch Manager... -
Page 42: Outdoor Unit Settings
LEDs (segment) and setting switches for each mode LED display’s outdoor unit Segment display’s outdoor unit SEG1 SEG2 SEG3 Display of each mode (LED/segment) MODE RETURN TEST RESET MODE RETURN Setting switches for each mode Installation Manual 3P291714-7H English DCM601B51 intelligent Touch Manager... -
Page 43: Steps For Enabling Demand Address Setting And Demand Setting
H1P H2P H3P H4P H5P H6P H7P SEG1 SEG2 SEG3 Demand setting (enabled) (Blinking) 9. Press the BS3 button 2 times to fix the setting value. 10. Press the BS1 button 1 time to return to the normal mode. English Installation Manual 3P291714-7H DCM601B51 intelligent Touch Manager... -
Page 44: Steps For Setting The Outdoor Unit Airnet Address
Segment display’s LED display’s outdoor unit Setting items outdoor unit H1P H2P H3P H4P H5P H6P H7P SEG1 SEG2 SEG3 Demand address setting Demand setting enabled/ disabled Outdoor unit Airnet address setting Installation Manual 3P291714-7H English DCM601B51 intelligent Touch Manager... -
Page 45: Quick Operation Guide
(2) Touch the Down button to go to the area being selected and view the areas and management points in it. (3) Touch the Up button to go to the area one level above the current area. English Installation Manual 3P291714-7H DCM601B51 intelligent Touch Manager... -
Page 46: Starting/Stopping An Area Or Management Point
(operating) and gray when stopped. (3) When Confirmation Dialog is set to “Enabled” in the system setup, the corresponding message appears. Select the Yes button to confirm the Start/Stop operation. Installation Manual 3P291714-7H English DCM601B51 intelligent Touch Manager... - Page 48 3P291714-7H EM21A028A (2205) HT...
