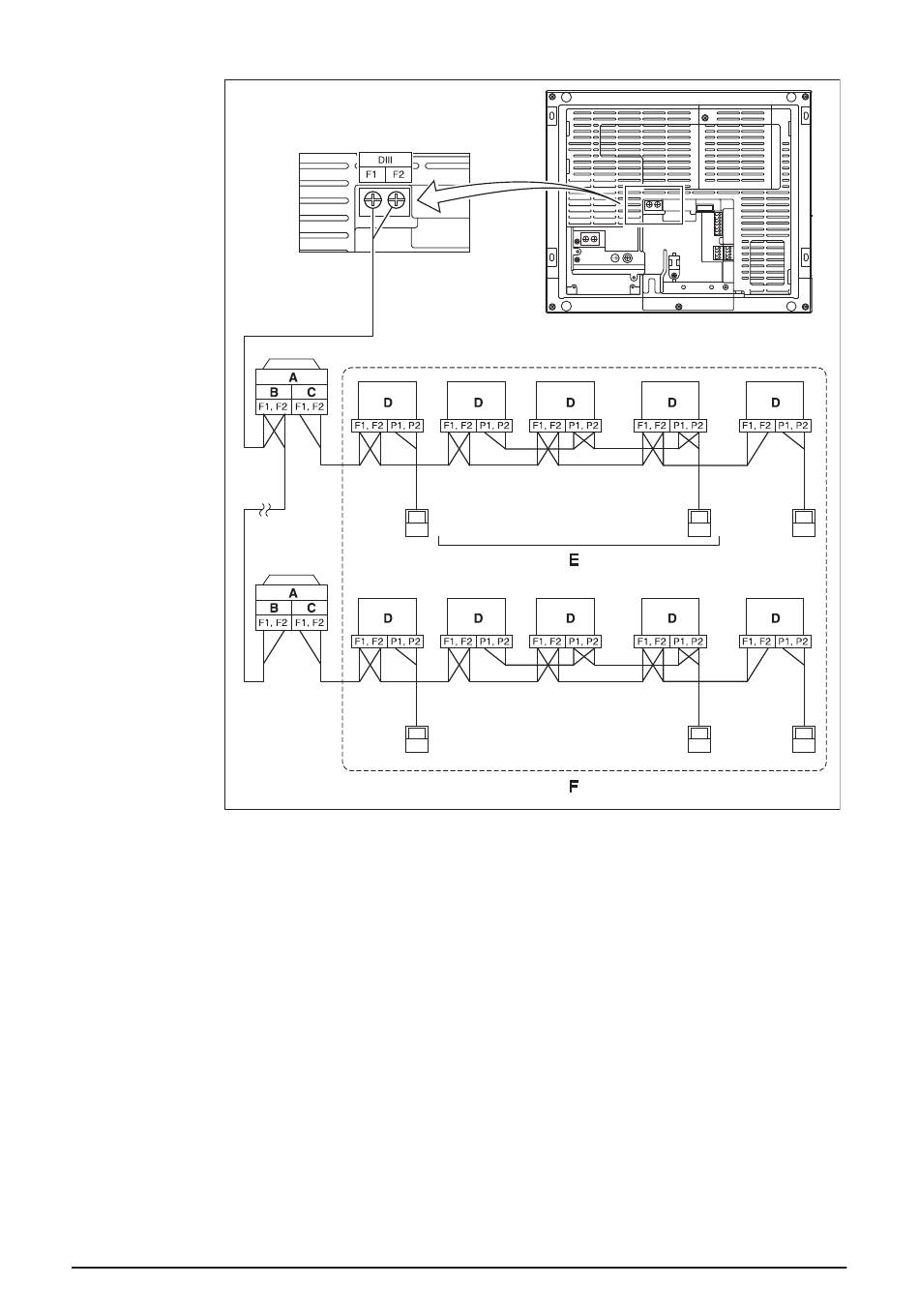

<Conceptual connection diagram with air conditioning equipment>
A
B
C
D
E
F
16
Outdoor unit
OUT - OUT
IN - OUT
Indoor unit
A maximum of 16 indoor units can be connected per remote controller group.
A maximum of 64 remote controller groups (128 indoor units) can be connected.
A maximum of 64 indoor units can be connected when power distribution is enabled.
Installation Manual 3P291714-7H
