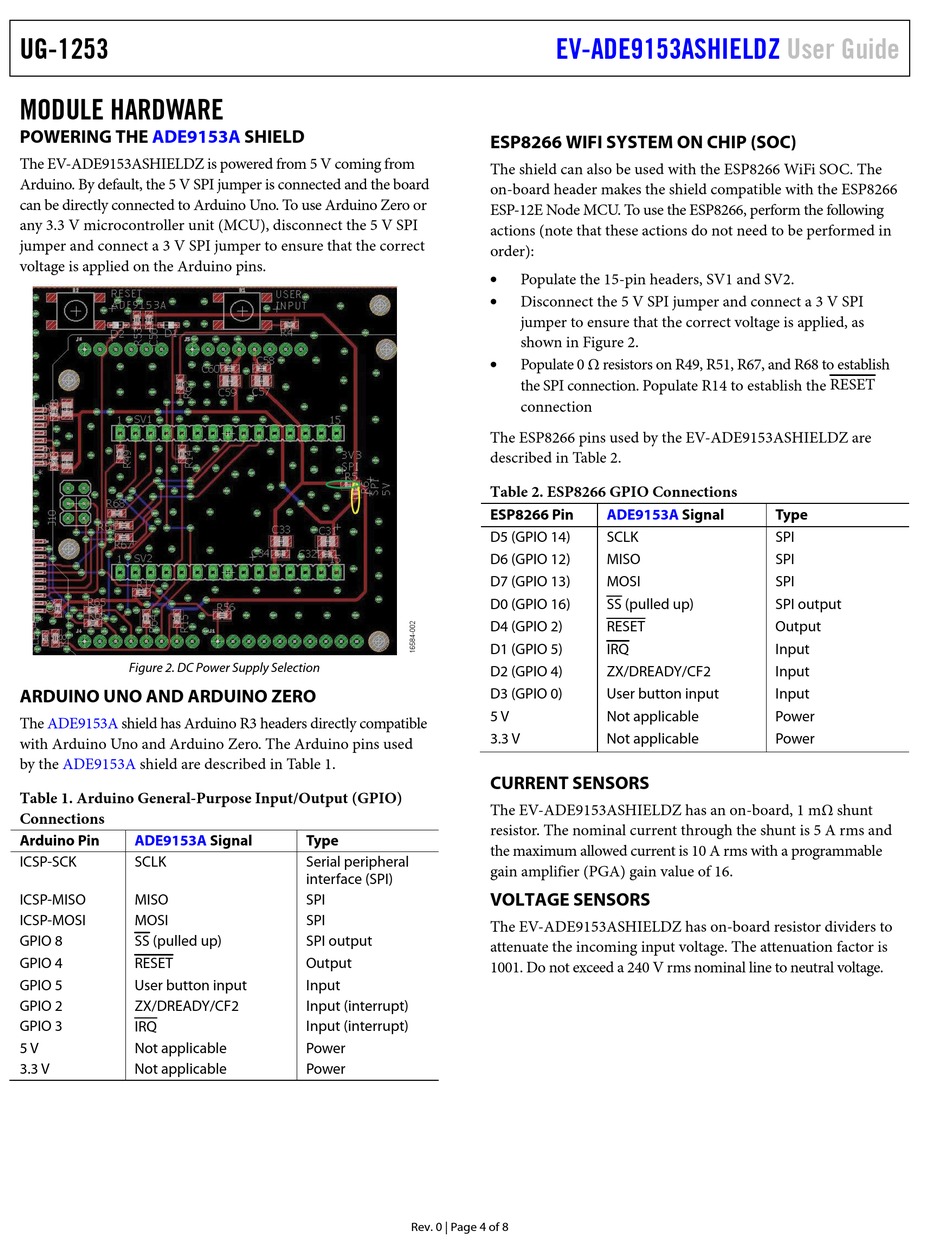

MODULE HARDWARE

POWERING THE ADE9153A
The EV-ADE9153ASHIELDZ is powered from 5 V coming from
Arduino. By default, the 5 V SPI jumper is connected and the board
can be directly connected to Arduino Uno. To use Arduino Zero or
any 3.3 V microcontroller unit (MCU), disconnect the 5 V SPI
jumper and connect a 3 V SPI jumper to ensure that the correct
voltage is applied on the Arduino pins.
Figure 2. DC Power Supply Selection

ARDUINO UNO AND ARDUINO ZERO

The ADE9153A shield has Arduino R3 headers directly compatible
with Arduino Uno and Arduino Zero. The Arduino pins used
by the ADE9153A shield are described in Table 1.
Table 1. Arduino General-Purpose Input/Output (GPIO)
Connections
Arduino Pin ADE9153A
ICSP-SCK SCLK
ICSP-MISO MISO
ICSP-MOSI MOSI
GPIO 8 SS (pulled up)
GPIO 4 RESET
GPIO 5 User button input
GPIO 2 ZX/DREADY/CF2
GPIO 3 IRQ
5 V Not applicable
3.3 V Not applicable
SHIELD
Signal Type
Serial peripheral
interface (SPI)
SPI
SPI
SPI output
Output
Input
Input (interrupt)
Input (interrupt)
Power
Power
EV-ADE9153ASHIELDZ

ESP8266 WIFI SYSTEM ON CHIP (SOC)

The shield can also be used with the ESP8266 WiFi SOC. The
on-board header makes the shield compatible with the ESP8266
ESP-12E Node MCU. To use the ESP8266, perform the following
actions (note that these actions do not need to be performed in
order):

Populate the 15-pin headers, SV1 and SV2.

Disconnect the 5 V SPI jumper and connect a 3 V SPI
jumper to ensure that the correct voltage is applied, as
shown in Figure 2.

Populate 0 Ω resistors on R49, R51, R67, and R68 to establish
the SPI connection. Populate R14 to establish the RESET
connection
The ESP8266 pins used by the EV-ADE9153ASHIELDZ are
described in Table 2.
Table 2. ESP8266 GPIO Connections
ESP8266 Pin
D5 (GPIO 14)
D6 (GPIO 12)
D7 (GPIO 13)
D0 (GPIO 16)
D4 (GPIO 2)
D1 (GPIO 5)
D2 (GPIO 4)
D3 (GPIO 0)
5 V
3.3 V

CURRENT SENSORS

The EV-ADE9153ASHIELDZ has an on-board, 1 mΩ shunt
resistor. The nominal current through the shunt is 5 A rms and
the maximum allowed current is 10 A rms with a programmable
gain amplifier (PGA) gain value of 16.

VOLTAGE SENSORS

The EV-ADE9153ASHIELDZ has on-board resistor dividers to
attenuate the incoming input voltage. The attenuation factor is
1001. Do not exceed a 240 V rms nominal line to neutral voltage.
Rev. 0 | Page 4 of 8
ADE9153A Signal Type
SCLK SPI
MISO SPI
MOSI SPI
SS (pulled up) SPI output
Output
RESET
IRQ Input
ZX/DREADY/CF2 Input
User button input Input
Not applicable Power
Not applicable Power
