LIBRARIES

The EVAL-ADE9153ASHIELD Arduino libraries provide basic
functions to access the ADE9153A. Use the calibration sketch to
calibrate the ADE9153A using an accurate source.

INSTALLING THE LIBRARIES

To install the libraries,
1. Download ADE9153AAPI.zip.

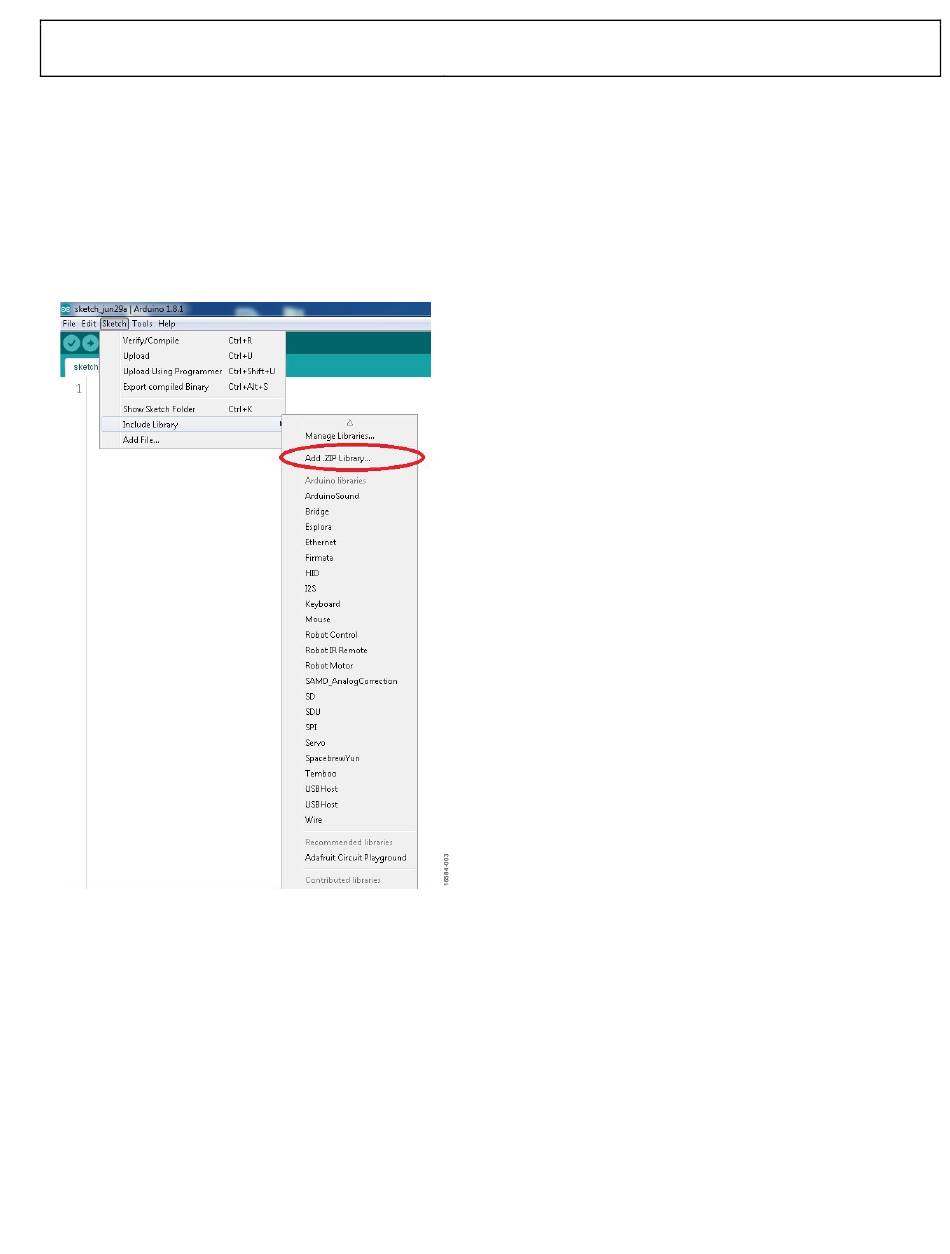

2. Install the ADE9153A Arduino library as shown in Figure 3.
Figure 3. Installing the Arduino Library
User Guide
Rev. 0 | Page 5 of 8
ADE9153A ARDUINO LIBRARY
ADE9153AAPI.cpp
The ADE9153AAPI.cpp file contains functions to communicate,
initialize, and read calculated parameters from the chip.
ADE9153AAPI.h
The ADE9153AAPI.h file contains register constants that are
written into the device by the set up
ADE9153A Application Examples
The application examples demonstrate the use of functions in
the ADE9153AAPI.cpp and ADE9153AAPI.h library files to
obtain the parameters calculated by the ADE9153A. Connect
Arduino Zero and compile and load the application examples to
start energy and power quality measurements.
UG-1253
ADE9153A function.
