Si041402EC

6. PCBs

Warning

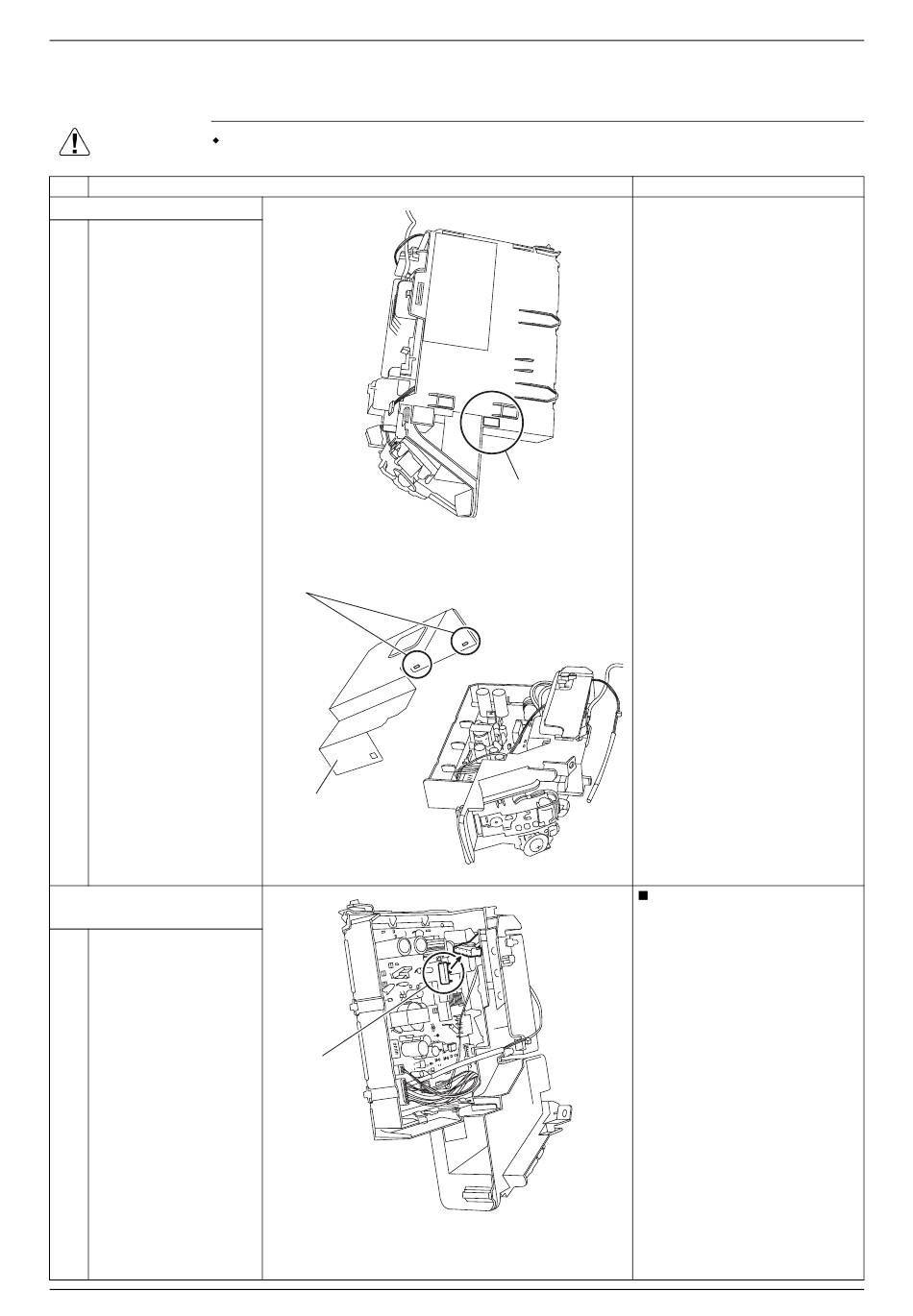

Step
1. Remove the shield plate.
1 Unfasten the hook on
the right side of the
electrical box.
2 Unfasten the 2 hooks
on the top and remove
the shield plate.
2. Remove the electrical box
cover.
1 Disconnect the
connector [S2] for the
terminal board.
Removal Procedure
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Hook
Shield plate
Connector(s)
Hook
(R20072)
(R23418)
Some models have [COMP],
[L] and [N] instead of [S2].
(R20074)
PCBs
Points
