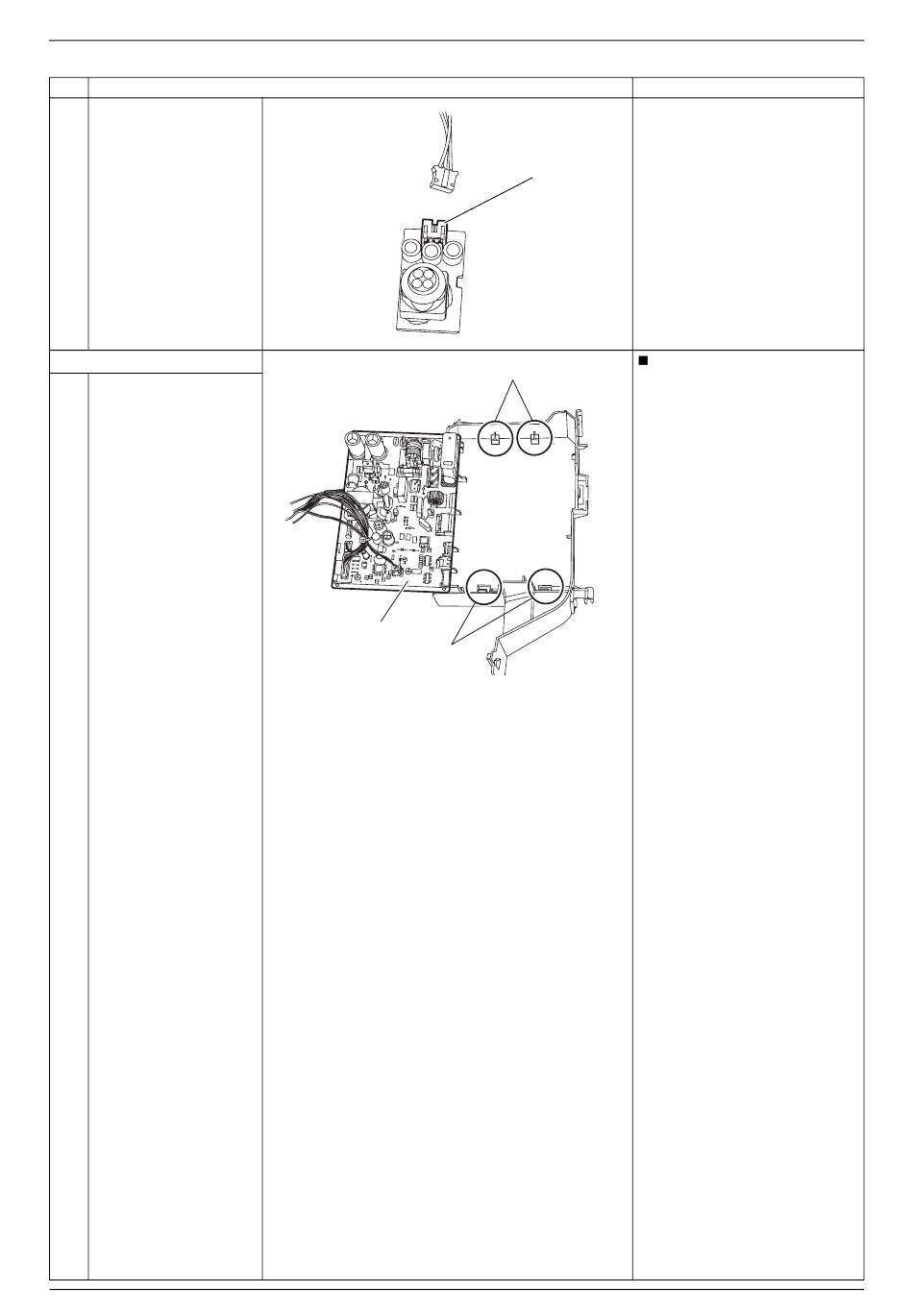

PCBs
Step
3
Disconnect the
connector [S36].
6. Remove the control PCB.
1
Unfasten the 2 lower
hooks.
2
Lift up the bottom of the
control PCB and pull it
out.
12
Procedure
Control PCB
Hook
[S36]: control PCB
[S36]
(R20082)
When reassembling the
Hook
control PCB, make sure the
2 upper hooks are also
securely fastened.
(R20083)
Si041402EC
Points
Removal Procedure
