Fan Motor / Fan Rotor

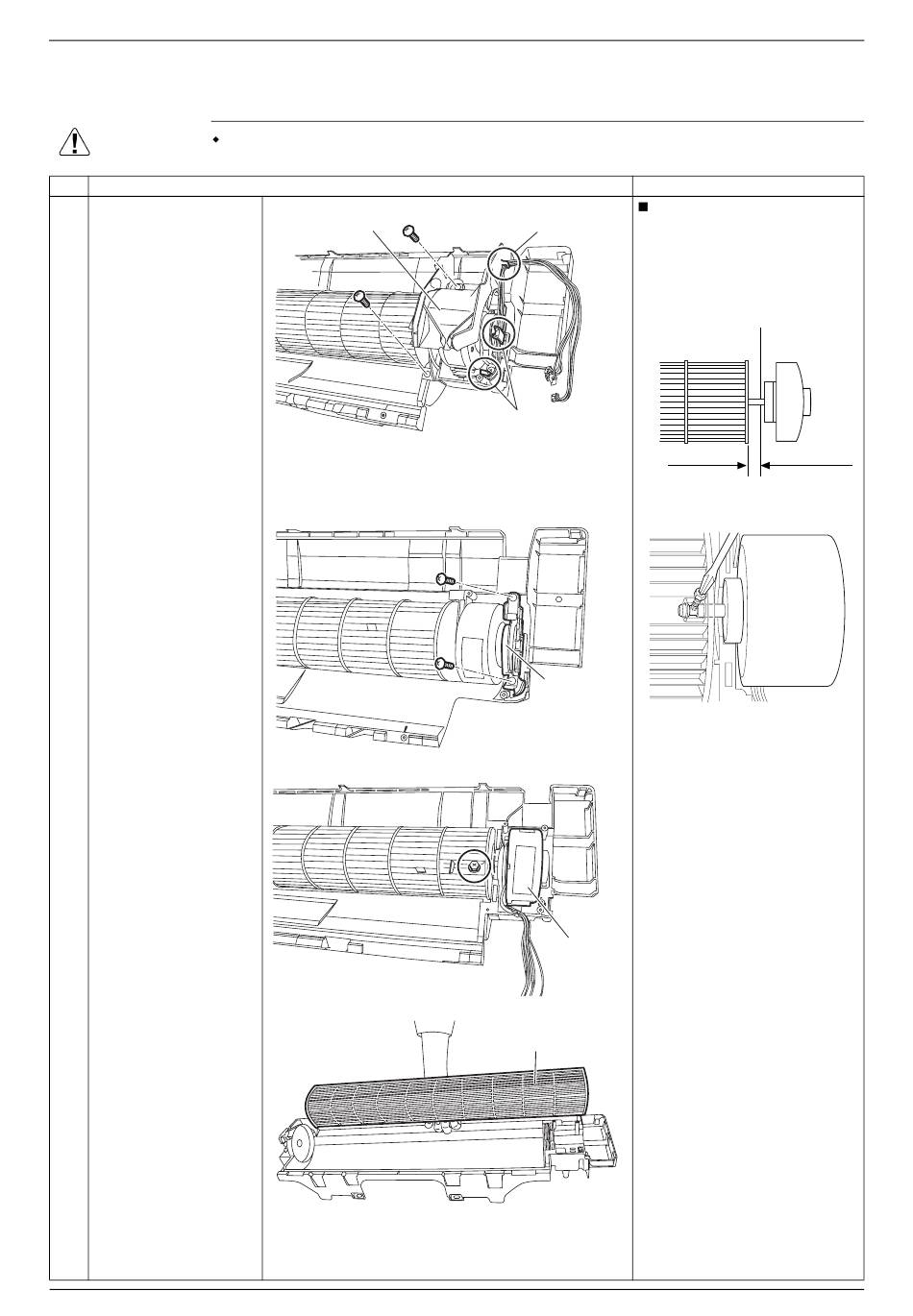

9. Fan Motor / Fan Rotor
Warning
Step
1 Remove the 2 screws
of the right side plate.
2 Release the fan motor
lead wire from the 3
hooks and remove the
right side plate.
3 Remove the 2 screws
of the fan motor fixing
plate.
4 Remove the fan motor
fixing plate.
5 Loosen the screw and
remove the fan motor
and the fan rotor.
16
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Right side plate
When reassembling the fan
Hook
motor and the fan rotor,
provide as much as 5 mm
(0.2 inch) of play between
the side face of the rotor and
the bottom frame.
Hook
(R20095)
Side face of rotor
Fan motor
fixing plate
(R20096)
(1) Insert the fan motor allowing
for approx. 5 mm (0.2 inch)
of play.
(2) Tighten the fan rotor screw
until it stops. Then give the
screw one more turn.
(3) If the fan rotor rotates
appropriately, tighten the
screw completely.
Fan motor
(4) If not, repeat the procedure
from (1).
(R20097)
Fan rotor
(R20098)
Si041402EC
Points
Side face of
bottom frame
5 mm (0.2 inch)
(R18879)
(R9582)
Removal Procedure
