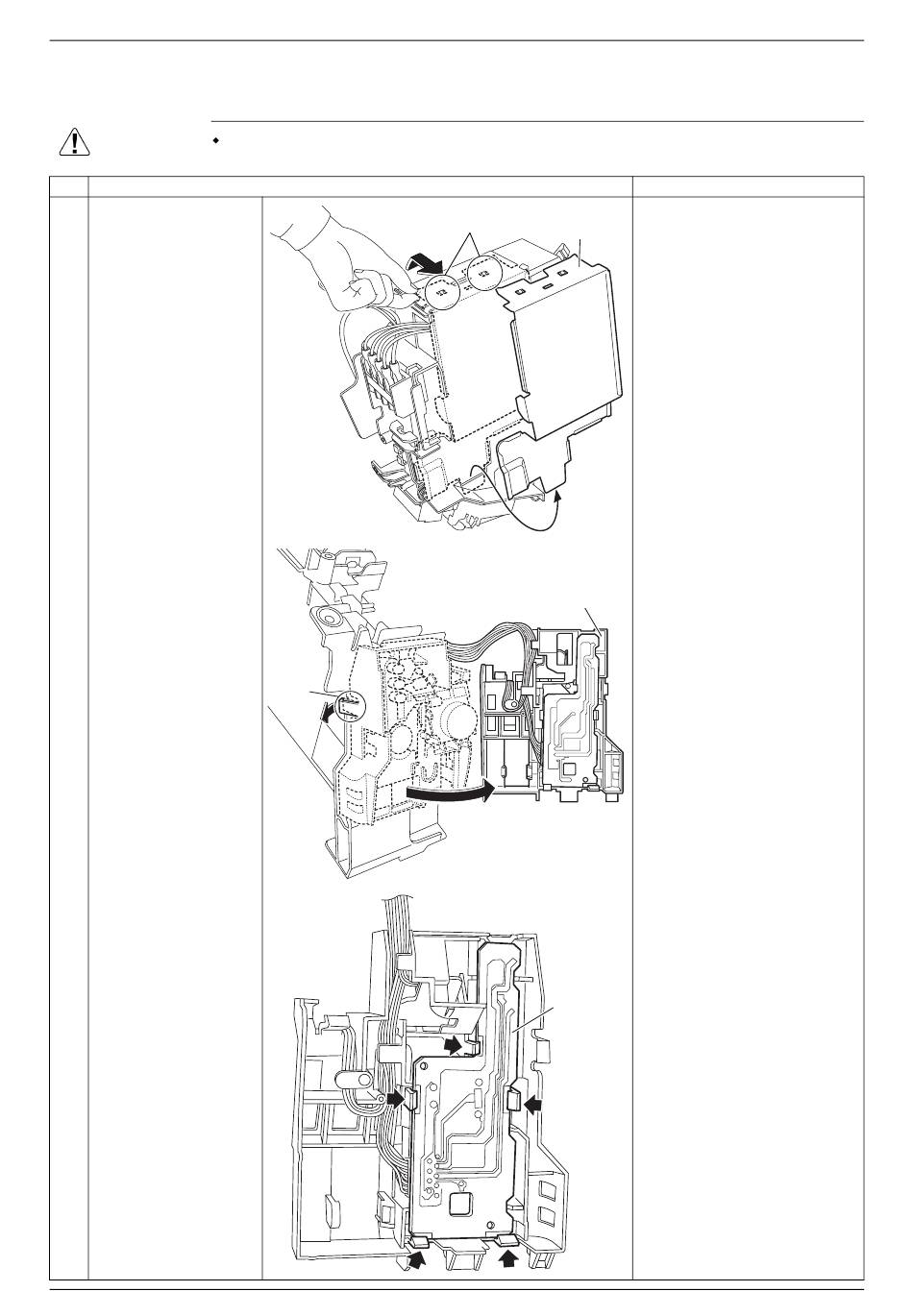

7. PCBs

Warning
Step
1 Unfasten the 2 hooks
on the top and remove
the shield plate.
2 Unfasten the hook and
remove the signal
receiver unit.
3 Unfasten the 5 hooks
and remove the display
PCB.
Removal Procedure
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Hook
Hook
Shield plate
(R17925)
Signal receiver unit
(R22554)
Display
PCB
(R11351)
PCBs
Points
9
