Si121561E

4. PCBs

Warning

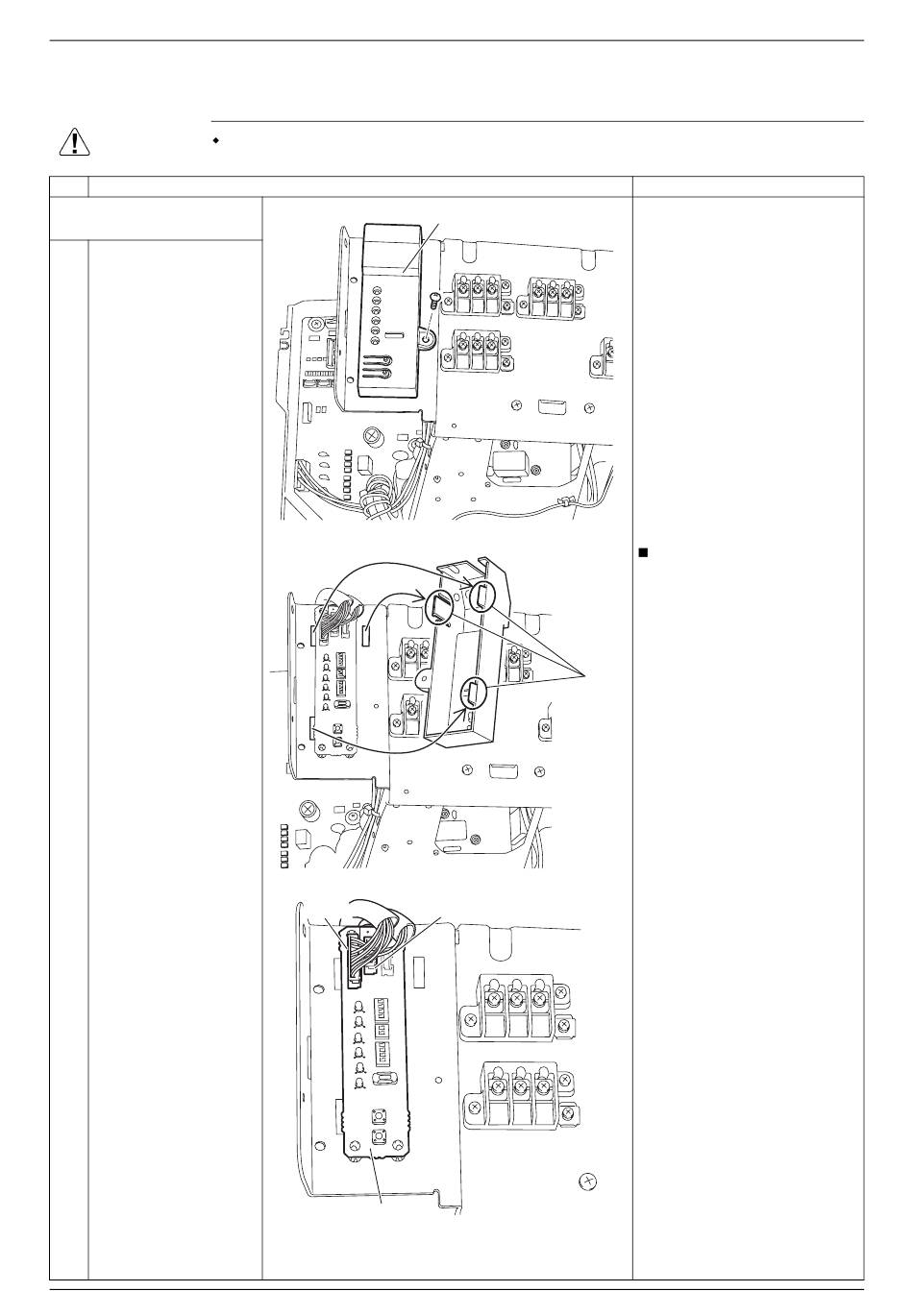

Step
1. Remove the service
monitor PCB.
1 Remove the screw of
the service monitor
PCB cover.
2 Unfasten the 3 hooks
and remove the service
monitor PCB cover.
3 Disconnect the 2
connectors [S501] and
[S502] from the service
monitor PCB.
Removal Procedure
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
[S501]
Service monitor PCB
Service monitor PCB cover
(R22475)
Hook
(R22476)
[S502]
(R22477)
Points
When reassembling, make
sure that the 3 hooks are
securely fastened.
[S501], [S502]: to main PCB
