Front Panel - Daikin ATC25QRV16 Service Manual

Si041402EC

2. Front Panel

Warning

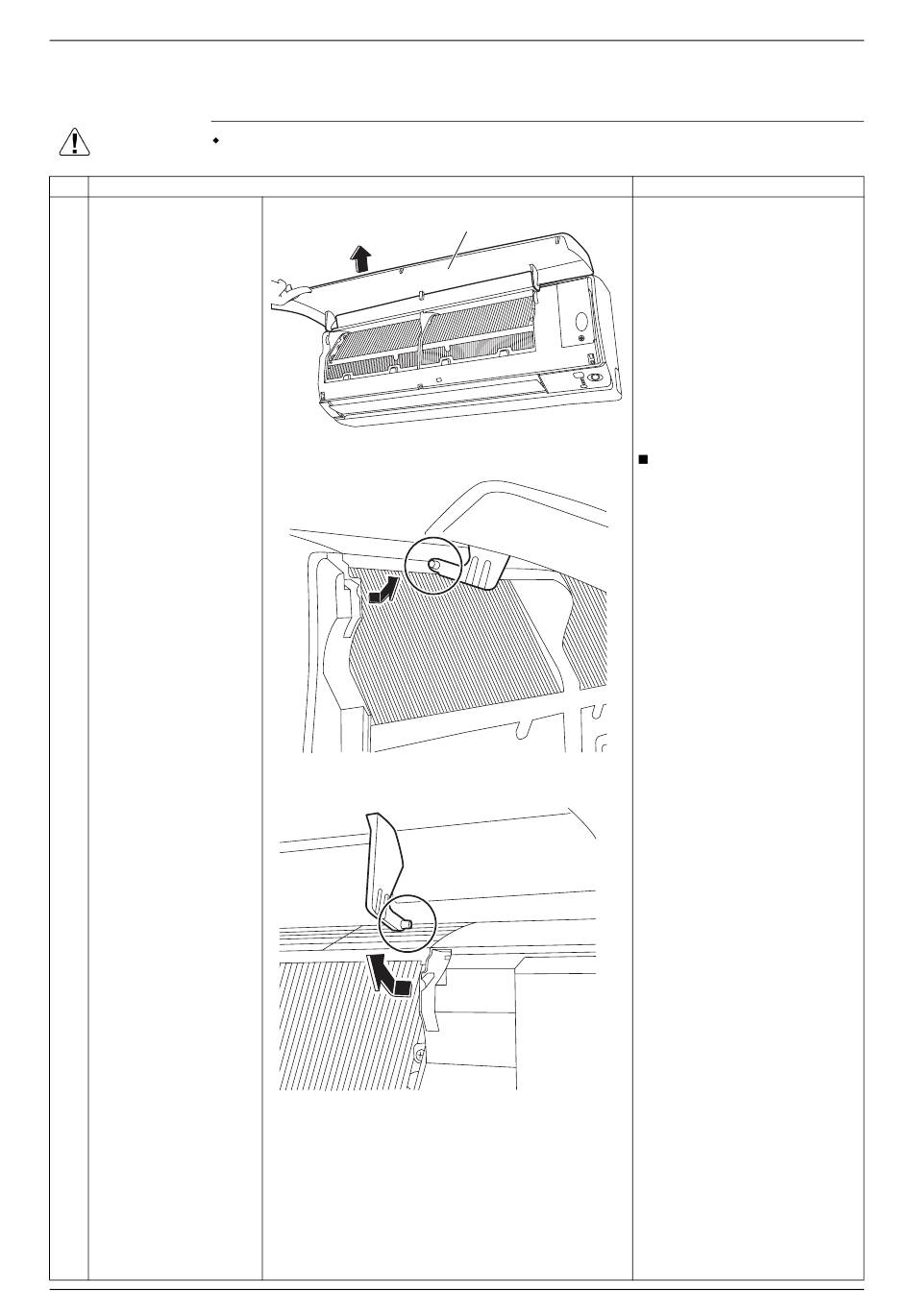

Step
1 Open the front panel
over the position where
it stops.
2 Slide the left shaft to the
right and release the
left shaft.
3 Remove the right shaft
in the same way.
4 Remove the front panel.
Removal Procedure
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Front panel
(R20053)
(R20054)
(R20055)
Front Panel
Points
When reassembling the front
panel, fit the right and left
shafts one by one into the
grooves and fully push them
into position.
