4. Horizontal Blade / Vertical Blade ASSYs

Warning
Step

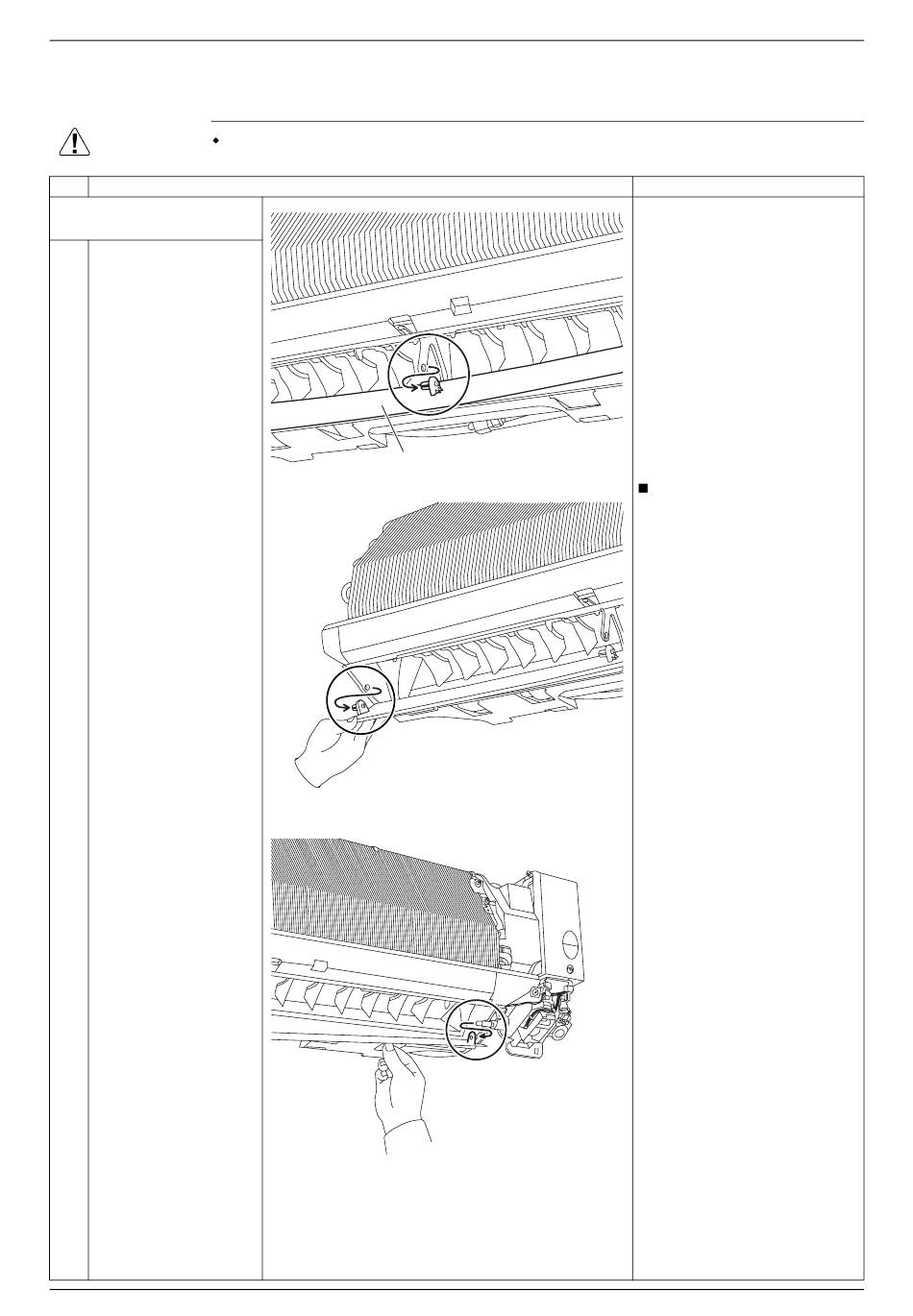

1. Remove the horizontal
blade.
1 Unfasten the center
shaft while bending the
horizontal blade
slightly.
2 Unfasten the left shaft.
3 Unfasten the right shaft
and remove the
horizontal blade.
Removal Procedure
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Horizontal blade
Horizontal Blade / Vertical Blade ASSYs
Points
(R22547)
Installation procedure
1. Fit the horizontal blade to the
right shaft first. Make sure to
rotate the horizontal blade so
the shaft fits correctly.
2. Fit the horizontal blade to the
center and left shafts.
(R20060)
(R20061)
