Si041402EC

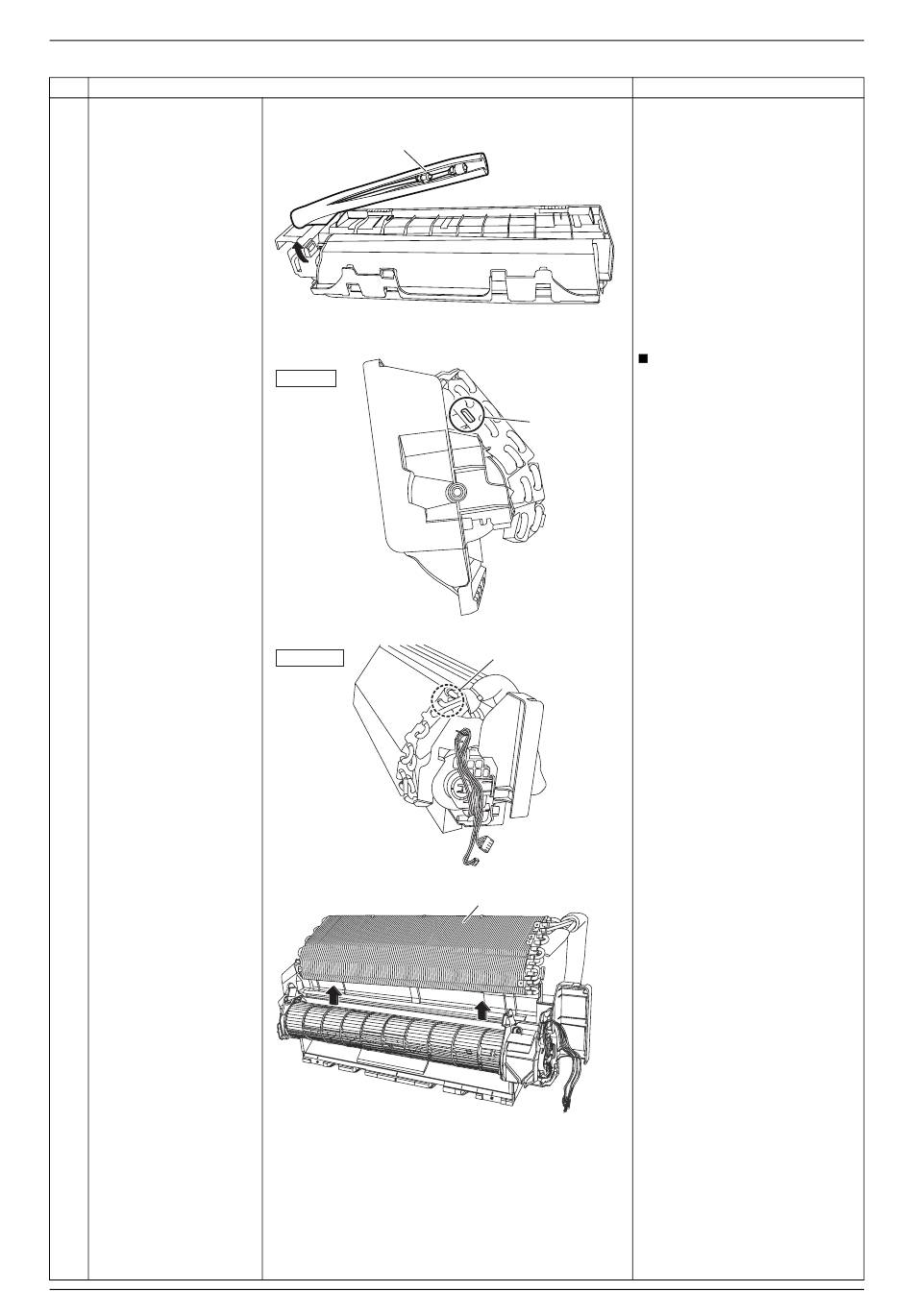

Step
5
Slightly pull out the
auxiliary piping.
6
Unfasten the left hook
with a flat screwdriver.
7
Unfasten the right hook.
8
Lift up and remove the
indoor heat exchanger.
Removal Procedure
Procedure
Auxiliary piping
Left view
Right view
(R23422)
Hook
(R23423)
Hook
(R23424)
Indoor heat exchanger
(R20094)
Indoor Heat Exchanger
Points
When reassembling the
indoor heat exchanger,
make sure that the hooks
are fastened.
15
