Installation of the spray chamber

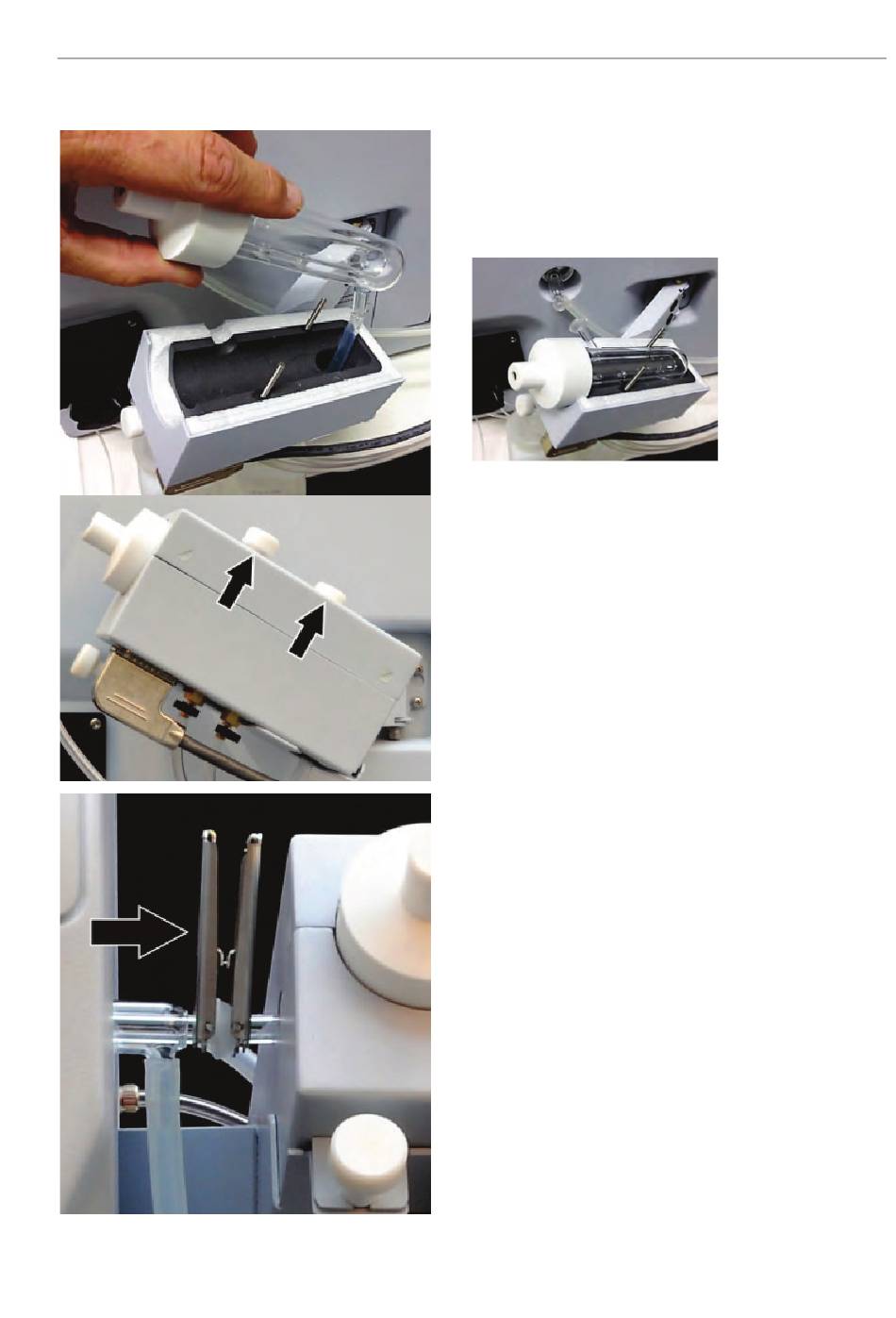

1. Attach a ~10cm piece of drain tubing to the waste

outlet at the bottom of the spray chamber.

2. Open the holder assembly. Place the spray

chamber into position in the lower half of the

holder assembly.

3. Place the top half of the holder assembly in

position over the spray chamber and secure it

using the two knurled knobs.

If the glass transfer tube is already in place:

4. Swing the mounting arm inward towards the

transfer tube.

5. Fit the spherical joint of the transfer tube into the

joint of the spray chamber and secure it using the

glassware clamp.

If the transfer tube is not in place, refer to the

installation instructions on the next page.
