UG-965
EVALUATION SOFTWARE
INSTALLING THE
EVAL-AD5313RDBZ
SOFTWARE
The
EVAL-AD5313RDBZ
evaluation software is compatible with
Windows® Vista (64-bit/32-bit), and Windows 7 (64-bit/32-bit).
Install the software before connecting the
board to the USB port of the PC to ensure that the
controller board is recognized when it connects to the PC.
To install the
EVAL-AD5313RDBZ
the following steps:
1.
Start the Windows operating system.
2.
Download the installation software from the
AD5313RDBZ
evaluation board page.
3.
Run the setup.exe file from the installer folder if it does not
open automatically.
4.
After the installation is complete, power up the evaluation
board as described in the Power Supplies section.
5.
Connect the
EVAL-AD5313RDBZ
board and the
SDP-B
controller board to the PC using the
USB cable included in the evaluation kit.
6.
When the software detects the EVAL-AD5313RDBZ,
proceed through any dialog boxes that appear to finalize
the installation.
RUNNING THE SOFTWARE
To run the
EVAL-AD5313RDBZ
with the following steps:
1.
Connect the
EVAL-AD5313RDBZ
board and connect the USB cable between the board and
the PC.
2.
Power up the
EVAL-AD5313RDBZ
Power Supplies section.
3.
Click Start > All Programs > Analog Devices > AD5313R
Evaluation Software to locate the evaluation board.
If the
SDP-B
controller board is not connected to the USB port
when the software launches, a connectivity error displays (see
Figure 2).
Connect the
SDP-B
controller board to the USB port of the PC
and wait a few seconds. When the
the
EVAL-AD5313RDBZ
daughter board are detected, the
display updates (see Figure 3).
EVALUATION
SDP-B
controller
SDP-B
evaluation software, take
EVAL-
to the
SDP-B
controller
evaluation software, proceed
to the
SDP-B
controller
as described in the
SDP-B
controller board and
Rev. A | Page 4 of 13
EVAL-AD5313RDBZ User Guide

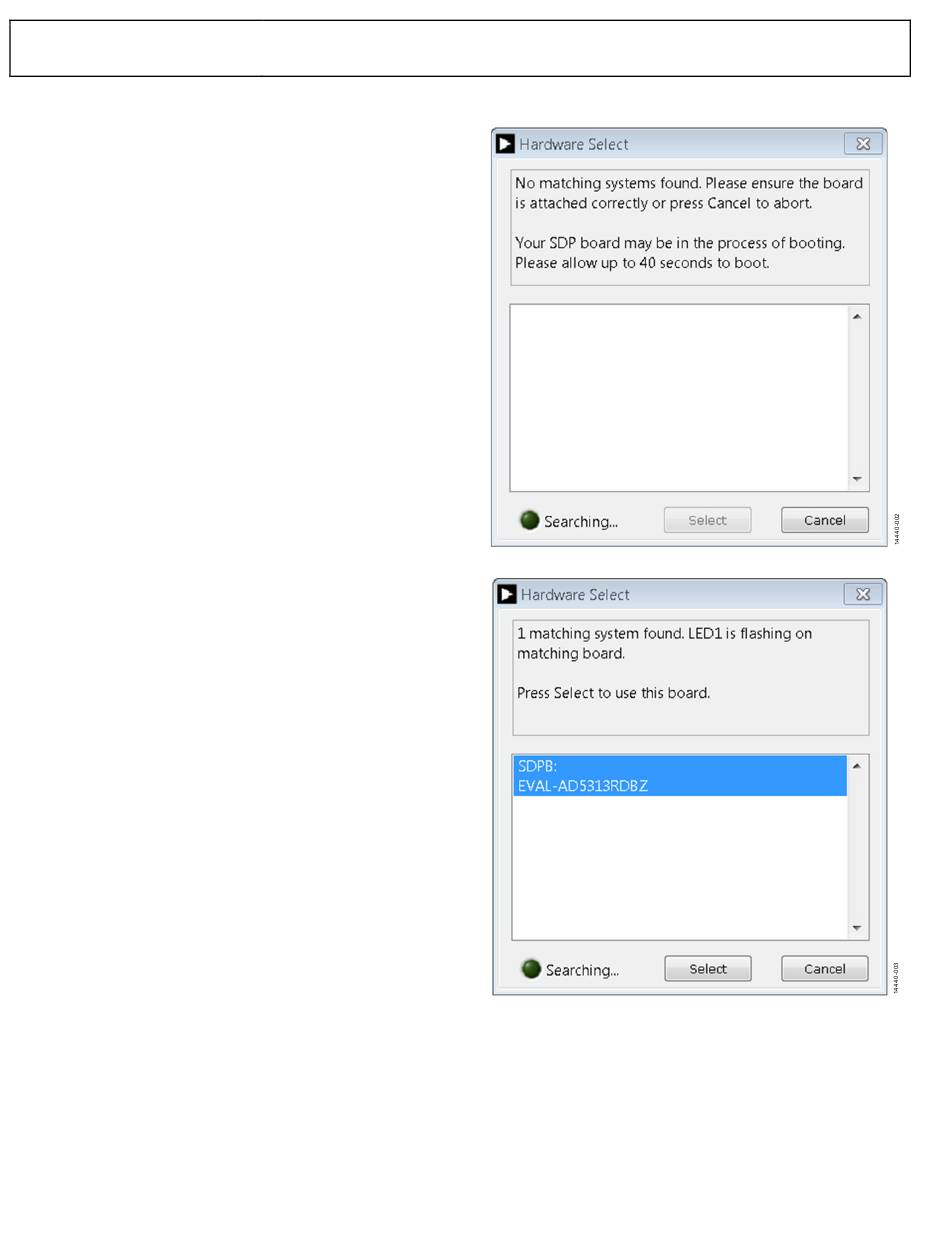

Figure 2. Connectivity Error
Figure 3. Hardware Select Window
