5.5

Setting the forming dimension

5.6

Forming travel limitation

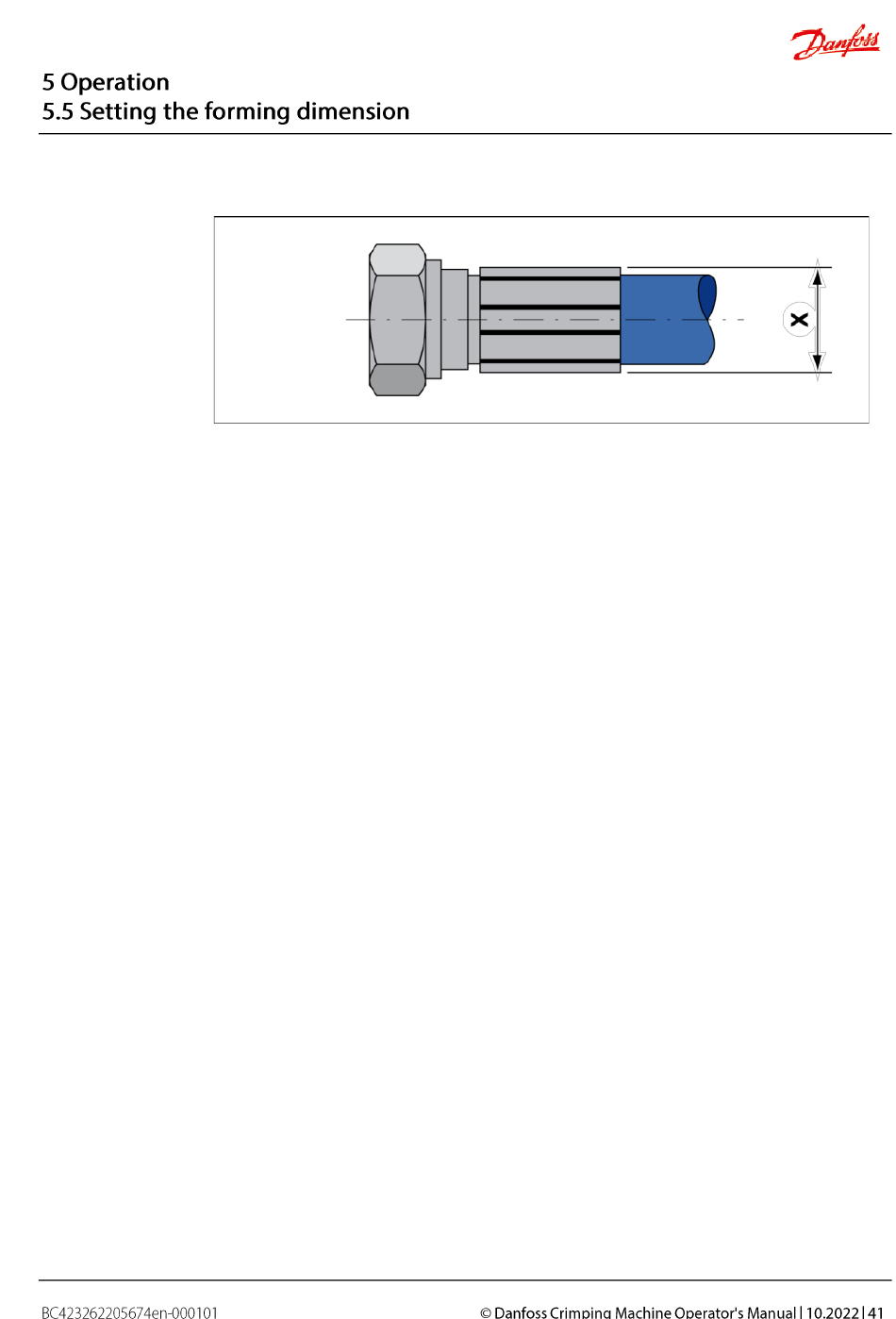

The forming dimension (X) must be set specifically for the workpiece.
1. Read the forming dimension in the forming dimension table of
the system supplier, e.g. Ø 17.4 mm.
2. Select crimping dies with a smaller or the same diameter, e.g.
Ø 17 mm,
3. Place the crimping dies in the tool.
4. Set the control and/or micrometer to the requested dimension:
Control system: Forming dimension diameter
Micrometer: Workpiece forming dimension less crimping die di-
ameter
5. Form the workpiece.
6. Check the workpiece.
7. If the dimension is reached: manufacture other identical workpie-
ces.
8. If the dimension is not reached: Adjust difference on control
and/or in the micrometer, repeat the forming process and check
the workpiece.
If the forming process is started outside the maximum forming range,
see "Technical data" in Section 3, the forming distance limitation is
activated and the machine stops, depending on the equipment. With
machines without any forming distance limitation, tools components
may be damaged if the forming range is exceeded.
