3

Machine description

3.1

Design and function

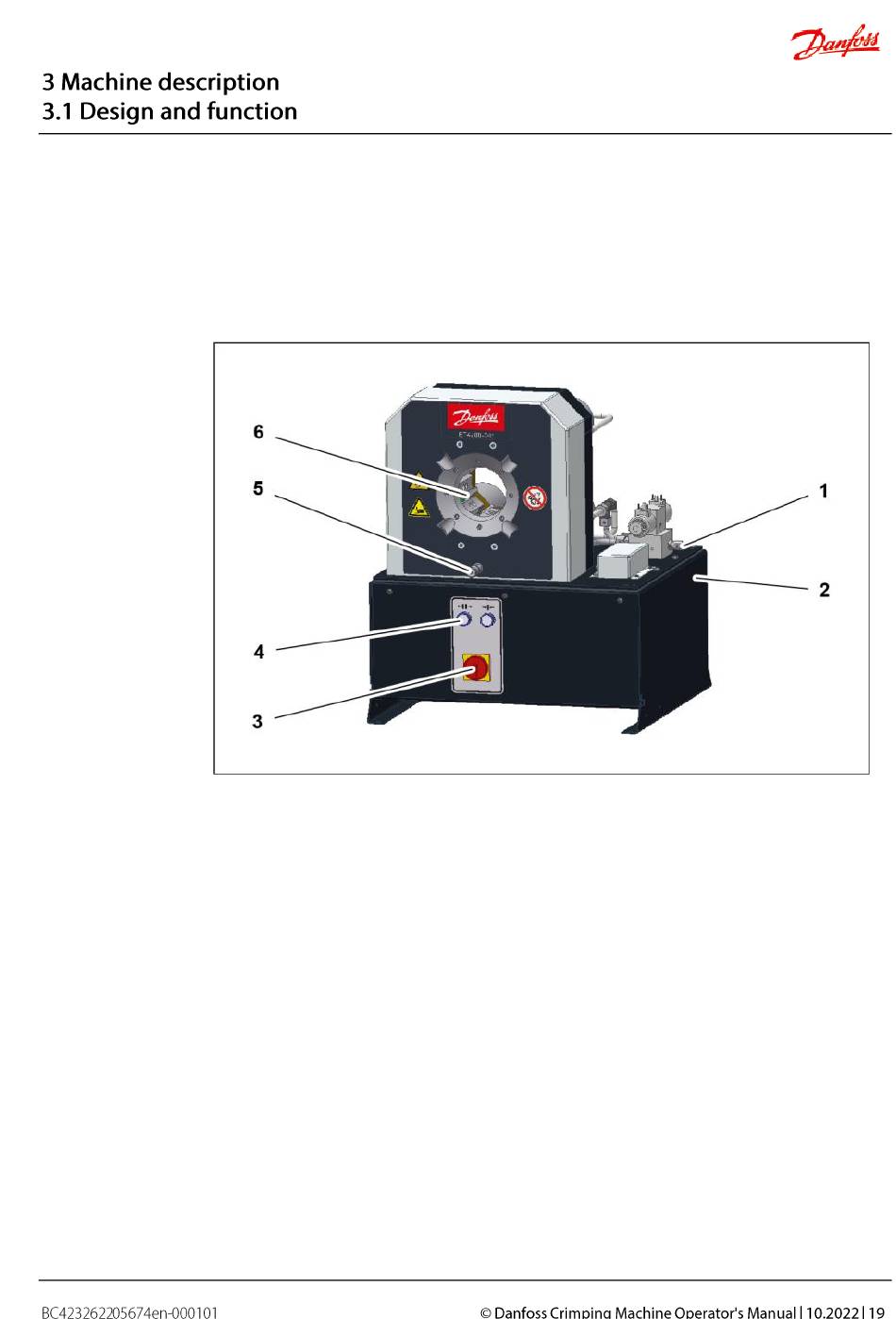

Base machine
(1) Manometer connection for pressure test (manometer measuring
range: 0 – 400 bar)
(2) Hydraulic tank (with electric motor, pump)
(3) Main switch/emergency-stop button
(4) Control panel
(5) Micrometer
(6) Crimping tool
The crimping tool (6) is closed hydraulically, whereby the work piece
is formed. The pressure needed for this purpose is generated in the
cylinders by the pump driven by the power unit.
The actual forming process is controlled via the buttons on the control
panel (4).
The micrometer (5) is used to change the final diameter of the die
system.
