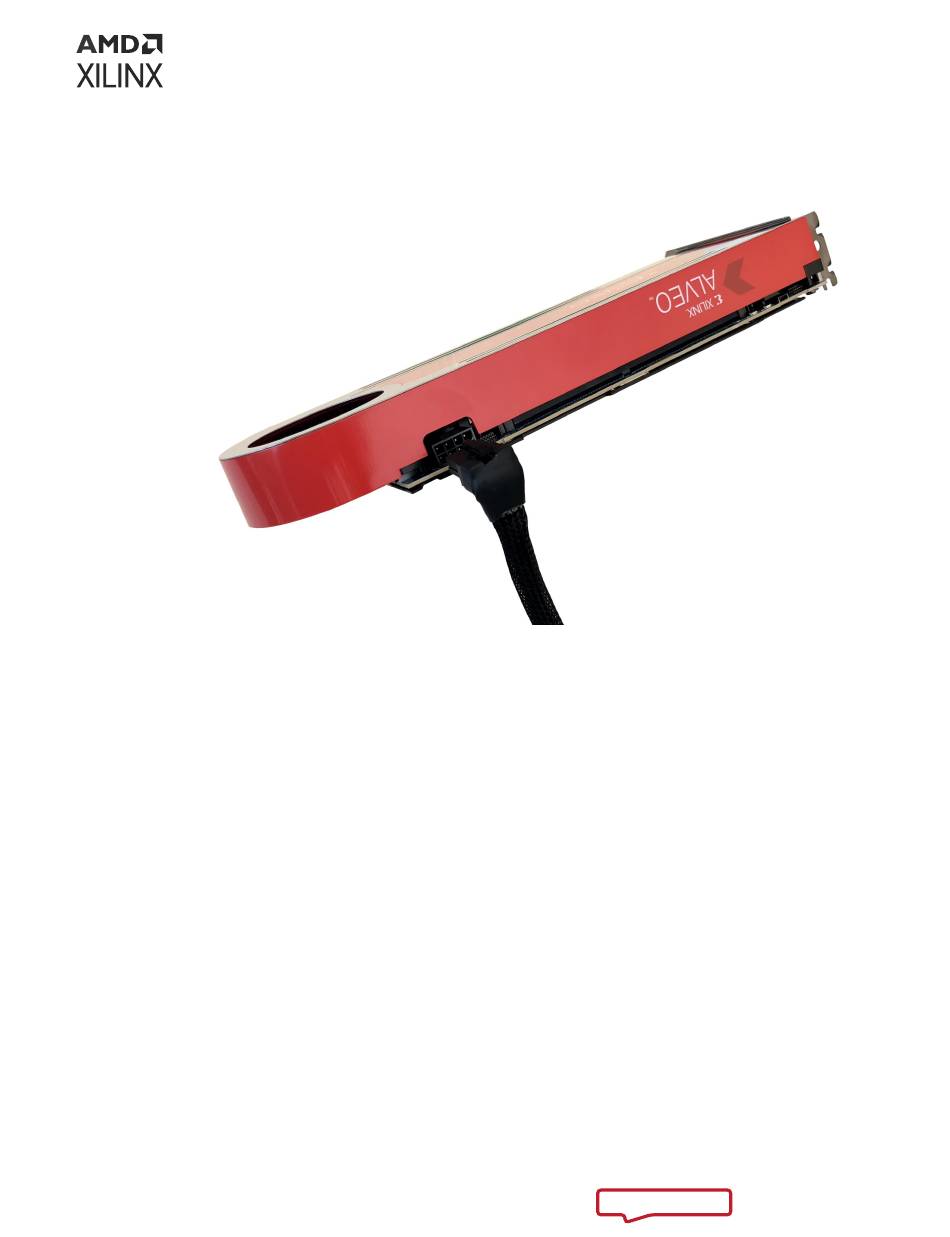

Figure 4: Connecting the Power Cable to Actively Cooled Cards
For passively cooled cards, connect the power cable to the AUX power connector at the side
of the card as shown in the following figure.
UG1301 (v2.2) August 19, 2022
Getting Started with Alveo Accelerator Cards
Chapter 3: Card Installation Procedures
www.xilinx.com
Send Feedback
14
