Xilinx Alveo U200 Getting Started page 7

• Two QSFP28 interfaces. Currently these interfaces are not supported by the deployment
platform.
• A micro-USB connector for maintenance purposes.
• A fan for the active cooled card configuration.
WARNING! Hazardous moving parts. Keep away from fan blades.
ATTENTION! Pièces mobiles peuvent etre dangereuses. Éloignez-vous des lames du ventilateur.
WARNUNG! Gefährliche bewegliche Teile. Halten sie sich von Lüfterflügeln fern.
Note: On the Alveo U280 card, the micro-USB is located on the opposite end of the card between the PCB
board and the enclosure.
UG1301 (v2.2) August 19, 2022
Getting Started with Alveo Accelerator Cards

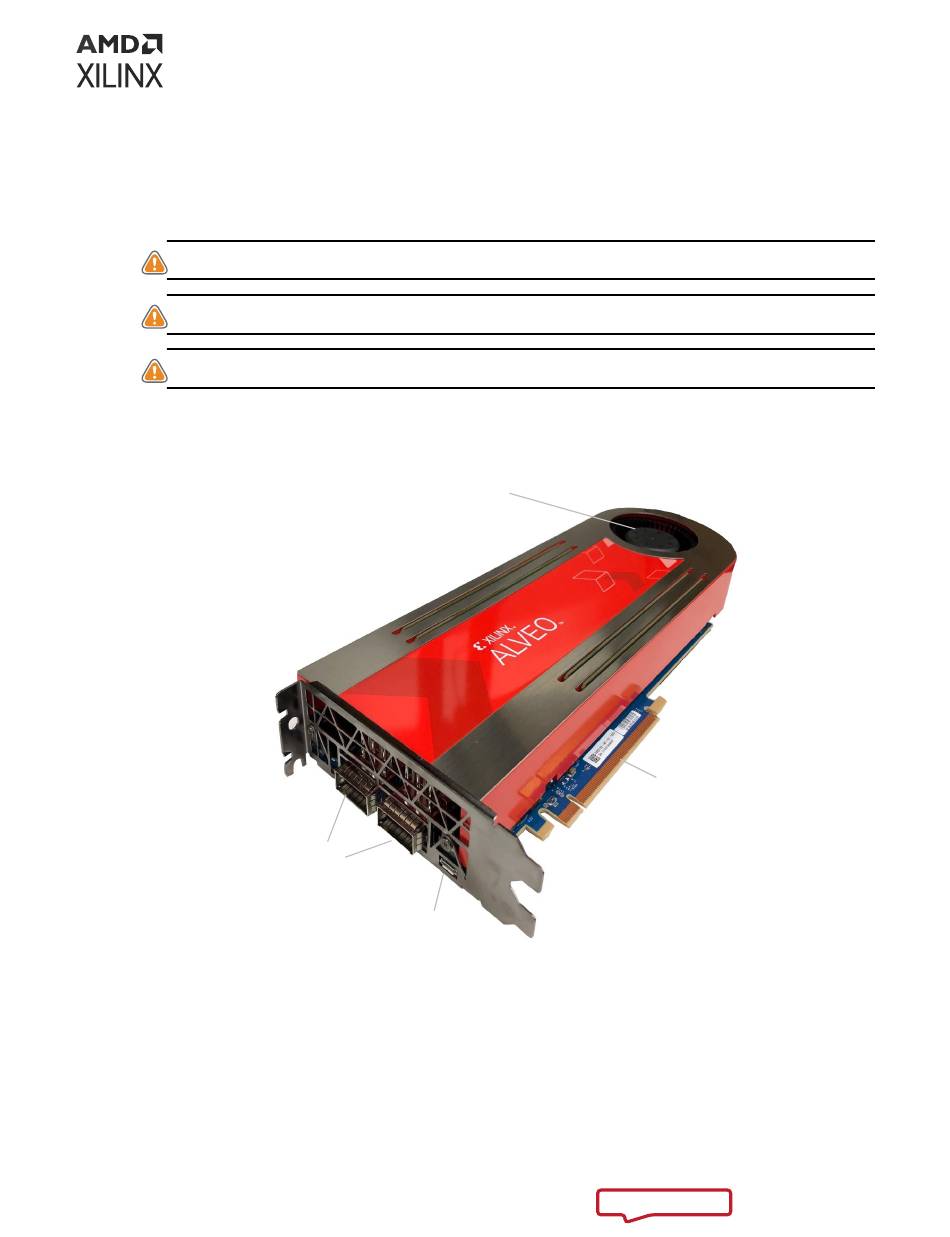

Figure 1: Alveo Card Features
(for Active configuration only)
Network
Interface
Micro-USB
Interface
Chapter 2: Accelerator Card Overview
Fan
Connector
Send Feedback
PCIe
www.xilinx.com
7
