Introduction
This document explains the details about:

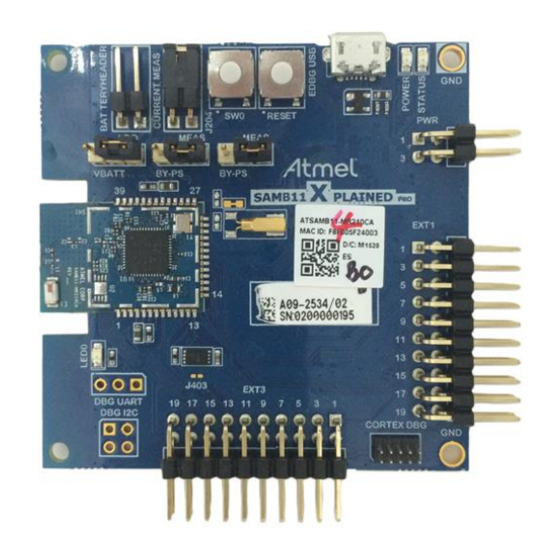

Getting started with the setup of ATSAMB11 Xplained board
How to use AT Command on ATSAMB11 Xplained board
Features
Reset the link layer
Set device configuration
Start scan
Stop scan
Atmel-42693A-ATSAMB11-BluSDK-SMART-AT-CMD-Getting-Started-Guide_UserGuide_032016
ATSAMB11 BluSDK SMART
AT Command - Getting Started Guide
USER GUIDE
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Atmel ATSAMB11 BluSDK SMART
Summary of Contents for Atmel ATSAMB11 BluSDK SMART
-

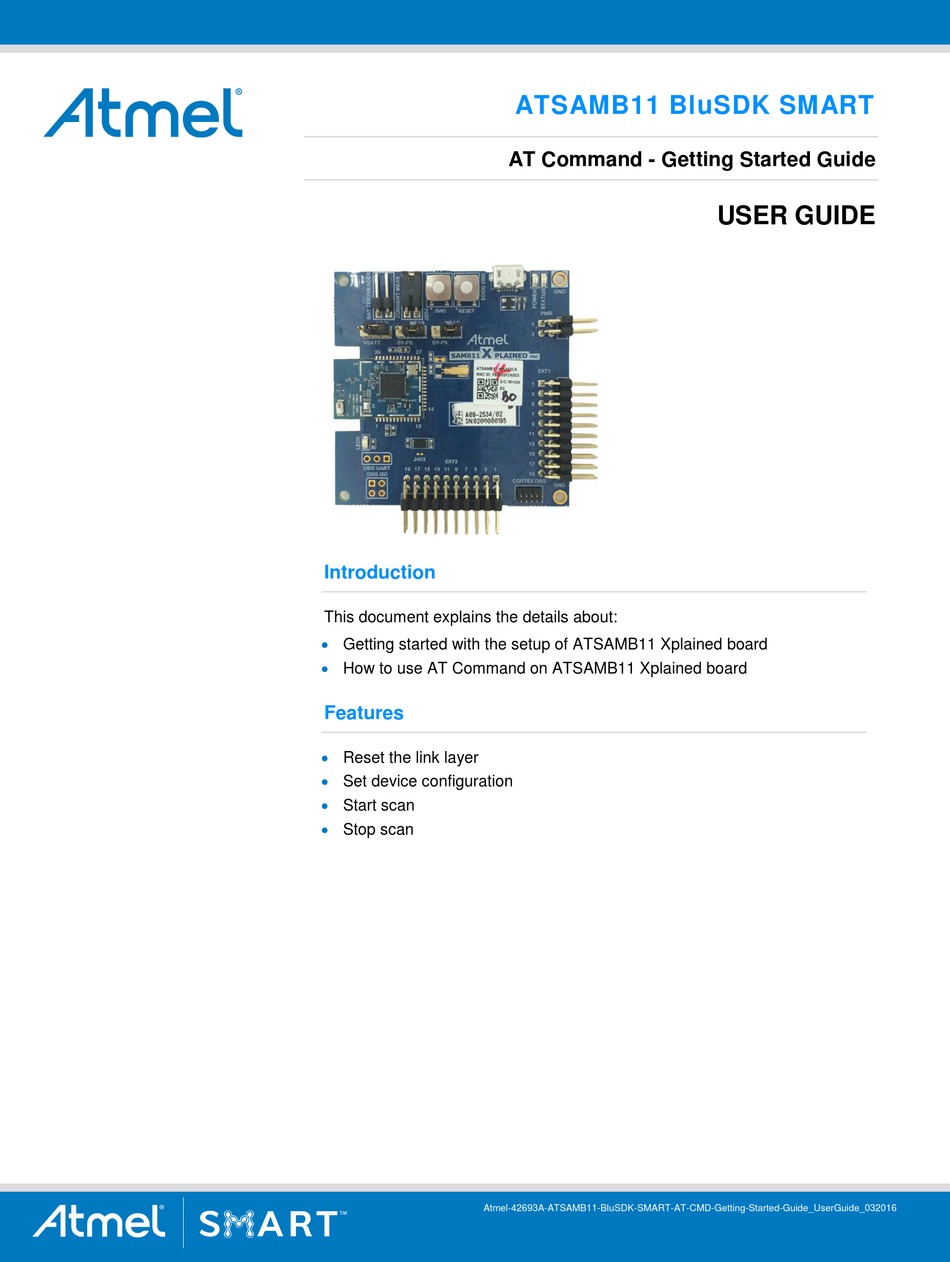

Page 1: Introduction
ATSAMB11 BluSDK SMART AT Command - Getting Started Guide USER GUIDE Introduction This document explains the details about: Getting started with the setup of ATSAMB11 Xplained board How to use AT Command on ATSAMB11 Xplained board Features ... -
Page 2: Table Of Contents
Build Procedure ............................. 6 Running the Demo ....................... 8 BluSDK SMART Software Architecture ..............10 ATMEL EVALUATION BOARD/KIT IMPORTANT NOTICE AND DISCLAIMER ..11 Revision History ......................12 ATSAMB11 BluSDK SMART – AT CMD – Getting Started Guide [USER GUIDE] Atmel-42693A-ATSAMB11-BluSDK-SMART-AT-CMD-Getting-Started-Guide_UserGuide_032016... -
Page 3: Purpose
Command Syntax Reset Reset the link layer AT+RESET Configuration Set device configuration AT+CFG_DEF Start Scan Start scan operation AT+SCAN Stop Scan Stop an ongoing scan operation AT+STOP ATSAMB11 BluSDK SMART – AT CMD – Getting Started Guide USER GUIDE Atmel-42693A-ATSAMB11-BluSDK-SMART-AT-CMD-Getting-Started-Guide_UserGuide_032016... -
Page 4: Demo Setup
Demo Setup Figure 2-1. Demo Setup of the AT CMD Application on ATSAMB11 BLE Link ATSAMB11 USB Cable AT Command Prompt ATSAMB11 BluSDK SMART – AT CMD – Getting Started Guide [USER GUIDE] Atmel-42693A-ATSAMB11-BluSDK-SMART-AT-CMD-Getting-Started-Guide_UserGuide_032016... -
Page 5: Hardware Setup
Hardware Setup Connect the ATSAMB11 board to the host PC using a Micro-USB cable. Figure 3-1. EDBG USB Port ATSAMB11 BluSDK SMART – AT CMD – Getting Started Guide USER GUIDE Atmel-42693A-ATSAMB11-BluSDK-SMART-AT-CMD-Getting-Started-Guide_UserGuide_032016... -
Page 6: Software Setup
Figure 4-1. Creating a New Example Project Select “SAMB11” in device family, enter “at cmd” in search window, and expand Atmel Corp Projects. The location and the name of the project can be selected in the respective fields. Click Figure 4-2. - Page 7 Inside the device programming the user has to select the correct configuration for the device and finally program the device by using the program button. Figure 4-5. Flash Programming Once the application is flashed, now AT CMD Application is ready for usage. ATSAMB11 BluSDK SMART – AT CMD – Getting Started Guide USER GUIDE Atmel-42693A-ATSAMB11-BluSDK-SMART-AT-CMD-Getting-Started-Guide_UserGuide_032016...
-
Page 8: Running The Demo
Searching for CMD handler... Processing...Reset Handler DONE CFG_DEF command Type “AT+CFG_DEF” and then press ‘Enter’ key. Figure 5-2. CFG_DEF command AT+CFG_DEF Searching for CMD handler... Processing... Config Handler DONE ATSAMB11 BluSDK SMART – AT CMD – Getting Started Guide [USER GUIDE] Atmel-42693A-ATSAMB11-BluSDK-SMART-AT-CMD-Getting-Started-Guide_UserGuide_032016... - Page 9 : 0x00 RSSI : -76 STOP command Type “AT+STOP” and then press ‘Enter’ key. Figure 5-4. STOP command AT+STOP Searching for CMD handler... Processing... Stop Handler DONE ATSAMB11 BluSDK SMART – AT CMD – Getting Started Guide USER GUIDE Atmel-42693A-ATSAMB11-BluSDK-SMART-AT-CMD-Getting-Started-Guide_UserGuide_032016...
-
Page 10: Blusdk Smart Software Architecture
BluSDK SMART Software Architecture Figure 6-1 illustrates the top level diagram for the BLU-SDK SMART configuration. Figure 6-1. ATSAMB11 Software Architecture ATSAMB11 BluSDK SMART – AT CMD – Getting Started Guide [USER GUIDE] Atmel-42693A-ATSAMB11-BluSDK-SMART-AT-CMD-Getting-Started-Guide_UserGuide_032016... -
Page 11: Atmel Evaluation Board/Kit Important Notice And Disclaimer
User indemnifies Atmel from any claim arising from user's handling or use of this evaluation board/kit. Except for the limited purpose of internal development and evaluation as specified above, no license, express or implied, by estoppel or otherwise, to any Atmel intellectual property right is granted hereunder. -
Page 12: Revision History
Revision History Doc Rev. Date Comments 42693A 03/2016 Initial document release. ATSAMB11 BluSDK SMART – AT CMD – Getting Started Guide [USER GUIDE] Atmel-42693A-ATSAMB11-BluSDK-SMART-AT-CMD-Getting-Started-Guide_UserGuide_032016... - Page 13 DISCLAIMER: The information in this document is provided in connection with Atmel products. No license, express or implied, b y estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN THE ATMEL TERMS AND COND ITIONS OF SALES LOCATED ON THE ATMEL WEBSITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON -INFRINGEMENT.
