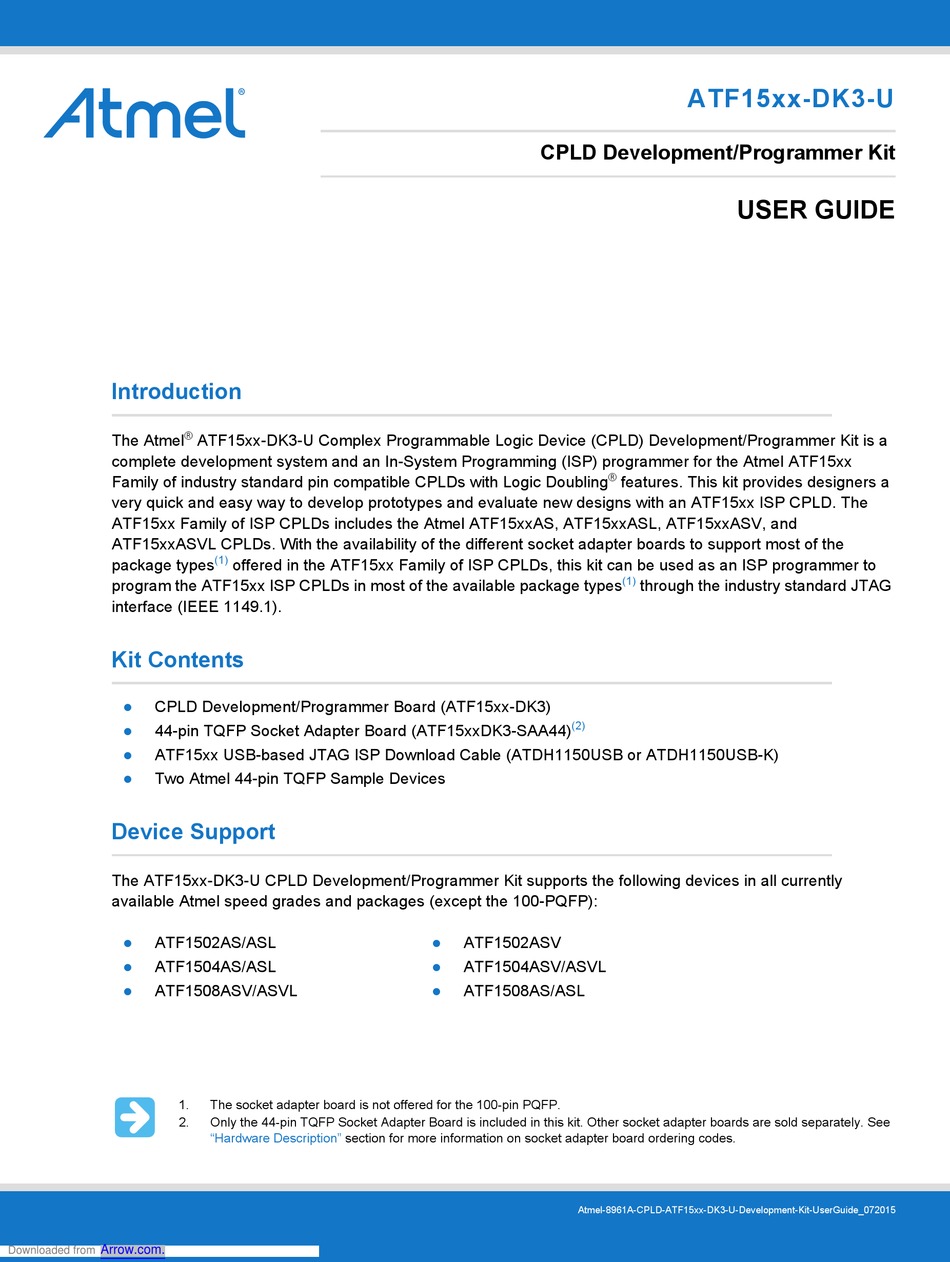

Atmel ATF15 DK3-U Series User Manual

Introduction
®
The Atmel
complete development system and an In-System Programming (ISP) programmer for the Atmel ATF15xx
Family of industry standard pin compatible CPLDs with Logic Doubling
very quick and easy way to develop prototypes and evaluate new designs with an ATF15xx ISP CPLD. The
ATF15xx Family of ISP CPLDs includes the Atmel ATF15xxAS, ATF15xxASL, ATF15xxASV, and
ATF15xxASVL CPLDs. With the availability of the different socket adapter boards to support most of the
package types
program the ATF15xx ISP CPLDs in most of the available package types
interface (IEEE 1149.1).
Kit Contents
CPLD Development/Programmer Board (ATF15xx-DK3)

44-pin TQFP Socket Adapter Board (ATF15xxDK3-SAA44)

ATF15xx USB-based JTAG ISP Download Cable (ATDH1150USB or ATDH1150USB-K)

Two Atmel 44-pin TQFP Sample Devices

Device Support
The ATF15xx-DK3-U CPLD Development/Programmer Kit supports the following devices in all currently
available Atmel speed grades and packages (except the 100-PQFP):
ATF1502AS/ASL

ATF1504AS/ASL

ATF1508ASV/ASVL

1.
2.
Arrow.com.
Downloaded from
ATF15xx-DK3-U Complex Programmable Logic Device (CPLD) Development/Programmer Kit is a
(1)
offered in the ATF15xx Family of ISP CPLDs, this kit can be used as an ISP programmer to
The socket adapter board is not offered for the 100-pin PQFP.
Only the 44-pin TQFP Socket Adapter Board is included in this kit. Other socket adapter boards are sold separately. See
"Hardware Description" section for more information on socket adapter board ordering codes.
CPLD Development/Programmer Kit
®
(2)
ATF1502ASV

ATF1504ASV/ASVL

ATF1508AS/ASL

Atmel-8961A-CPLD-ATF15xx-DK3-U-Development-Kit-UserGuide_072015
ATF15xx-DK3-U
USER GUIDE
features. This kit provides designers a
(1)
through the industry standard JTAG
