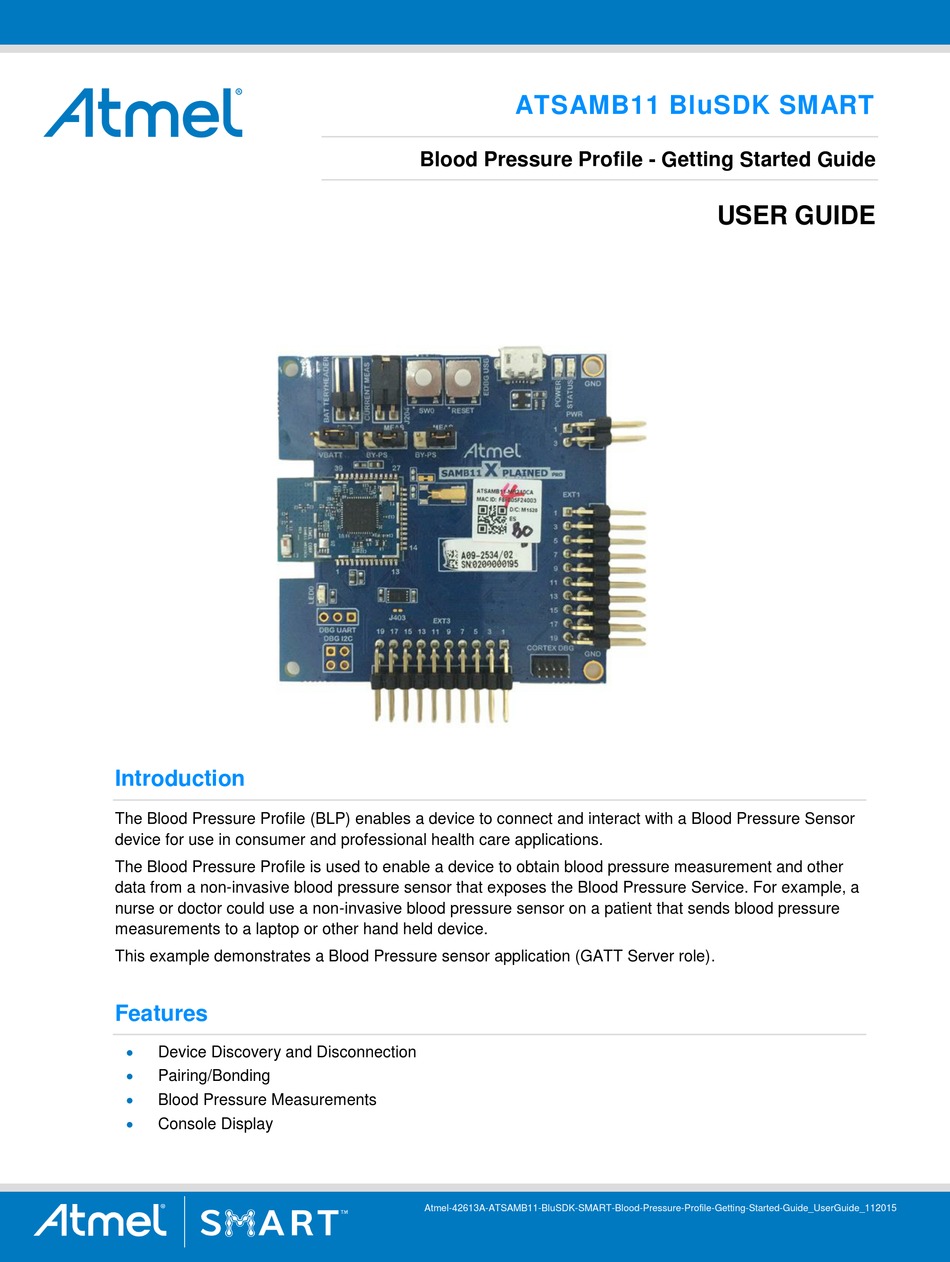

Introduction
The Blood Pressure Profile (BLP) enables a device to connect and interact with a Blood Pressure Sensor
device for use in consumer and professional health care applications.
The Blood Pressure Profile is used to enable a device to obtain blood pressure measurement and other
data from a non-invasive blood pressure sensor that exposes the Blood Pressure Service. For example, a
nurse or doctor could use a non-invasive blood pressure sensor on a patient that sends blood pressure
measurements to a laptop or other hand held device.
This example demonstrates a Blood Pressure sensor application (GATT Server role).
Features
Device Discovery and Disconnection
Pairing/Bonding
Blood Pressure Measurements
Console Display
ATSAMB11 BluSDK SMART
Blood Pressure Profile - Getting Started Guide
Atmel-42613A-ATSAMB11-BluSDK-SMART-Blood-Pressure-Profile-Getting-Started-Guide_UserGuide_112015
USER GUIDE
Advertisement
Table of Contents
Related Manuals for Atmel BluSDK SMART ATSAMB11
Summary of Contents for Atmel BluSDK SMART ATSAMB11
- Page 1 This example demonstrates a Blood Pressure sensor application (GATT Server role). Features Device Discovery and Disconnection Pairing/Bonding Blood Pressure Measurements Console Display Atmel-42613A-ATSAMB11-BluSDK-SMART-Blood-Pressure-Profile-Getting-Started-Guide_UserGuide_112015...
-
Page 2: Table Of Contents
Console Logging ......................7 Running the Demo ....................... 8 BluSDK SMART Software Architecture ..............12 ATMEL EVALUATION BOARD/KIT IMPORTANT NOTICE AND DISCLAIMER ..13 10 Revision History ......................14 ATSAMB11 BluSDK SMART – Blood Pressure Profile – Getting Started Guide [USER GUIDE... -
Page 3: Purpose
Purpose ® This getting started guide describes the setup of an Atmel ATSAMB11 Xplained board and bringing up an example profile supplied as part of the BluSDK SMART release. The Bluetooth ® Blood Pressure Profile is an example application that is embedded as part of the software release package. -
Page 4: Blood Pressure Measurements
The Blood Pressure Feature characteristic shall be used to describe the supported features of the Blood Pressure Sensor ATSAMB11 simulates a Blood Pressure Sensor (GATT Server Role) and sends simulated values to the Blood Pressure Monitor (SmartConnect mobile application). ATSAMB11 BluSDK SMART – Blood Pressure Profile – Getting Started Guide [USER GUIDE Atmel-42613A-ATSAMB11-BluSDK-SMART-Blood-Pressure-Profile-Getting-Started-Guide_UserGuide_112015... -
Page 5: Software Setup
Click OK. Figure 5-2. Selecting Blood Pressure Application from Example Projects Accept the license Agreement. The Atmel studio will generate the Blood Pressure Profile project for ATSAMB11. Build the solution. ATSAMB11 BluSDK SMART – Blood Pressure Profile – Getting Started Guide... - Page 6 Figure 5-5. Flash the Blood Pressure Application Once the application is flashed, the Blood Pressure application is ready for usage. ATSAMB11 BluSDK SMART – Blood Pressure Profile – Getting Started Guide [USER GUIDE Atmel-42613A-ATSAMB11-BluSDK-SMART-Blood-Pressure-Profile-Getting-Started-Guide_UserGuide_112015...
-
Page 7: Console Logging
(for example TeraTerm) shall be opened and attached to the corresponding COM port enumerated on the PC by the device. Baud rate should be set at 115200. ATSAMB11 BluSDK SMART – Blood Pressure Profile – Getting Started Guide [ USER GUIDE ] Atmel-42613A-ATSAMB11-BluSDK-SMART-Blood-Pressure-Profile-Getting-Started-Guide_UserGuide_112015... -
Page 8: Running The Demo
BD Address:0xF8F005F23FFF, Address Type:0 Device is in Advertising Mode On the iPhone, enable Bluetooth in the Settings page. Use the Atmel SmartConnect mobile app and scan for devices. ATMEL-BLP will be appear amongst the devices scanned. Click on ATMEL- BLP to connect to the ATSAMB11 device. - Page 9 Pairing procedure completed successfully Once the device is connected, the following services shall be displayed on the mobile app. Figure 7-4. Discovery of Services for BLP Application ATSAMB11 BluSDK SMART – Blood Pressure Profile – Getting Started Guide [ USER GUIDE ] Atmel-42613A-ATSAMB11-BluSDK-SMART-Blood-Pressure-Profile-Getting-Started-Guide_UserGuide_112015...
- Page 10 Cuff pressure 88 mmhg The Blood Pressure Values are: Systolic 81 mmhg Diastolic 61 mmhg 71 mmhg Pulserate 61 bpm Press the button to receive the blood pressure parameters ATSAMB11 BluSDK SMART – Blood Pressure Profile – Getting Started Guide [USER GUIDE Atmel-42613A-ATSAMB11-BluSDK-SMART-Blood-Pressure-Profile-Getting-Started-Guide_UserGuide_112015...
- Page 11 Mobile Application Blood Pressure Measurements Note: The Atmel SmartConnect mobile App for Android also implements the same features and provides the same look and feel. Henceforth incase a BLE compatible Android phone is used, the demo instructions from the mobile app perspective remain the same as above.
-
Page 12: Blusdk Smart Software Architecture
BluSDK SMART Software Architecture Figure 8-1 illustrates the top level diagram for the ATSAMB11 configuration. Figure 8-1. ATSAMB11 Software Architecture ATSAMB11 BluSDK SMART – Blood Pressure Profile – Getting Started Guide [USER GUIDE Atmel-42613A-ATSAMB11-BluSDK-SMART-Blood-Pressure-Profile-Getting-Started-Guide_UserGuide_112015... -
Page 13: Atmel Evaluation Board/Kit Important Notice And Disclaimer
User indemnifies Atmel from any claim arising from user's handling or use of this evaluation board/kit. Except for the limited purpose of internal development and evaluation as specified above, no license, express or implied, by estoppel or otherwise, to any Atmel intellectual property right is granted hereunder. -
Page 14: Revision History
Revision History Doc Rev. Date Comments 42613A 11/2015 Initial document release. ATSAMB11 BluSDK SMART – Blood Pressure Profile – Getting Started Guide [USER GUIDE Atmel-42613A-ATSAMB11-BluSDK-SMART-Blood-Pressure-Profile-Getting-Started-Guide_UserGuide_112015... - Page 15 DISCLAIMER: The information in this document is provided in connection with Atmel products. No license, express or implied, b y estoppel or otherwise, to any intellectual property right is granted by this document or in connection with the sale of Atmel products. EXCEPT AS SET FORTH IN THE ATMEL TERMS AND CONDITIONS OF SALES LOCATED ON THE ATMEL WEBSITE, ATMEL ASSUMES NO LIABILITY WHATSOEVER AND DISCLAIMS ANY EXPRESS, IMPLIED OR STATUTORY WARRANTY RELATING TO ITS PRODUCTS INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTY OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, OR NON -INFRINGEMENT.
