SYSTEM OVERVIEW: IV-COMPACT VENTILATION DEVICE

2 System overview: iV-Compact ventilation device
The iV-Compact ventilation system is designed to ventilate living rooms and bedrooms in single-
and multi-family houses, hotels and guest houses, rooms in public facilities and work rooms in office
buildings. It is suitable for installation in new buildings as well as for retrofitting in old buildings. This
is a special solution for buildings with very thin external walls, e.g. if no insulation system is fitted
due to structural conditions.
The ventilation device consists of a wall sleeve in which the thermal accumulator insert is mounted.
A lockable inner cover conceals the iV-Compact discreetly from the interior. The filter integrated
into the inner cover ensures that no pollen or dust from outside enters the interior. Outside, a freely
selectable closure conceals the components of the ventilation device.
The thermal accumulator insert includes a ceramic thermal accumulator and inVENTron, two guid-
ing vane elements and the Xenion reversible fan. The guiding vanes on both sides of the fan serve
to straighten the air flow and ensure more efficient flow through the thermal accumulator. The
unique geometry of the Xenion reversible fan effectively reduces sound transmission.
The standard length of the wall sleeve is 230 mm. For thicker walls, a wall sleeve with a length of
285 mm or 495 mm can be ordered. Both versions can be shortened on site.
The ventilation device is controlled via one of the following inVENTer system controllers
• Pure
• sMove
Components
• Inner cover incl. ISO coarse 60 % filter
• Thermal accumulator insert (thermal
accumulator and inVENTron Slim)
• Wall sleeve
• Exterior closure
Versions
iV-Compact ventilation devices with Compact or
Compact XL driving rain-proof weather protection hood (grey/white/anthracite), inVENTron Slim
double air guide vane and ceramic thermal accumulator of 100 mm length. The ventilation device
is particularly suitable for very thin external walls.
The operating instructions for the controller are not part of this documentation.
1)
In connection with the inVENTer Connect controller platform, it is mandatory to use the Connect inner cover.
2)
8
8
:
1)
• inVENTer Connect
2)
• MZ-Home
• Pollen and activated carbon filter (op-
tional)
• Sound and wind protection accessories
(optional)
iV-Compact ventilation device | Installation instructions
2.1

Construction

C
D
11
14
18
12
13
17
15
16

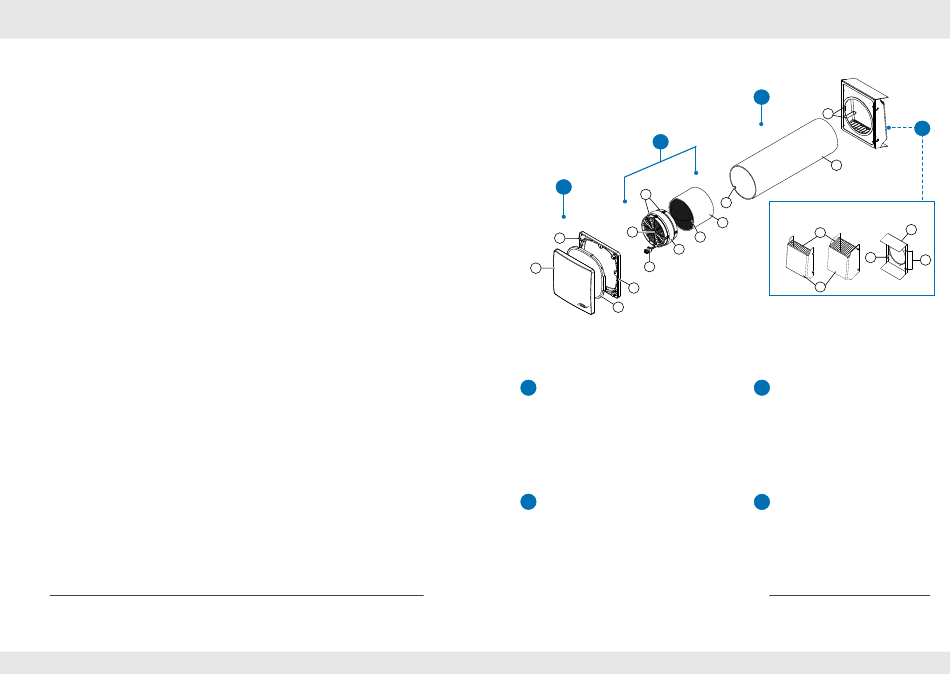

Figure 1: Overview of iV-Compact ventilation device
Components
A
External termination:
Compact/Compact XL weather protection hood
1 Weather protection hood base plate
2 Panel fixing screws (4x)
3 Thermal accumulator bracket
4 Protective grid
5 Weather protection hood cover
6 Sealing tape
B Wall sleeve
7 R-D160 wall sleeve
8 Recess for fan BUS
(inside wall side)
iV-Compact ventilation device | Installation instructions
SYSTEM OVERVIEW: IV-COMPACT VENTILATION DEVICE
B
6
7
8
Compact XL
Compact
9
4
10
3
5
C
Thermal accumulator insert
(thermal accumulator incl. inVENTron
9 Thermal accumulator with insulation
10 Thermal accumulator handle
11 Slim guiding vane (2x)
12 Xenion reversible fan
13 Plug connection
14 Guiding vane knob
D Flair inner cover
15 Inner cover base plate
16 ISO coarse 60 % dust filter
17 Inner cover panel
18 Spacer (4 x)
Pollen and activated charcoal filter options available
1)
A
Base plate
1
2
® )
1)
9
9
