Electrical Box - Daikin CTKC15QVM4 Removal Procedure

Si041551EB

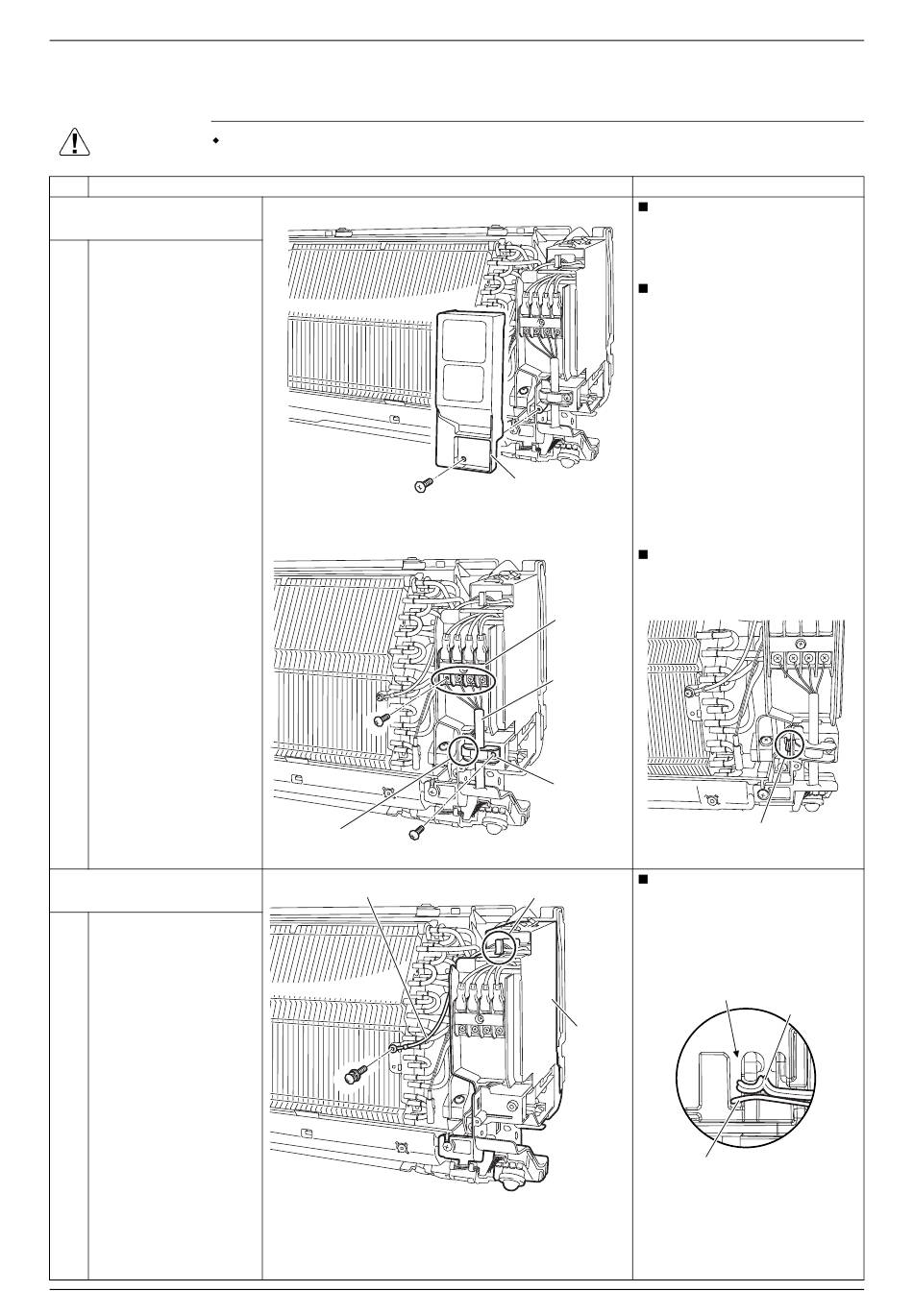

4. Electrical Box

Warning
Step
1. Disconnect the
connecting wire.
1 Remove the screw, and
then the service cover.
2 Remove the screw,
unfasten the hook and
remove the wire fixture.
3 Remove the 4 screws
of the terminal board
and disconnect the
connecting wire.
2. Remove the electrical
box.
1 Remove the screw and
detach the earth/ground
wire.
2 Release the earth/
ground wire from the
front slit at the top of the
electrical box.
Removal Procedure
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Hook
Earth/ground wire
Service cover can be
removed without removing
the front grille.
There is no hook at the top
of the service cover. Be
careful not to drop it when
the screw is loosened.
Service cover
(R22053)
When reassembling, be sure
to fasten the hook before
tightening the screw.
Terminal
board
Connecting
wire
Wire fixture
(R22054)
When reassembling, be sure
Front slit
to insert the earth/ground
wire in the front slit and
under the thermistor
harness.
Electrical
box
Earth/ground wire
(R24241)
Electrical Box
Points
Hook
(R22055)
Thermistor
Front slit
harness
(R24242)
5
