Horizontal Blade

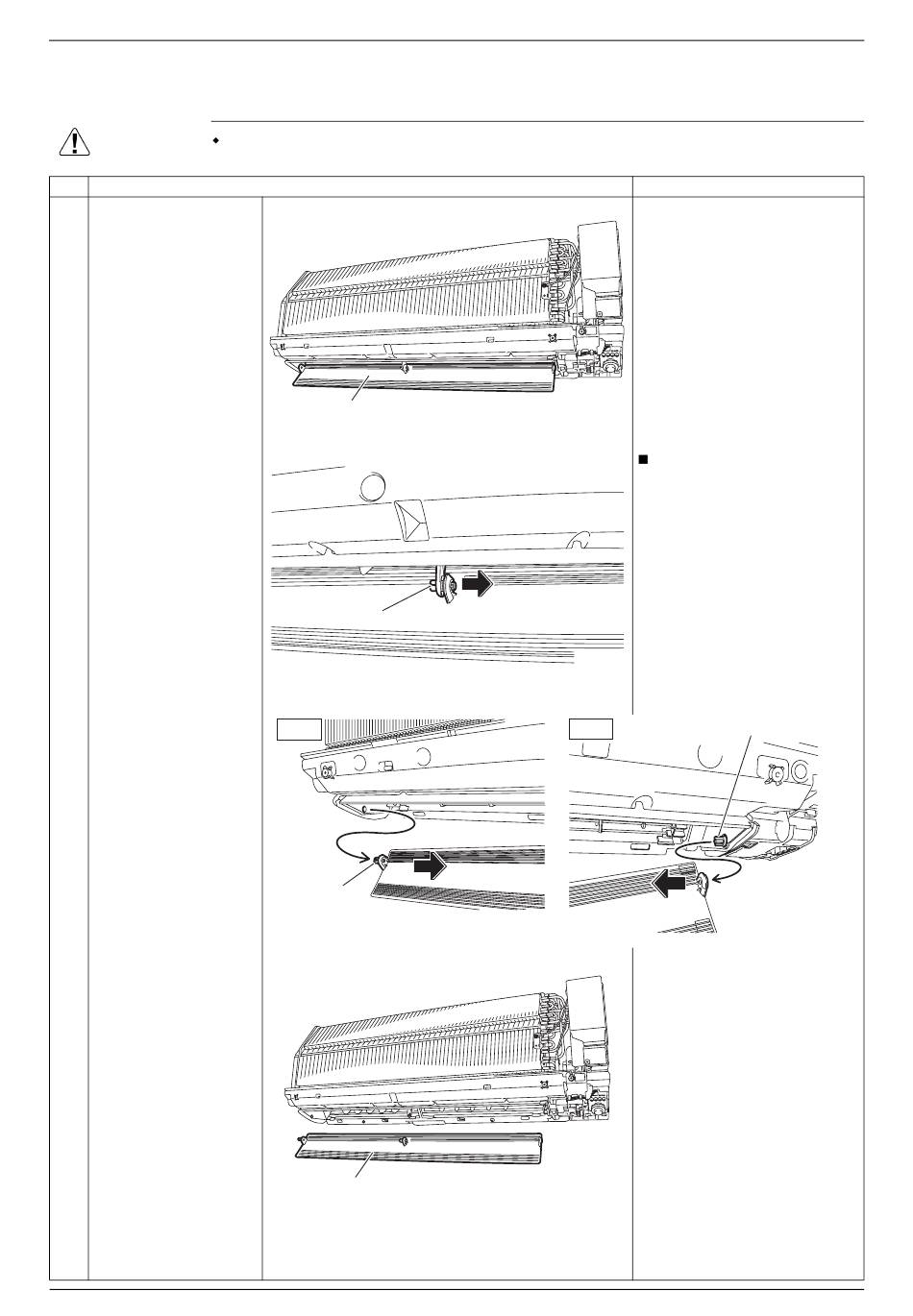

3. Horizontal Blade
Warning
Step
1 Release the center
shaft while bending the
horizontal blade
slightly.
2 Release the left shaft.
3 Release the right shaft.
4 Remove the horizontal
blade.
4
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Horizontal blade
Shaft
Left
Shaft
Horizontal blade
(R22051)
Reassembling procedure
1. Fit the horizontal blade to the
right shaft first. Make sure to
rotate the horizontal blade so
the shaft fits correctly.
2. Fit the horizontal blade to the
center and left shafts.
(R21007)
Right
(R21008)
(R22052)
Si041551EB
Points
Shaft
(R23391)
Removal Procedure
