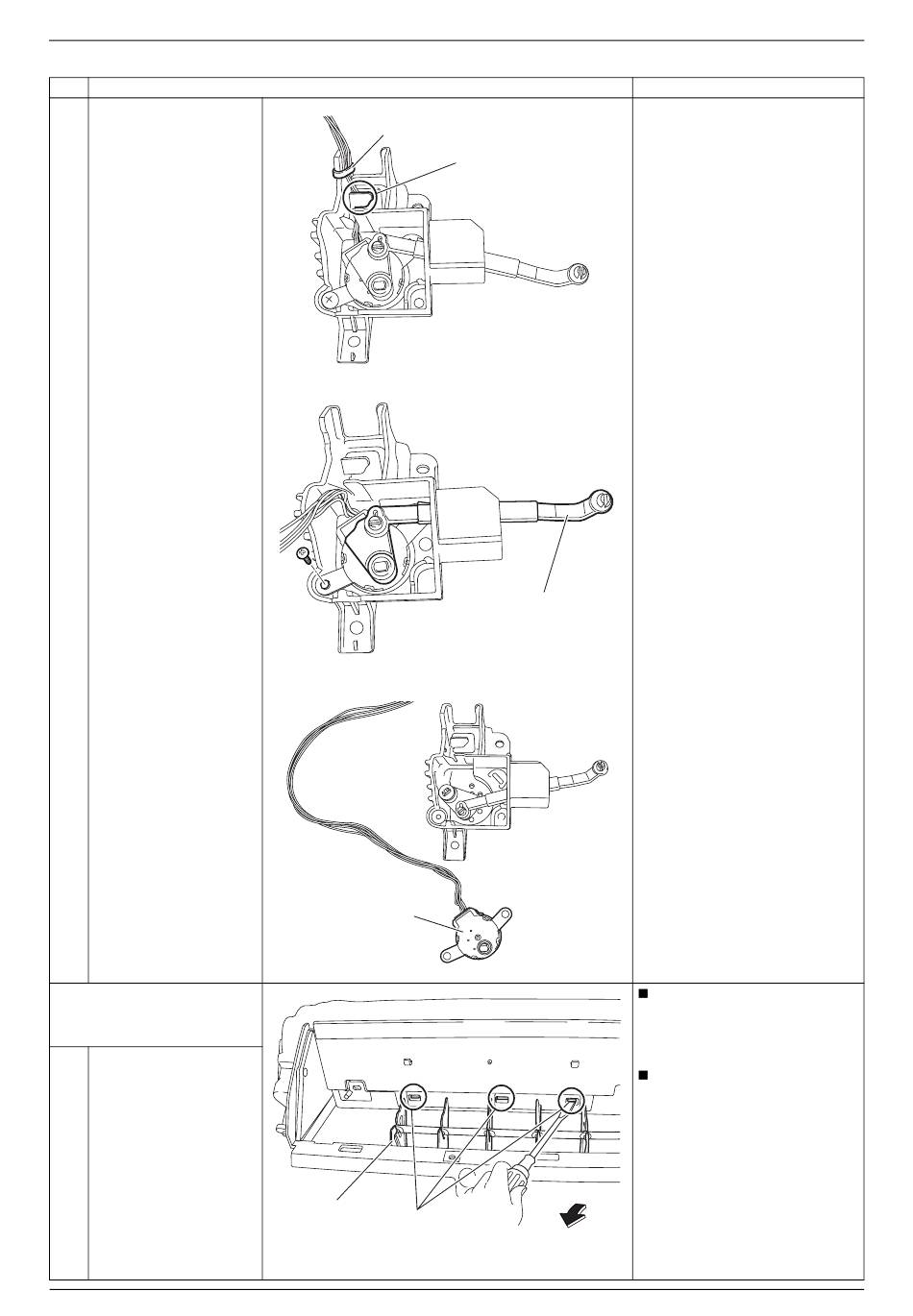

Daikin CTKC15QVM4 Removal Procedure page 16

Drain Pan / Swing Motors / Vertical Blade ASSYs
Step
3 Cut the clamp and
release the harness
from the hook.
4 Remove the screw and
pull out the link shaft.
5 Remove the swing
motor for vertical
blades.
4. Remove the vertical blade
ASSYs (auto-swing
models).
1 Unfasten the 3 hooks of
the vertical blade ASSY
by pressing them with a
flat screwdriver.
2 Remove the vertical
blade ASSY.
3 Remove the other
vertical blade ASSY in
the same way.
14
Procedure
Clamp
Swing motor for
vertical blade
Vertical blade
Hook
ASSY
Hook
(R22089)
Link shaft
(R24250)
(R22113)
(R22114)
Si041551EB
Points
Each vertical blade ASSY
has 5 fins. It is impossible to
replace only one fin.
The vertical blade ASSY is
not marked for difference
between right and left.
Removal Procedure
