PCBs
Step
2. Remove the
INTELLIGENT EYE
sensor PCB.
1
Unfasten the hook of
the display/signal
receiver unit.
2
Release the harness of
the display/signal
receiver unit from the
hook.
3
Release the harness
from the hook.
10

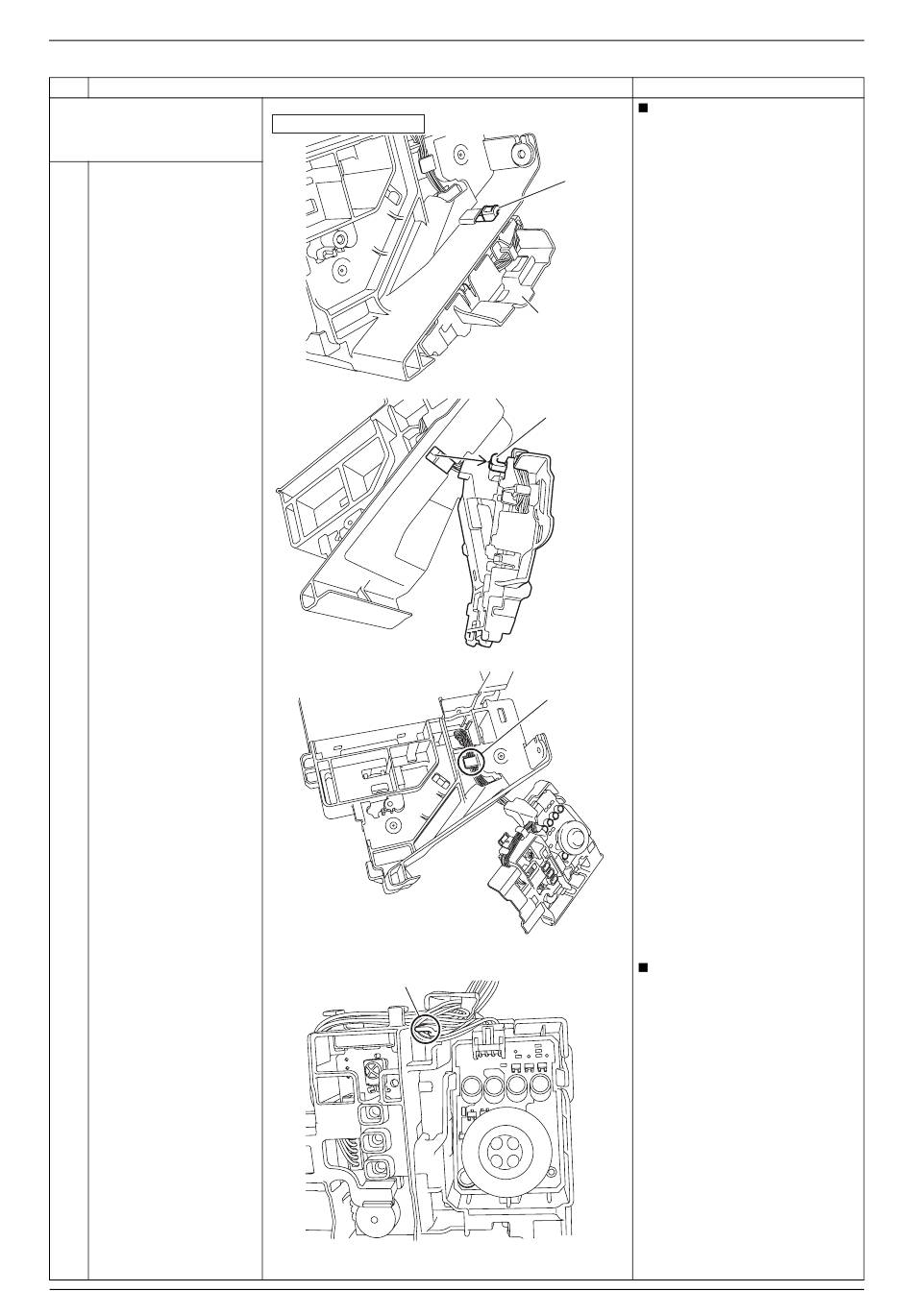

Procedure
Back of the electrical box
Hook
Some models do not have
the INTELLIGENT EYE
sensor PCB.
Hook
Display/signal
receiver unit
(R24246)
Hook
(R24247)
Hook
(R22076)
The INTELLIGENT EYE
sensor PCB can be removed
without disconnecting the
connector.
(R22077)
Si041551EB
Points
Removal Procedure
