Daikin CTKC15QVM4 Removal Procedure page 9

Si041551EB

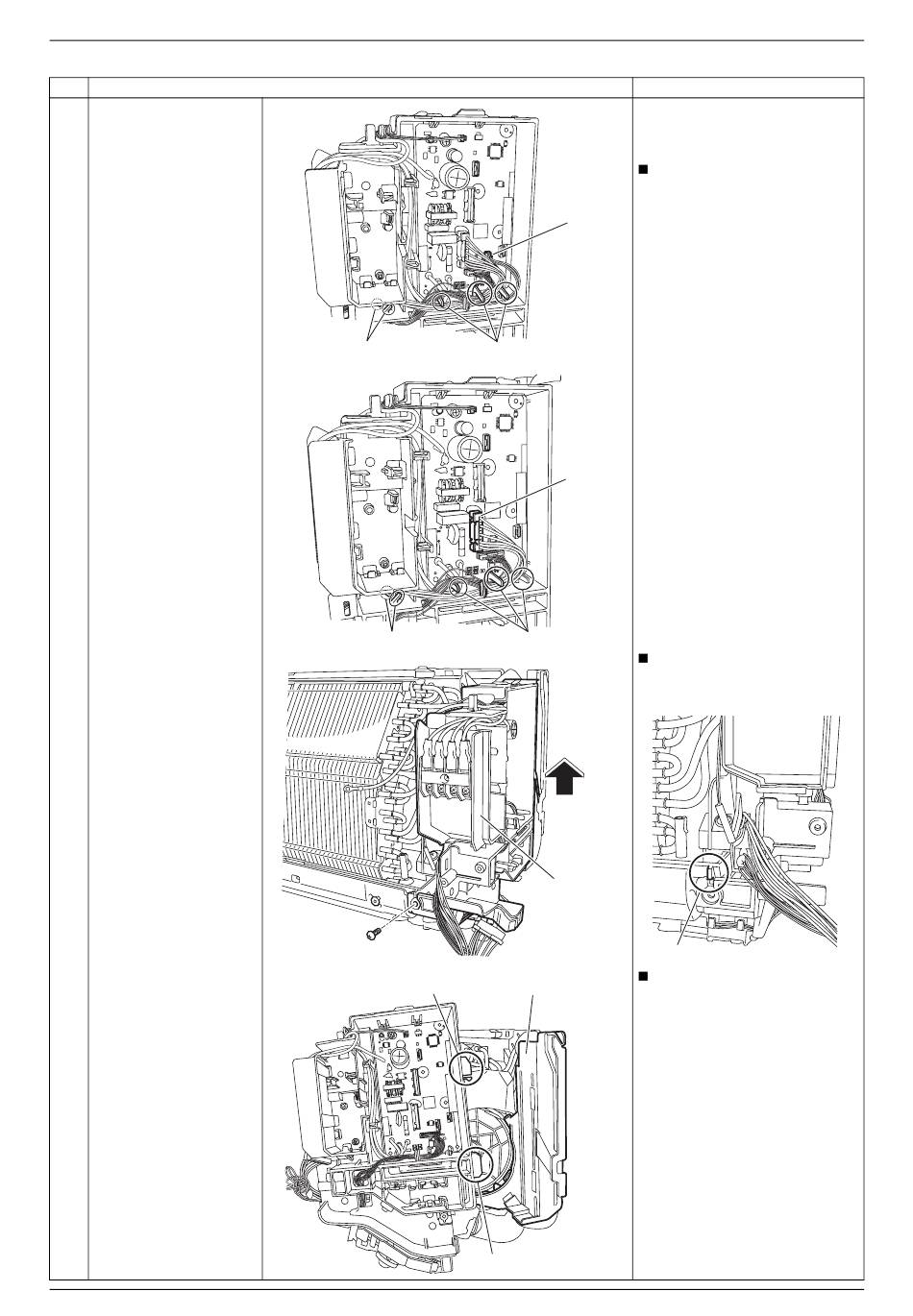

Step
7 Disconnect the
connector [S11].
8 Release the harnesses
from the 5 hooks.
9 Disconnect the
connector [S200].
10 Release the harnesses
from the 5 hooks.
11 Remove the screw of
the electrical box.
12 Slightly lift the electrical
box upward and
remove it.
Removal Procedure
Procedure
Hook Hook
Hook
Hook
Hook
[S11]: swing motor for vertical
Some models do not have
the harness for [S11].
[S11]
(R24244)
[S200]: fan motor
[S200]
(R23393)
Hook
When reassembling, make
sure to fasten the hook at the
front of the electrical box.
Electrical box
(R22063)
Hook
When reassembling, make
Bottom frame
sure that the 2 hooks are
securely fastened to the
bottom frame.
(R22065)
Electrical Box
Points
blades
(R22064)
7
