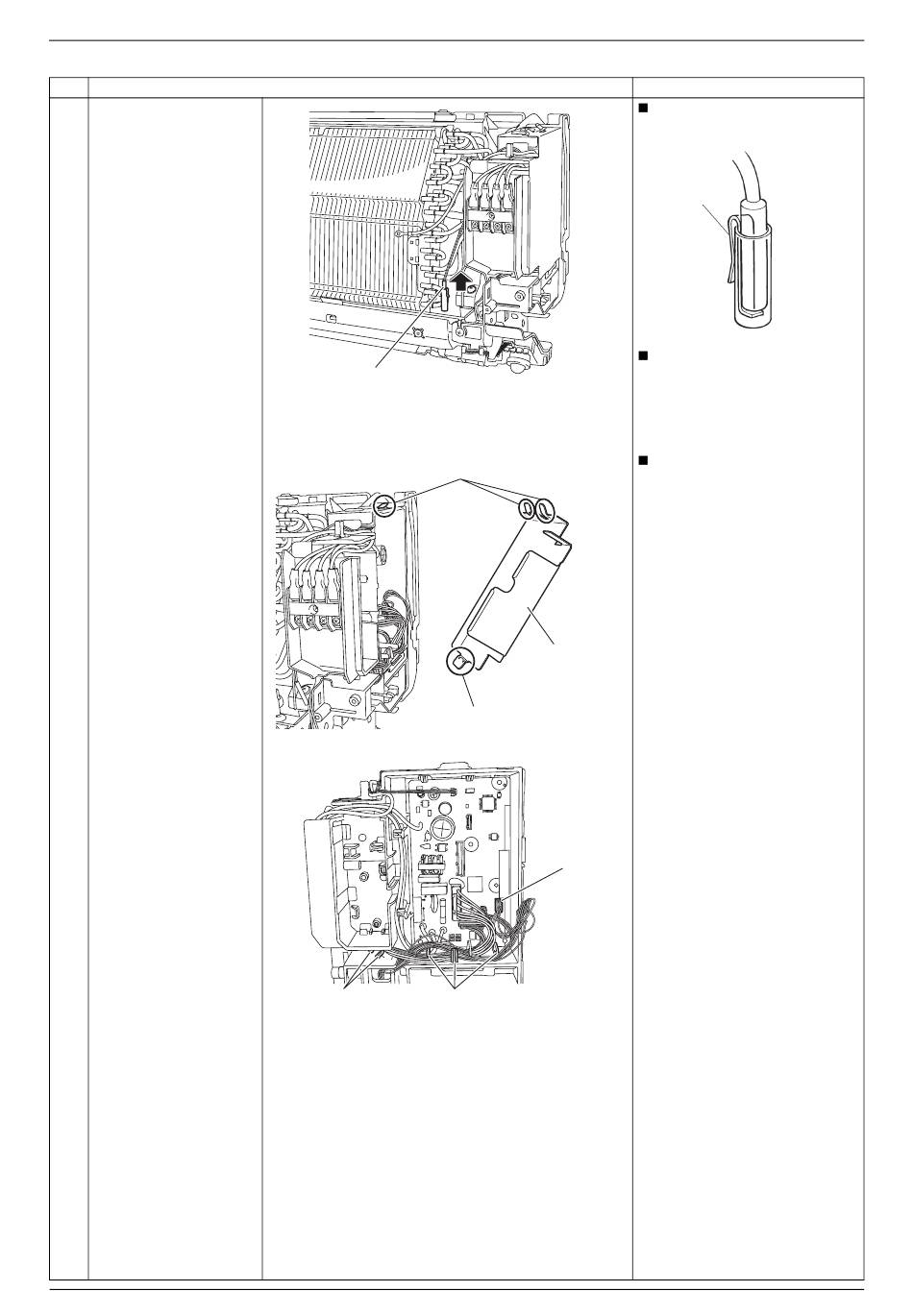

Daikin CTKC15QVM4 Removal Procedure page 8

Electrical Box
Step
3 Pull out the indoor heat
exchanger thermistor.
4 Unfasten the 4 hooks
and remove the
electrical box cover.
5 Disconnect the
connector [S6].
6 Release the harnesses
from the 5 hooks.
6
Procedure
Indoor heat exchanger thermistor
Hook Hook
(R22058)
Hook
Electrical box
cover
Hook
(R22059)
[S6]
(R24243)
Si041551EB
Points
Be careful not to lose the clip
of the thermistor.
Clip
The position of the indoor
heat exchanger thermistor
varies depending on the
model.
When reassembling, make
sure that the 4 hooks are
securely fastened.
[S6]: swing motor for horizontal
blade
Removal Procedure
(R11268)
