Si041551EB

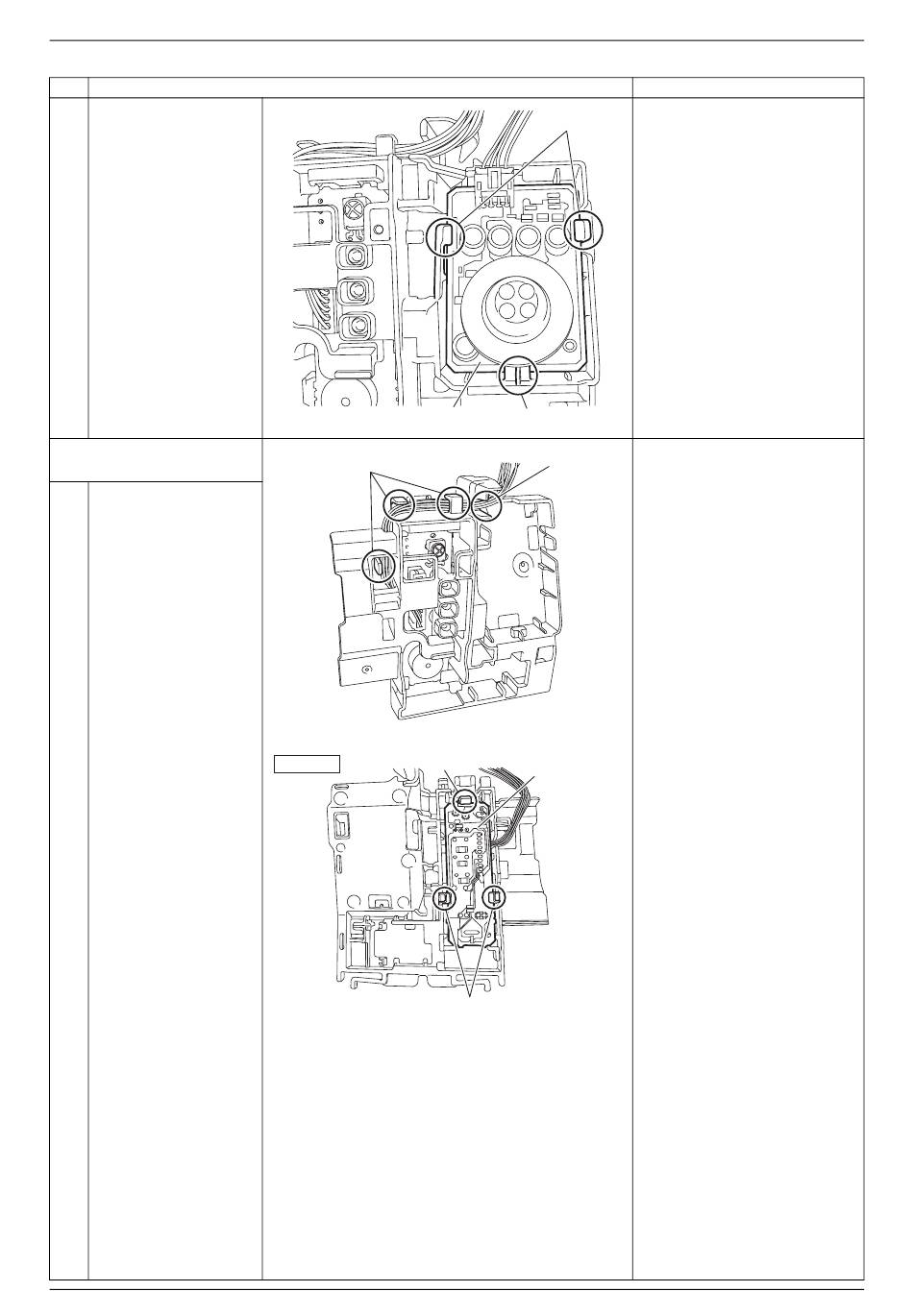

Step
4
Unfasten the 3 hooks
and remove the
INTELLIGENT EYE
sensor PCB.
3. Remove the display/
signal receiver PCB.
1
Release the harness
from the slit and the 3
hooks.
2
Turn over the PCB
ASSY, unfasten the 3
hooks and remove the
display/signal receiver
PCB.
Removal Procedure
Procedure
INTELLIGENT EYE sensor PCB
Hook
Hook
Back view
Hook
Hook
(R24248)
Slit
(R22079)
Display/signal
receiver PCB
Hook
(R24249)
PCBs
Points
11
