DAIKIN ROOM AIR CONDITIONER

OPERATION MANUAL

MODELS

CTKS25QVM

CTKS35QVM

CTKS50QVM

Enjoy year-round comfort.

Table of Contents

Need help?

Do you have a question about the CTKS25QVM and is the answer not in the manual?

Questions and answers

Summary of Contents for Daikin CTKS25QVM

Page 1 DAIKIN ROOM AIR CONDITIONER OPERATION MANUAL Enjoy year-round comfort. Enjoy year-round comfort. Enjoy year-round comfort. Enjoy year-round comfort. MODELS CTKS25QVM CTKS35QVM CTKS50QVM...
Page 2: Other Functions
Features Enhanced comfort and energy savings INTELLIGENT EYE The INTELLIGENT EYE sensor detects human movement in a room. If no one is in the room for more than 20 minutes, the operation automatically changes to energy saving operation. Page 15 WEEKLY TIMER Up to 4 timer settings can be saved for each day of the week according to your family’s life style. The WEEKLY TIMER allows you to set on/off times and the desired temperature. Page 21 Other functions COMFORT AIRFLOW OUTDOOR UNIT QUIET The airfl ow direction is upward while in OUTDOOR UNIT QUIET operation COOL and DRY operation. This function assures a low noise level of the prevents cold air from blowing directly outdoor unit. This function is useful on your body. to maintain a quiet neighbourhood. Page 15 Page 18...
Page 3: Table Of Contents
Contents „ Read Before Operation Safety Precautions .......... Names of Parts ..........Preparation Before Operation ......„ Basic Operation DRY / COOL / FAN Operation .... Adjusting the Airflow Rate ....Adjusting the Airflow Direction ... „ Useful Functions COMFORT AIRFLOW / INTELLIGENT EYE Operation ... POWERFUL Operation ...... ECONO / OUTDOOR UNIT QUIET Operation ........... „ TIMER Operation ON/OFF TIMER Operation ....
Page 4: Read Before Operation
Read Before Operation Safety Precautions • Keep this manual where the user can easily find it. • Read the precautions in this manual carefully before operating the unit. • The precautions described herein are classified as WARNING and CAUTION. They both contain important information regarding safety. Be sure to observe all precautions without fail. WARNING CAUTION Failure to follow these instructions properly may result in Failure to follow these instructions properly may result in property damage or personal injury, which may be serious personal injury or loss of life. depending on the circumstances. Be sure to follow the Be sure to establish an earth Never attempt. instructions. connection. • After reading, keep this manual in a convenient place so that you can refer to it whenever necessary. If the equipment is transferred to a new user, be sure also to hand over the manual. WARNING • To avoid fire, explosion or injury, do not operate the unit when harmful gases (e.g. flammable or corrosive) are detected near the unit. • Be aware that prolonged, direct exposure to cool air from the air conditioner, or to air that is too cool can be harmful to your physical condition and health. • Do not place objects, including rods, your fingers, etc., in the air inlet or outlet. Product damage or personal injury may result due to contact with the air conditioner’s high-speed fan blades. • Do not attempt to repair, dismantle, reinstall or modify the air conditioner yourself as this may result in water leakage, electric shock or fire hazards. • Do not use flammable spray near the air conditioner, or otherwise fire may result. • Do not use a refrigerant other than the one indicated on the outdoor unit (R410A) when installing, moving or repairing. Using other refrigerants may cause trouble or damage to the unit, and personal injury.
Page 5 Read Before Operation CAUTION • Do not place objects that are susceptible to moisture directly beneath the indoor or outdoor units. Under certain conditions, condensation on the main unit or refrigerant pipes, air filter dirt or drain blockage may cause dripping, resulting in fouling or failure of the object concerned. • After prolonged use, check the unit stand and its mounts for damage. If they are left in a damaged condition, the unit may fall and cause injury. • To avoid injury, do not touch the air inlet or aluminium fins of the indoor or outdoor units. • The appliance is not intended for use by unattended young children or infirm persons. Impairment of bodily functions and harm to health may result. • Children should be supervised to ensure that they do not play with the unit or its remote controller. Accidental operation by a child may result in impairment of bodily functions and harm health. • Avoid impacts to the indoor and outdoor units, or otherwise product damage may result. • Do not place flammable items, such as spray cans, within 1m of the air outlet. The spray cans may explode as a result of hot air from the indoor or outdoor units. • Be careful not to let pets urinate on the air conditioner. Urination on the air conditioner may result in electric shocks or fire. • Do not wash the air conditioner with water, as this may result in electric shocks or fire. • Do not place water containers (vases, etc.) above the unit, as this may result in electric shocks or fire hazards if they should topple over. • Do not insert the batteries in the wrong polarity (+/-) orientation as this may result in short circuiting, fire, or battery leakage. • To avoid oxygen depletion, ensure that the room is adequately ventilated if equipment such as a burner is used together with the air conditioner. • Before cleaning, be sure to stop unit operation and turn off the circuit breaker. Otherwise, an electric shock and injury may result. • Only connect the air conditioner to the specified power supply circuit. Power supplies other than the one specified may result in electric shocks, overheating and fires.
Page 6: Names Of Parts

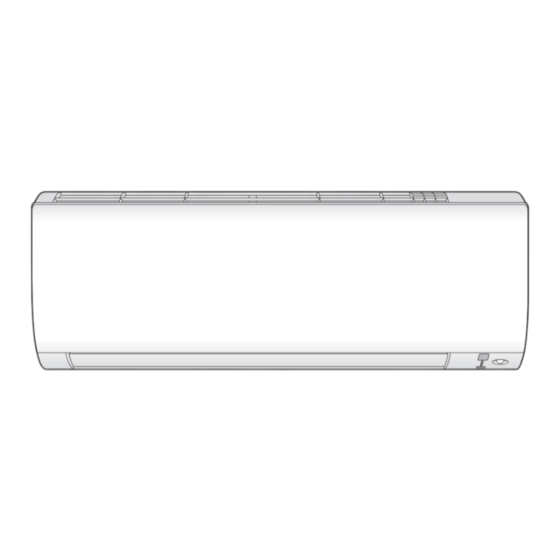

Read Before Operation Names of Parts Indoor Unit Front panel Air inlet INTELLIGENT EYE sensor Air outlet Model name Flap (horizontal blade) • Detects the movements of people and automatically switches Page 14 between normal operation and energy saving operation. Page 15,16 Louvres (vertical blades) • The louvres are inside of the air Indoor temperature sensor outlet. Page 14 • Detects the air temperature around the unit.
Page 7 Read Before Operation „ Open the front panel Titanium apatite photocatalytic air-purifying fi lter Air fi lter Outdoor Unit • The appearance of the outdoor unit may differ between different models. Outdoor temperature Air inlet (back and side) sensor (back) Refrigerant pipes and inter-unit wire Earth terminal (inside) Model name Air outlet Drain hose...
Page 8 Read Before Operation Names of Parts Remote Controller Signal transmitter Display (LCD) • Displays the current settings. Receiver (In this illustration, each section is shown with all its displays on for the purpose of explanation.) • To use the remote controller, aim the transmitter at the indoor unit. If there is anything blocking the signals between the unit and the remote controller, such as a curtain, the unit may not operate. • The maximum transmission distance is TEMPERATURE about 7m. adjustment button • Changes the temperature setting. Page 12 FAN setting button • Selects the airfl ow rate setting. Page 13 ON/OFF button • Press this button once to start...
Page 9 Read Before Operation „ Open the front cover MODE selector button • Selects the operation mode. (DRY/COOL/FAN) Page 11 ECONO/QUIET button • ECONO/OUTDOOR UNIT QUIET operation. Page 18 COMFORT/SENSOR SWING button button • Adjusts the airfl ow direction. • COMFORT AIRFLOW and Page 14 INTELLIGENT EYE operation. Page 15 : WEEKLY button OFF TIMER button (NIGHT SET mode) : PROGRAMME button...
Page 10: Preparation Before Operation
Read Before Operation Preparation Before Operation To insert the batteries Slide the front cover to take it off. Position – correctly! Insert 2 dry batteries AAA.LR03 (alkaline). Replace the front cover. To fix the remote controller holder to a wall Choose a place from where the signals reach Remote controller the unit.
Page 11 Read Before Operation To set the clock Press “ ” is displayed on the LCD. “ ” and “ ” blink. Press to set the current day of the week. Press “ ” blinks. Press to set the clock to the present time. • Holding down or rapidly increases or decreases the displayed time. Press • Point the remote controller at the indoor unit when pressing the buttons. “ ” blinks. NOTE Note on setting the clock • If the indoor unit’s internal clock is not set to the correct time, the ON/OFF TIMER and WEEKLY TIMER will not operate punctually.
Page 12: Basic Operation
Basic Operation DRY / COOL / FAN Operation The air conditioner operates with the operation mode of your choice. From the next time on, the air conditioner will operate with the same operation mode. To start operation Press and select an operation mode. • Each pressing of the button changes the mode setting in sequence. COOL Press • “ ” is displayed on the LCD. • The OPERATION lamp lights green. Display To stop operation Press again. • “ ” disappears from the LCD. • The OPERATION lamp goes off. NOTE Note on DRY operation • Eliminates humidity while maintaining the indoor temperature as much as possible. It automatically controls temperature and airfl ow rate, so manual adjustment of these functions is unavailable.
Page 13 Basic Operation To change the temperature setting Press • Press to raise the temperature and press to lower the temperature. COOL operation DRY or FAN operation The temperature setting cannot be 18-32°C changed. Tips for saving energy Keeping the temperature setting at a moderate level helps save energy. • Recommended temperature setting − For cooling: 26-28°C Cover windows with a blind or a curtain. • Blocking sunlight and air from outdoors increases the cooling effect.
Page 14: Adjusting The Airflow Rate
Basic Operation Adjusting the Airfl ow Rate You can adjust the airfl ow rate to increase your comfort. To adjust the airfl ow rate setting Press • Each pressing of changes the airfl ow rate setting in sequence. AUTO Indoor unit quiet Airﬂow rate 1-5 (Low to High) • When the airfl ow is set to “ ”, quiet operation starts and noise from the indoor unit will become quieter. • In the quiet operation mode, the airfl ow rate is set to a weak level. • In DRY operation, the airfl ow rate setting cannot be changed.
Page 15: Adjusting The Airflow Direction
Basic Operation Adjusting the Airfl ow Direction You can adjust the airfl ow direction to increase your comfort. CAUTION • Always use a remote controller to adjust the angles of the fl ap and louvres. − I f you attempt to move the fl ap and louvres forcibly by hand when they are swinging, the mechanism may be damaged. − Inside the air outlet, a fan is rotating at a high speed. To start auto swing Up and down airfl ow direction Press • “ ” is displayed on the LCD. • The fl ap (horizontal blade) will begin to swing. Right and left airfl ow direction Press • “ ...
Page 16: Useful Functions
Useful Functions COMFORT AIRFLOW / INTELLIGENT EYE Operation COMFORT AIRFLOW operation: The airfl ow direction is upward while in COOL and DRY operation. This function prevents cold air from blowing directly on the occupants in the room. INTELLIGENT EYE operation: The INTELLIGENT EYE sensor detects human movement. If no one is in the room for more than 20 minutes, the operation auto- matically changes to energy saving operation. CAUTION • Do not place large objects near the INTELLIGENT EYE sensor. Also keep heating units and humidifi ers outside the sensor’s detection area. This sensor can detect undesirable objects. • Do not hit or violently push the INTELLIGENT EYE sensor. This can lead to damage and malfunction. To start operation Press and select the desired mode. • Each time is pressed, a different setting option is displayed on the LCD. • When INTELLIGENT EYE is selected, the INTELLIGENT EYE lamp lights green. Display • By selecting “ ...
Page 17 Useful Functions INTELLIGENT EYE operation is useful for energy saving „ People are detected in the sensing area. „ No people are detected in the sensing area. The air conditioner is in normal operation while the The air conditioner will switch to energy-saving mode after sensor is detecting human movement. 20 minutes. Energy saving operation • If no presence detected in the room for 20 minutes, the energy saving operation will start, and the INTELLIGENT EYE lamp goes off. If human movement is detected again, the INTELLIGENT EYE lamp lights up and energy saving operation terminates. • This operation changes the temperature by +2°C in COOL / +2°C in DRY operation from the set temperature. When the room temperature exceeds 30°C, the operation changes the temperature by +1°C in COOL / +1°C in DRY operation from the set temperature. • This operation decreases the airflow rate slightly in FAN operation only. NOTE Note on COMFORT AIRFLOW operation • The airflow rate will be set to AUTO. If the up and down airflow direction is selected, COMFORT AIRFLOW operation will be cancelled.
Page 18: Powerful Operation
Useful Functions POWERFUL Operation POWERFUL operation quickly maximises the cooling effect in any operation mode. In this mode, the air conditioner operates at maximum capacity. To start POWERFUL operation Press during operation. • “ ” is displayed on the LCD. • POWERFUL operation ends in 20 minutes. Then the system automatically operates again with the previous settings which were used before POWERFUL operation. To cancel POWERFUL operation Press again. • “ ” disappears from the LCD. NOTE Notes on POWERFUL operation • Pressing causes the settings to be cancelled, and “ ...
Page 19: Econo / Outdoor Unit Quiet Operation
Useful Functions ECONO / OUTDOOR UNIT QUIET Operation ECONO operation enables efficient operation by limiting the maximum power consumption. This function is useful to prevent the circuit breaker from tripping when the unit operates alongside other appliances on the same circuit. OUTDOOR UNIT QUIET operation lowers the noise level of the outdoor unit by changing the frequency and fan speed of the outdoor unit. This function is conve- nient during the night-time operation. To start operation Press and select the desired mode. • Each time is pressed, a different setting option is displayed on the LCD. blank ECONO OUTDOOR UNIT Combination No Setting QUIET To cancel operation Press...
Page 20: Timer Operation
TIMER Operation ON/OFF TIMER Operation Timer functions are useful for automatically switching the air conditioner on or off at night or in the morning. You can also use the ON TIMER and OFF TIMER together. To use ON TIMER operation • Check that the clock is correct. If not, set the clock to the present time. Page 10 Press “ ” is displayed on the LCD. “ ” blinks. • “ ” and day of the week disappear from the LCD. Press until the time setting reaches the point you like. • Each pressing of either button increases or decreases the time setting by 10 minutes. Holding down either button changes the setting rapidly. Press again. • “ ” and setting time are displayed on the LCD. • The TIMER lamp lights orange.
Page 21 TIMER Operation To use OFF TIMER operation • Check that the clock is correct. If not, set the clock to the present time. Page 10 Press “ ” is displayed on the LCD. “ ” blinks. • “ ” and day of the week disappear from the LCD. Press until the time setting reaches the point you like. • Each pressing of either button increases or decreases the time setting by 10 minutes. Holding down either button changes the time setting rapidly. Press again. • “ ” and setting time are displayed on the LCD. • The TIMER lamp lights orange. Display To cancel OFF TIMER operation Press • “ ...
Page 22: Weekly Timer Operation
TIMER Operation WEEKLY TIMER Operation Up to 4 timer settings can be saved for each day of the week. This is convenient to adapt the WEEKLY TIMER to your family’s life style. Setting example of the WEEKLY TIMER T he same timer settings are used from Monday through Friday, while different timer settings are used for the weekend. [Monday] Make timer settings for programmes 1-4. Page 22 Programme 1 Programme 2 Programme 3 Programme 4 25°C 27°C 6:00 8:30 17:30 22:00 [Tuesday] Use the copy mode to make settings for Tuesday to Friday, because these settings are the same as those for Monday. Page 24 [Friday] Programme 1 Programme 2 Programme 3 Programme 4...
Page 23 TIMER Operation To use WEEKLY TIMER operation Setting mode • Make sure the day of the week and time are set. If not, set the day of the week and time. Page 10 Programme 1 Programme 2 Programme 3 Programme 4 [Monday] 25°C 27°C 6:00 8:30 17:30 22:00 Setting Displays Day and number ON/OFF Time Temperature Press • The day of the week and the reservation number of the current day will be displayed. • 1 to 4 settings can be made per day. Press to select the desired day of the week and reservation number.
Page 24 TIMER Operation WEEKLY TIMER Operation Press to select the desired time. • The time can be set between 0:00 and 23:50 in 10-minute intervals. • To return to the ON/OFF TIMER mode setting, press • Proceed to STEP when setting the OFF TIMER. Press • The time will be set. • “ ” and the temperature blink. Press to select the desired temperature. • The temperature can be set between 10°C and 32°C. COOL: The unit operates at 18°C even if it is set to 10 to 17°C. Page 12 • To return to the time setting, press • The set temperature is only displayed when the mode setting is on. Press • Be sure to direct the remote controller toward the indoor unit and check for a receiving tone and blinking of the OPERATION lamp. • The temperature will be set and go to the next reservation setting. • The temperature is set while in ON TIMER operation, and the time is set while in OFF TIMER operation. • The next reservation screen will appear. • To continue further settings, repeat the procedure from STEP • The TIMER lamp lights orange. Display Press to complete the setting.
Page 25 TIMER Operation Copy mode • A reservation made once can be copied to another day of the week. The whole reservation of the selected day of the week will be copied. Programme 1 Programme 2 Programme 3 Programme 4 [Monday] 25°C 27°C 6:00 8:30 17:30 22:00 COPY Programme 1 Programme 2 Programme 3 Programme 4 [Tuesday] 25°C 27°C [Friday] 6:00 8:30 17:30 22:00 Setting Displays Confi rmation Copy Paste...
Page 26 TIMER Operation WEEKLY TIMER Operation Confi rming a reservation • The reservation can be confi rmed. Setting Displays Normal Confi rmation Press • The day of the week and the reservation number of the current day will be displayed. Press to select the day of the week and the reservation number to be confi rmed. • Pressing displays the reservation details. • To change the confi rmed reserved settings, select the reservation number and press The mode is switched to setting mode. Proceed to Setting mode STEP Page 22 Press...
Page 27 TIMER Operation To delete reservations An individual reservation Press • The day of the week and the reservation number will be displayed. Press to select the day of the week and the reservation number to be deleted. Press • “ ” and “ ” or “ ” blink. Press until no icon is displayed. • Pressing changes the ON/OFF TIMER mode in sequence. • Selecting “blank” will cancel any reservation you may have. blank Pressing puts the sequence in reverse.
Page 28: Multi Connection
Multi Connection Note for Multi System A multi system has one outdoor unit connected to multiple indoor units. Selecting the operation mode When the priority room setting is active Room A Room B but the set unit is not operating or when the priority room setting is inactive When more than one indoor unit is operating, priority is given to Room C Room D the first unit that was turned on.
Page 29 Multi Connection Priority room setting The priority room setting requires initial programming during installation. Please consult your authorized dealer for assistance. The room designated as the priority room takes priority in the following situations. Operation mode priority • As the operation mode of the priority room takes precedence, you can select a different operation mode from other rooms. [Example] • Room A is the priority room in this example. When COOL operation is selected in room A while operating the following modes in room B, C and D: Operation mode in room B, C and D Status of room B, C and D when the unit in room A is in COOL operation COOL or DRY or FAN The current operation mode is maintained.
Page 30: Care
Care Care and Cleaning CAUTION • Before cleaning, be sure to stop the operation and turn off the circuit breaker. • Do not touch the aluminum fi ns of the indoor unit. If you touch those parts, this may cause an injury. „ Quick reference Cleaning parts Front panel • Wipe it with a soft damp cloth. • Only neutral detergent may be used. If dirty Air fi lter • Vacuum dust or wash the fi lter. Once every 2 weeks Page 30 Indoor unit, outdoor unit and remote controller Titanium apatite photocatalytic air-purifying fi lter • Wipe them with a soft cloth.
Page 31 Care „ Air fi lter Open the front panel. Wash the air fi lters with water or clean them with • Hold the front panel by the sides and open it. vacuum cleaner. • It is recommended to clean the air fi lters every 2 weeks. Pull out the air fi lters. • Push the fi lter tab at the centre of each air fi lter a little upwards, then pull it down. If the dust does not come off easily • Wash the air fi lters with neutral detergent thinned with lukewarm water, then dry them up in the shade.
Page 32 Care Care and Cleaning „ Titanium apatite photocatalytic air-purifying fi lter [Replacement] Open the front panel and Remove the fi lter from the tabs pull out the air fi lters. Page 30 and prepare a new one. Take off the titanium apatite photocatalytic air-purifying fi lters.
Page 33 Care „ Prior to a long period of non-use Operate the FAN mode for several hours on a fine day to dry out the inside. 1) Press and select “ ” . 2) Press and start the operation. After operation stops, turn off the circuit breaker for the room air conditioner.
Page 34: When The Need Arises
When the Need Arises Indoor unit The flap does not start swinging immediately. • T he air conditioner is adjusting the position of the flap. The flap will start moving soon. Operation does not start soon. Different sounds are heard. „ When the unit is turned on again soon after being turned off. „...
Page 35: Troubleshooting
When the Need Arises Troubleshooting Before making an inquiry or a request for repair, please check the following. If the problem persists, consult your dealer. Not a problem Check This case is not a problem. Please check again before requesting repairs. The air conditioner does not operate Case Description / what to check • Has the circuit breaker been tripped or the fuse blown? OPERATION lamp is off. • Is there a power failure? • Are batteries set in the remote controller? • Turn off the power with the circuit breaker and restart operation with the remote controller. OPERATION lamp is blinking. If the OPERATION lamp is still blinking, check the error code and consult your dealer.
Page 36 When the Need Arises Troubleshooting Mist comes out Case Description / what to check • This happens when the air in the room is cooled into mist by the cold airfl ow during COOL Mist comes out of the indoor unit. or other operation. Remote controller Case Description / what to check • The batteries may be exhausted. Replace both batteries with new dry batteries AAA.LR03 (alkaline). The unit does not receive signals For details, refer to “Preparation Before Operation”.
Page 37 When the Need Arises „ Call your dealer immediately WARNING When an abnormality (such as a burning smell) occurs, stop operation and turn off the circuit breaker. • Continued operation in an abnormal condition may result in problems, electric shock or fire. • Consult the dealer where you bought the air conditioner. Do not attempt to repair or modify the air conditioner by yourself. • Incorrect work may result in electric shock or fire.
Page 38 When the Need Arises Troubleshooting „ Fault diagnosis by remote controller • The remote controller can receive relevant error codes from the indoor unit. When is held down for about 5 seconds, “ ” blinks in the temperature display section. Press repeatedly until a continuous beep is produced. • The code indication changes as shown below, and notifi es you with a long beep. CODE MEANING NORMAL INDOOR-OUTDOOR UNIT COMBINATION FAULT...
