Air Filters / Front Panel - Daikin CTKC15QVM4 Removal Procedure

Air Filters / Front Panel

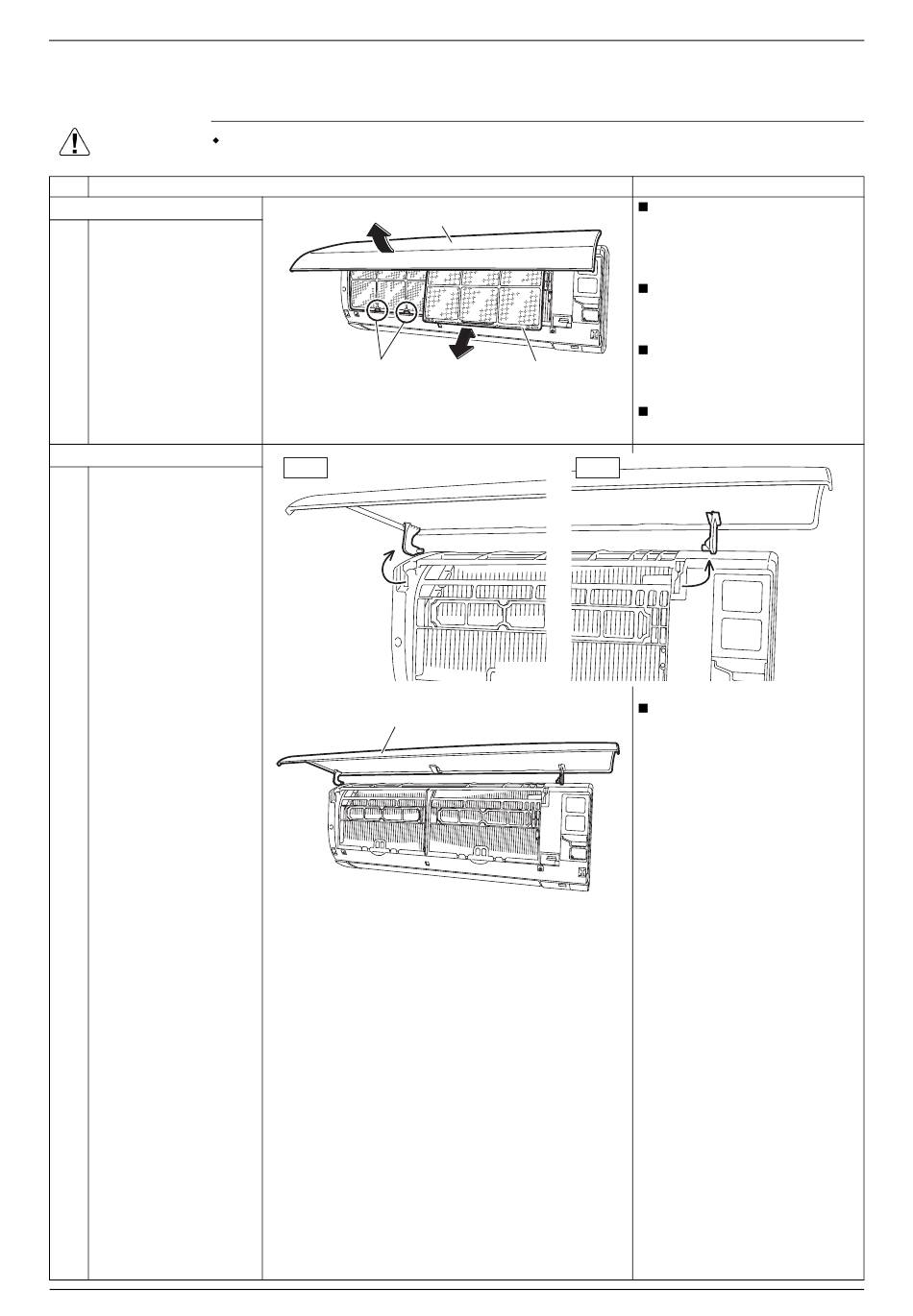

1. Air Filters / Front Panel
Warning
Step
1. Remove the air filters.
1 Open the front panel.
2 Unfasten the 2 hooks
and pull out the air filter.
2. Remove the front panel.
1 Release the left and
right shafts.
2 Remove the front panel.
2
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Hook
Left
Front panel
Front panel
Air filter
(R21000)
(R23389)
(R21003)
Points
The air filter is not marked
for difference between the
right and left sides.
When reassembling, insert
the air filter along the guides.
Insert the air filter with the
"FRONT" mark faced up.
Be sure to insert the 2 hooks
when installing the air filter.
Right
When reassembling the front
panel, fit the right and left
shafts one by one into the
grooves and fully push them
in position.
Removal Procedure
Si041551EB
(R23390)
