Horizontal Blade - Daikin ATKC09RV2S Service Manual

Si041264EC

2. Horizontal Blade

Warning

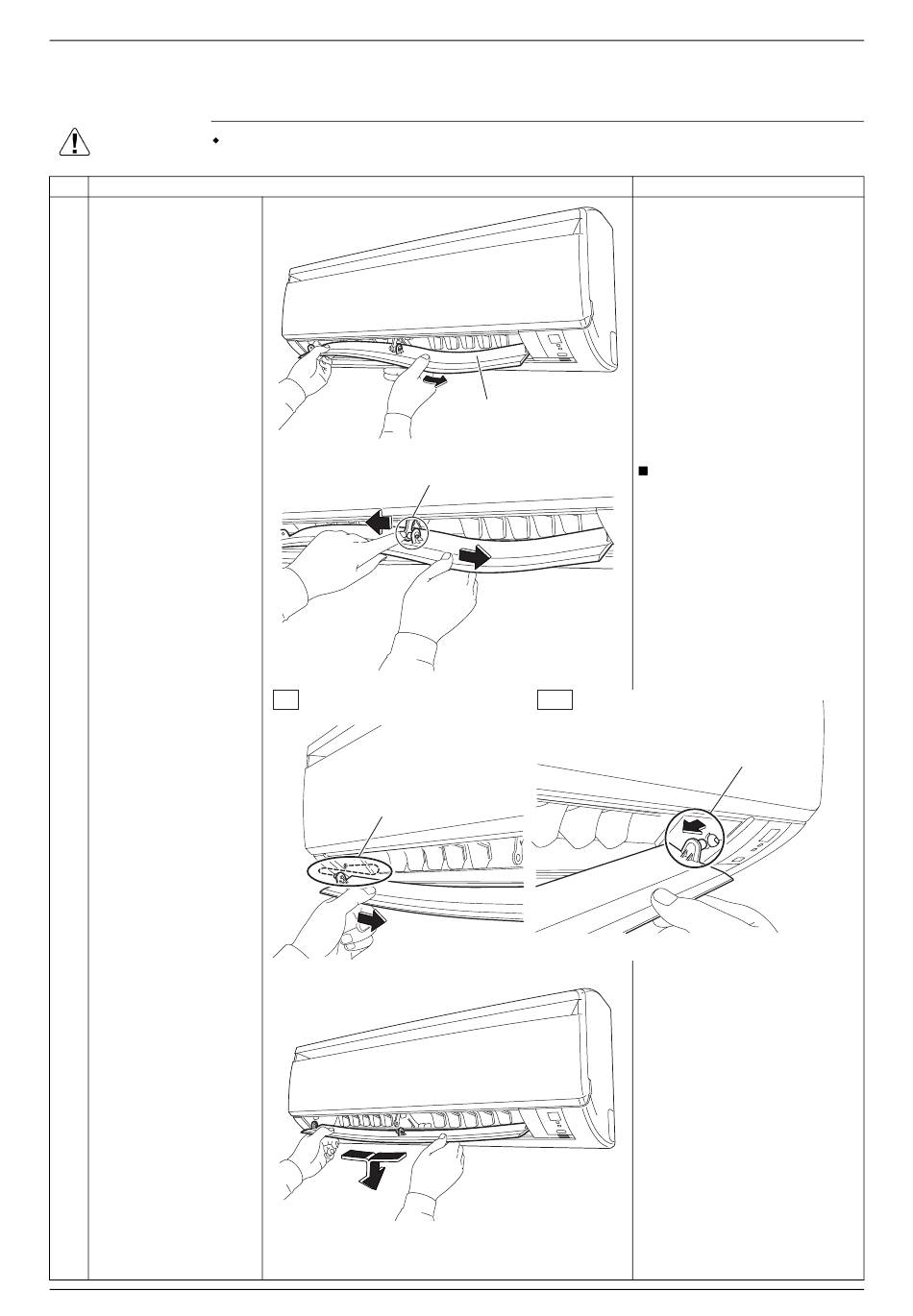

Step
1 Release the center
shaft while bending the
horizontal blade
slightly.
2 Release the left shaft.
3 Release the right shaft.
4 Remove the horizontal
blade.
Removal Procedure
Be sure to wait for 10 minutes or more after turning off all power supplies before
disassembling work.
Procedure
Left
Shaft
Horizontal blade
(R18188)
Shaft
(R23355)
Right
(R17333)
Horizontal Blade
Points
Installation procedure
1. Fit the right shaft of the
horizontal blade first. Make
sure to rotate the horizontal
blade so the shaft fits in the
correct position.
2. Fit the horizontal blade to the
center and left shafts.
Shaft
(R23349)
3
