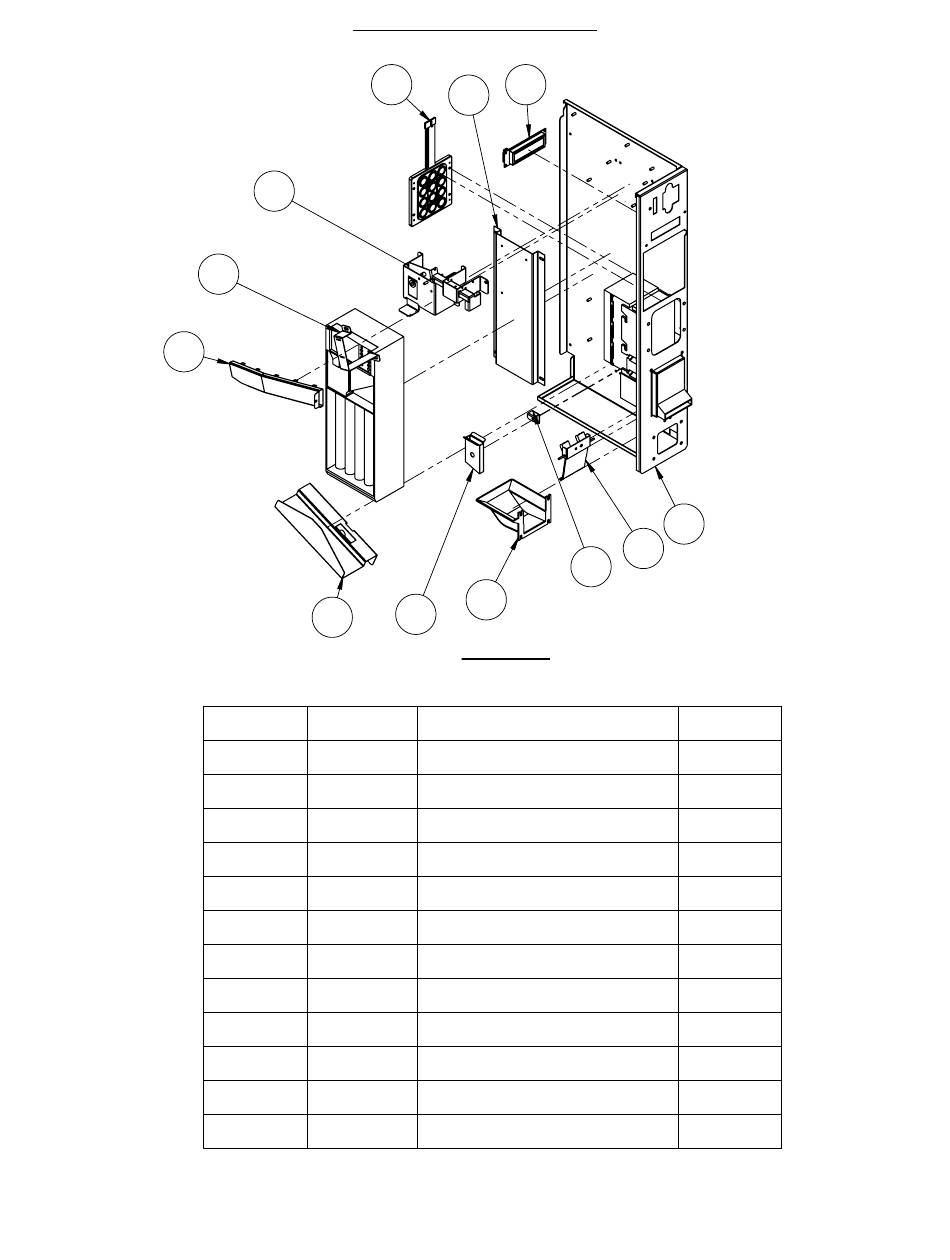

Seaga JDL-2 COMBO Service And Parts Manual page 73

7
JDL V1.0 8 2022
Payment System Assembly
10
9
8
6
ITEM NO. PART NO.
1 SAI92008G
2 SAI920
3 STI92052G
4 PLI607
5 SAI92024G
6 STI92029G
7 SAI92023
8 STI92049
9 SAI92016
10 SAI820
11 VS129G
12 ELC909
12
11
3
4
5
Parts List
DESCRIPTION
SLIDE OUT VERTICAL SHELF
RETURN COIN FLAP ASSEMBLY
COIN DROP MOUNT
COIN RETURN TRAY
COIN DROP CHUTE
COIN RETURN CHUTE
COIN INSERT CHUTE
SUPPORT COIN CHUTE
COIN RETURN ASSEMBLY
KEYPAD
COIN CHANGER BRACKET
DISPLAY
73
1
2
QTY.
1
1
1
1
1
1
1
1
1
1
1
1
