Service Mode by pressing the MENU button and scroll through to QTY/TUBE (3), and load coins in through the
front coin slot, as if you were inserting money to purchase items. Once the coins start dropping into the coin
overflow tray, that means that the coin tubes are full and the VMC has an inventory of coins stored and will
calculate transactions accordingly. This is also known as priming the changer.
The Coin Overflow Tray holds all accepted coins except for coins needed to maintain inventory in the Tubes.
The User Interface Buttons are located on the upper portion of the changer (Figure 24). When in Service
Mode, go to QTY/TUBE (3) and press a User Interface Button on the changer to dispense the coins in that tube.
Note that the changer will empty that selection of coins. To stop this mode, press the selection's User Interface
Button again.
Note: You may also physically remove the Coin Cassette to load and unload coins. Note that doing so will not
maintain audit totals.

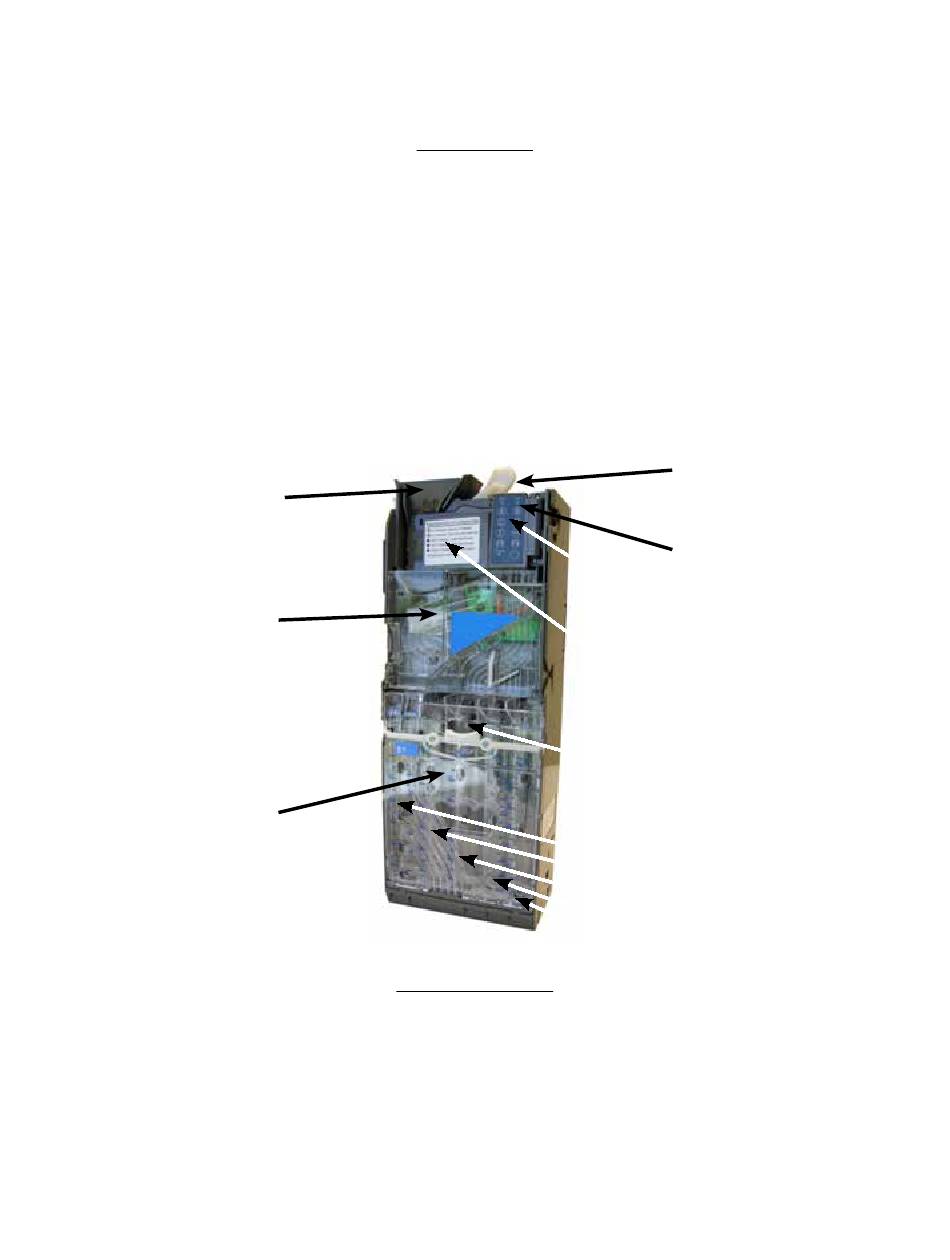

Figure 24 - Coin Changer
Coin Funnel
Coin Channel
Coin Cassette
1. Unplug the machine from the power source
2. Unlock and open the Front Door
3. Open the Acceptor Gate Assembly by pulling forward on the Coin Funnel
