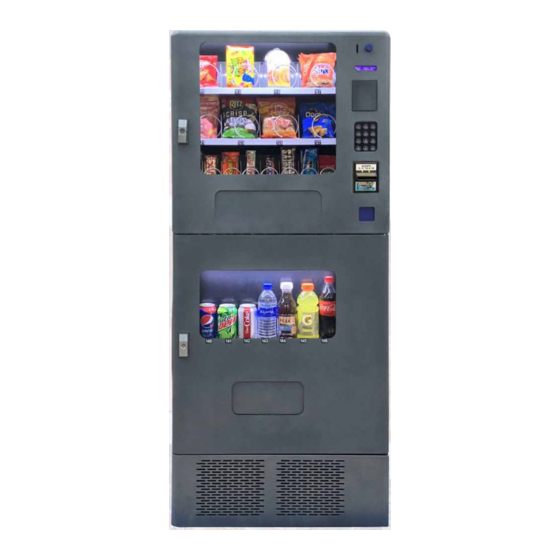

Seaga JDL-2 COMBO Service And Parts Manual
  1. Manuals
  2. Brands
  3. Seaga Manuals
  4. Vending machines
  5. JDL-2 COMBO
  6. Service and parts manual

Seaga JDL-2 COMBO Service And Parts Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

JDL V1.0 8 2022
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the JDL-2 COMBO and is the answer not in the manual?

Questions and answers

Related Manuals for Seaga JDL-2 COMBO

Summary of Contents for Seaga JDL-2 COMBO

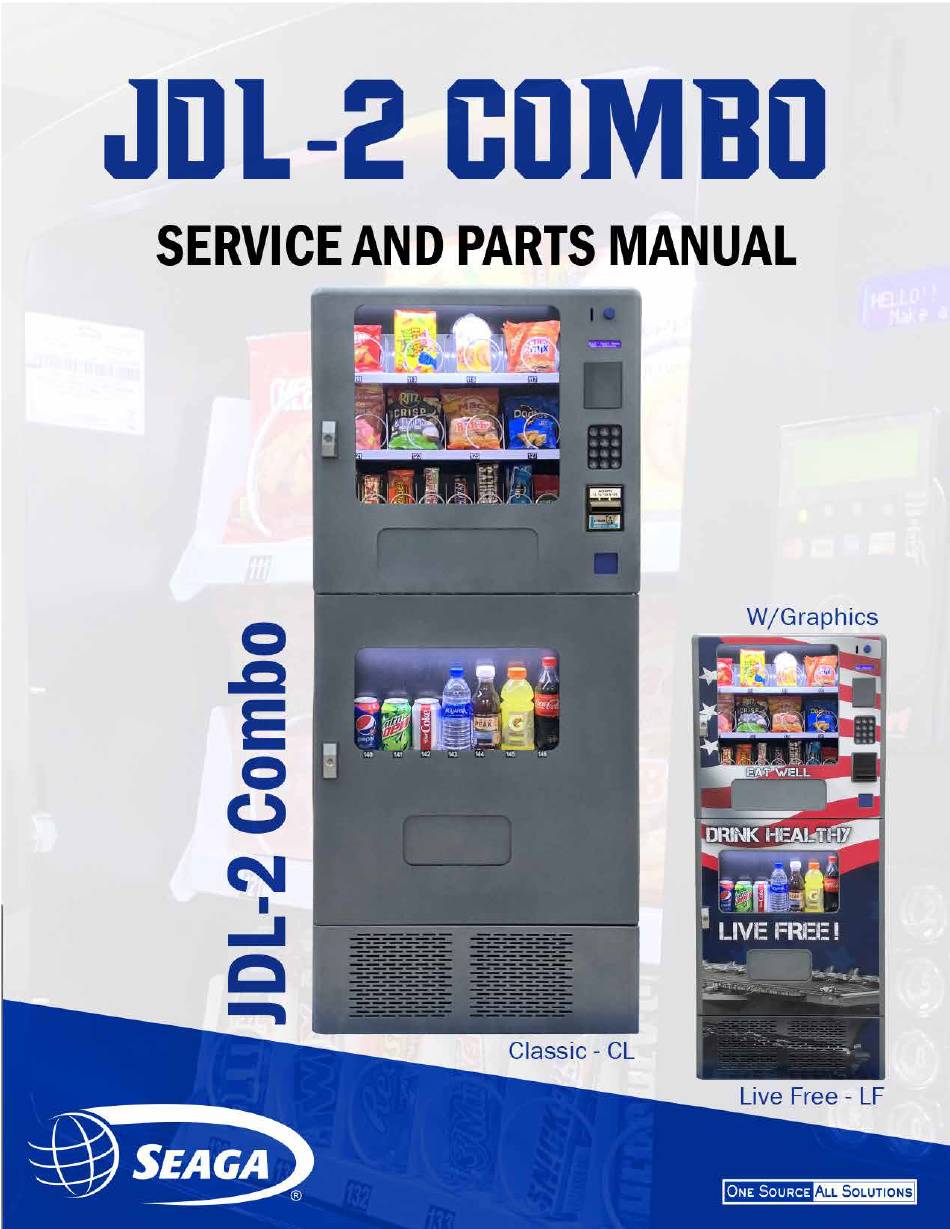

  • Page 1 JDL V1.0 8 2022...

  • Page 2: Introduction

    Once you have your vendor located, we suggest that you keep this manual for future reference, or you can view this manual online at www.seaga.com. Should any problems occur, refer to the section entitled “TROUBLESHOOTING”. It is designed to help you quickly identify a problem and correct it.

  • Page 3: Table Of Contents

    Table Contents INTRODUCTION READ THIS MANUAL COMPLETELY EQUIPMENT INSPECTION SPECIFICATIONS CAUTIONS OVERVIEW RECEIVING, INSPECTION, UNPACKING AND TESTING LOCK INSTALLATION LOADING PRODUCT TRAYS PRODUCT LOADING COIL ADJUSTMENT LOADING BEVERAGE LANES DISPLAY SERVICE MODE SERVICE MODE NAVIGATION VMC – VENDING MACHINE CONTROLLER MENU HIERARCHY SERVICE MODE ERROR CODE MESSAGES...

  • Page 4: Specifications

    SPECIFICATIONS The vending machine is comprised of two(2) units - Snack Unit (JDLS) and Beverage Unit (JDLD). Installation and setup of these units is explained in the next sections of this manual. Machine Description Snack Unit Beverage Unit Model Number JDL2S JDL2S JDL2B...

  • Page 5: Overview

    CAUTION! If the power cord is damaged, it must be replaced by the manufacturer, authorized service agent or a similarly qualified person to avoid electrical hazards. ATTENTION! This dispensing machine is very heavy. Ensure that sufficient personnel are available for lifting or transporting the machine.

  • Page 6: Receiving, Inspection, Unpacking And Testing

    Reporting damages and the seeking of restitution is the responsibility of the equipment owner. The factory is willing to assist you in this process in any way possible. Feel free to contact Seaga Customer Care with questions you may have on this process. Once you have your vending machine located, we suggest that you keep this manual for future reference.

  • Page 7: Installation

    INSTALLATION Once the machines have been unpacked and placed in their permanent location, the electrical connection and mechanical connection must be made. Tools required: Adjustable wrench and Philips screwdriver. For optimal installation, follow the order of connections as outlined below: 1.Mechanical Connection between Snack and Beverage Units: The Snack and Beverage units must be screwed together for safety purposes.
  • Page 8 Connect the refrigeration harnesses to the two connectors found in the snack unit that are tied together, see Figure 2 below. (Note: the single harness located inside the snack unit is for the LED lighting which will be covered in following steps). Connect the Beverage Main harness to the bottom port on the electrical panel as shown in Figure 3 below.
  • Page 9 The Beverage Unit has a live product display that is lit by LED lighting. Locate the LED Light harness, Figure 5, on the inside of the Beverage Unit Door. Insert the LED Light harness up through the Snack Unit as done for the other connections.

  • Page 10: Loading Product Trays

    LOADING PRODUCT TRAYS Open the front door of snack unit and push down on the plastic lock lever on the right side of the tray to unlock. Holding the lever down, grasp the tray and lift the front of the tray slightly and pull forward. The tray will slide out and then tilt down to make loading of products easier.

  • Page 11: Product Loading

    PRODUCT LOADING Snack Unit Wide products such as Chip bags etc. are loaded in Tray 1 and Tray 2. Narrow products such as Candy bars are loaded in Tray 3. See Figures 8a and 8b. Figure 8a – Loading Product Correct –...

  • Page 12: Coil Adjustment

    COIL ADJUSTMENT If you are required by a location to vend a product that does not fit into the standard coil installed, you may need to order a different coil and install it. To replace a coil: Remove the Coil from the Coil Driver by lifting the back of the coil up off the coil driver. You will need to move the bottom of the coil clear of the coil driver to completely remove the coil.
  • Page 13 Figure 10 – Coil Rotation Adjustment Pull the Coil Driver and Coil forward; Rotate 1/8 of a turn and reinsert back into product tray. Squeeze two tabs on the back of the Coil Driver BEVERAGE UNIT Figure 11 shows a pictorial view of vending possibilities for your beverage machine. This is NOT how your machine is set from the factory.

  • Page 14: Loading Beverage Lanes

    Back of machine Front of machine 1.) For most bottles, place bottom of the first bottle against the front of the column. Place the top of the second bottle to the back of the column, facing the bottom of the bottle with the top of the first bottle. See Figure 13.
  • Page 15 Figure 14 – Retainer in Load Position Retainer 2.) 20 oz/591 ml Bottles are loaded lying down, two deep in each column. Load the first bottle so that the top touches the back of the column. The next bottle should also be loaded with the top toward the back of the column, positioned against the bottom of the first bottle.
  • Page 16 Figure 15 – Loaded Product with Retainers Secured Retainer Adjusted within ½” of product Locking Arm Secured Refer to Figure 16 below for alternate product requirements and the accessories needed to properly vend these items. Size Description Product Setup/Accessory Load Capacity Group Aquafina Water,...
  • Page 17 By adjusting the Shims and/or changing the inserts any column can be converted to cans or bottles. Contact Seaga Customer Service if you need assistance. Setup Accessories used in your beverage machine are shown here (Figure 17, Figure 18 and Figure 19) with part numbers if interested in ordering additional accessories.
  • Page 18 Figure 18 – Auger Insert, Large Auger Insert, Large Auger Insert, Narrow Product Part # PLI2182 Part # PLI2206 Figure 19 –Back Spacer Part # SA484 Your machine has a live product display shelf for the beverages. Take care to use packaging that is in perfect condition and products that are still within their expiration date to present the best possible advertisement to your potential customers.

  • Page 19: Display

    DISPLAY The LCD Display is a two line, 20 character text display panel located on the front of your snack machine. The display interacts with the customer to show the amount of money entered into the vendor and the cost of their selection among other information as programmed.

  • Page 20: Service Mode

    KEYPAD * = Exit or Next # = Save SERVICE MODE The operation of the machine can be adjusted by entering service mode by pressing the MENUS button on the VMC circuit board (see Figure 21 for reference) and then accessing the appropriate operation. Price setting, audit display and operating modes can be read and adjusted from here.

  • Page 21: Vmc - Vending Machine Controller

    VMC – VENDING MACHINE CONTROLLER Enter Service Mode by pressing the MENUS Button on the VMC Circuit board. (Fig. 21) Figure 21 – VMC and Menus Button MENUS Button JDL V1.0 8 2022...

  • Page 22: Menu Hierarchy

    MENU HIERARCHY PRICE CASH QTY/TUBE CONFIGURATION OPTIONS All Items Forced Vend All Items Date/Time Enter this mode Health Safety Bill Escrow when priming/filing Language Selection Multi-Vend Selection the changer All Items – Type Coupon Free Vend Row – Type Token Fast Change Selection –...

  • Page 23: Service Mode

    SERVICE MODE 1. PRICE PROGRAM Price Program is used to set the prices for All Items, by Row or by individual Selection. Save time and set All Items to the most common price, going back to Row or Selection for different prices as required. ALL ITEMS 1.
  • Page 24 COUPONS ALL ITEMS 1. Press Service Mode Button 2. Press 1 for Price Program Press 4 for Coupons Press 1 for Coupon1 (or corresponding number for additional coupons, up to Coupon5) Press 1 for All Items Press 1 to toggle On/Off Press # to Save changes Press * to Exit to previous menu 9.
  • Page 25 Press * to exit to previous menu Press 3 to enter a Selection Use the number keys to enter a Selection number Press 1 to toggle Item On/Off Press # to save the setting Press * to exit to previous menu Press 4 to enter Coupon Value menu Press # to edit Coupon1 value Use the number keys to enter Coupon1 value...
  • Page 26 Use number keys to enter Row Number Press 1 to toggle Row On/Off Press # to save changes Press * to exit to previous menu Press 4 to enter Token Value menu Press # to edit Use number keys to enter Token value Press # to save the setting Press * to exit to previous menu Select Token2 –...
  • Page 27 Press 1 for Combo1 (or corresponding number for additional combos, up to 5 options available) Press # to edit Use number keys to enter First Combo Item Number Press # to Save changes Use number keys to enter First Combo Item Price Press # to save changes Press 1 (next) to enter the Selection Ranges Enter Range number, then enter selection numbers...
  • Page 28 Use number keys to enter Calorie Value Press # to Save Changes Press # for Next Row Repeat Steps 5-8 until finished Press * to exit to previous menu CALORIES BY SELECTION 1. Press Service Mode Button 2. Press 1 for Price Program Press 7 for Calories Press 3 Selection Use number keys to enter Selection Number...
  • Page 29 Press 4 to Reset Cash Press 5 to view Historical Card Press 6 to Reset Card Press 7 to Clear Press * to exit to previous menu SELECTION (3) 1. Press Service Mode Button 2. Press 2 for Cash Counters Press 3 for Selection Use number keys to enter Selection number Press 1 to view Historical Count...
  • Page 30 CONFIGURATION The following sub-menus are included in the Configuration Menu: • Date/Time • Selection – Type • Health Safety • Auto Reinstate • Language • StS • All Items – Type • StS Custom • Row – Type • Advanced Config* DATE/TIME 1.
  • Page 31 LANGUAGE 1. Press Service Mode Button 2. Press 4 for Configuration Press 3 for Language Press 3 to toggle between English, Spanish or French Press # to Save changes Press * to exit to previous menu ALL ITEMS: TYPE 1. Press Service Mode Button 2.
  • Page 32 Press * to exit to previous menu SPACE TO SALES (StS) Space to Sales (or StS) is a feature that rotates products so that First In First Out (FIFO) is assured and a popular item isn’t sold out. This feature is only recommended for your beverage area, as the live display in the snack section would make product rotation confusing for your customer.
  • Page 33 Should you want to link your own specific selections, go directly to Custom Space to Sales without setting the entire machine to one of the choices (By2’s, Whole Row…etc), or go into the StS menu and set it to OFF or Custom. If you have a popular brand of water that keeps selling out before you can restock, it may be useful to set Custom StS for two selections to work in tandem, make more sales by having fresh product readily available in a larger capacity.
  • Page 34 OPTICS DISABLES Note: Must be set to ON for this model 1. Press Service Mode Button 2. Press 4 for Configuration Press 0 for Advanced Config Use number keys to enter Password (2314) Press 2 for Optics Disables menu Press 2 to toggle ON/OFF to set to ON Press # to save changes Press * to exit to previous menu MOTOR TYPE...
  • Page 35 AUX MENU Note: Not used on this model. DEFROST MENU 1. Press Service Mode Button 2. Press 4 for Configuration Press 0 for Advanced Config Use number keys to enter password (2314) Press 7 for Defrost Menu Press 1 for Def Length Press 1 to increase by 1 minute until desired time is reached (1-60) Press # to save changes Press * to exit to previous menu...
  • Page 36 Press * to exit to previous menu BILL ESCROW Allows the last bill accepted to be returned, provided the bill acceptor is capable of such a feature. 1. Press Service Mode Button 2. Press 5 for Options Menu Press 2 for Bill Escrow Menu Press 2 to toggle between ON and OFF Press # to save the setting Press * to exit to previous menu...
  • Page 37 Ambient snack machines without a refrigeration system will display 39ºF. These temperatures may be adjusted; however, it is not advised without direction by Seaga Customer Care or an authorized technician. The optimal temperatures have been set according to NAMA specifications for optimal product safety.
  • Page 38 1. Press Service Mode Button 2. Press 5 for Options Menu Press 8 for Set Point Press 8 to edit the temperature Set Point Continue pressing 8 until the desired temperature is shown on the display (0-250) Press # to save changes Press * to exit to previous menu SENSITIVITY ADJUST Allows you to adjust the Drop Sensor Sensitivity for each Beverage Lane (140-146)
  • Page 39 Press 1 to toggle ON/OFF Press # to save changes Press * to exit to previous menu Press 4 for Day menu Press 1 for All Days Press 1 to toggle All Days ON/OFF Press # to save changes Press * to exit to previous menu Press 2 for Monday menu Repeat steps 16-18 as needed using 2 to toggle Press 3 for Tuesday menu...
  • Page 40 Press 2 for Row Use number keys to enter row number Press 1 to toggle ON/OFF Press # to save changes Press * to exit to previous menu Press 4 for Day menu Press 1 for All Days Press 1 to toggle All Days ON/OFF Press # to save changes Press * to exit to previous menu Press 2 for Monday menu...
  • Page 41 Press 1 for Interval1 (up to 4 Intervals may be chosen) Press 3 for Selection Use number keys to enter Selection number Press 1 to toggle ON/OFF Press # to save changes Press * to exit to previous menu Press 4 for Day menu Press 1 for All Days Press 1 to toggle All Days ON/OFF Press # to save changes...
  • Page 42 Press * to exit to previous menu Press 1 for Interval1 (up to 4 Intervals may be chosen) Press 3 for Selection Use number keys to enter Selection number Press 1 to toggle ON/OFF Press # to save changes Press * to exit to previous menu Press 4 for Day menu Press 1 for All Days Press 1 to toggle All Days ON/OFF...
  • Page 43 Press 1 to edit Exact Change Press # to Edit Use number keys to enter an amount Press # to save changes Press * to exit to previous menu ALTERNATE RULE – This function prevents a vend from occurring, flashes the Please Use Exact Change message and will return the established credit amount if one or more of the coin tubes are too low to give back the correct change for the vend.
  • Page 44 Press 1 to toggle ON/OFF Press # to save changes Press * to exit to previous menu Press 2 and use number keys to enter dollar amount Press # to save changes Press * to exit to previous menu SHUTDOWN This menu sets the VMC to shut down All Items, by Row or by Selection, based on four (4) time of day intervals.
  • Page 45 Use number keys to enter Stop Time in 12-hr time format (HH:MM:SS) AM/PM Press # to save changes Press * to return to previous menu Press 8 for Lighting menu Press 8 to toggle Lighting ON/OFF Press # to save changes Press * to return to previous menu Press 2, 3 or 4 to edit Intervals 2, 3 or 4 Press 9 for enable menu...
  • Page 46 Press 8 to toggle Lighting ON/OFF Press # to save changes Press * to return to previous menu Press 2, 3 or 4 to edit Intervals 2, 3 or 4 Press 9 for enable menu Press 9 to toggle On/Off Press # to save changes Press * to exit to previous menu SHUTDOWN BY SELECTION...
  • Page 47 Press 9 for enable menu Press 9 to toggle On/Off Press # to save changes Press * to exit to previous menu ENERGY SAVINGS Use this menu to set a non-health safety machine to run at a higher than normal temperature during set times.
  • Page 48 Press 9 for Enable menu Press 9 to toggle ON/OFF Press # to save changes Press * to exit to previous menu PAIR MOTORS Note: Not applicable. No Motors should be paired. DEGREES This function allows you to change from Fahrenheit to Celsius. 1.
  • Page 49 ALL ITEMS This function tests all motors in sequence automatically. To stop the test, press * to exit. NOTE: All selections should be empty prior to performing this test. 1. Press Service Mode Button 2. Press 9 for Selection motor test menu 3.
  • Page 50 MANUAL DEFROST Note: Do not use unless requested by trained personnel 1. Press Service Mode Button 2. Press 0 for Test Modes Press 5 for Manual Defrost, which will enable you to set a manual defrost period for the machine Press 5 to toggle ON/OFF Press # to save changes Press * to exit to previous menu...
  • Page 51 Motor Errors Error Message Description Possible Solutions Motor [Number] Open The motor indicated or harness to Check the motor and motor harness that motor has an open electrical for open connections. Test vend motor. connection. Replace if necessary. Motor [Number] Short The motor or harness has an elec- Check motor and motor harness for trical short.
  • Page 52 Coin Changer Errors Error Message Description Possible Solutions Coin Mech Comm VMC does not have communica- Check MDB Harness to changer. Check for tion with the coin changer. power on changer. See changer service manual. Coin Mech Tube Sns The coin changer has reported a See changer service manual.
  • Page 53 Card Reader 1 and 2 Errors Error Message Description Possible Solutions Card RDR1 or 2 Comm VMC does not have communica- Check MDB Harness to card reader. tion with the card reader. Check for power on card reader. Card RDR1 or 2 Err The card reader reports an error See card reader service manual.
  • Page 54 To Home a Vend Motor a. Unlock and open the Front Door to access the VMC Board, and enter Service Mode by pressing the MENU Button b. Enter the Test Vend mode (8) c. Enter the number of the motor you wish to home. The motor will rotate to its home position. 2.
  • Page 55 Service Mode by pressing the MENU button and scroll through to QTY/TUBE (3), and load coins in through the front coin slot, as if you were inserting money to purchase items. Once the coins start dropping into the coin overflow tray, that means that the coin tubes are full and the VMC has an inventory of coins stored and will calculate transactions accordingly.
  • Page 56 4. Check for coin jams in this area. Note: the ramp in this area should also be cleaned on a regular basis to ensure trouble-free operation. Coin Ramp – keep clean 5. Open the Coin Channel Cover by using the tab on the left side to pull forward. 6.
  • Page 57 Removal of Coin Changer To Remove the Coin Changer: a. Disconnect the power to the machine – this is very important to avoid damaging not only the coin changer but your VMC. Failure to disconnect power before performing this operation will void your warranty.
  • Page 58 d. Tilt the Discriminator assembly forward and lift off main housing. Note: the discriminator will still be attached by a cable. e. Loosen the three (3) Mounting Screws f. Lift Changer and remove. BILL VALIDATOR The Bill Validator allows your customers to pay for their purchase with paper currency. Your Bill Validator is installed at the factory, and is set to validate $1 and $5 bills, but will not accept bills if the coin tubes are empty.
  • Page 59 Figure 23 – Bill Validator Bill Collection Box (4) Mounting Nuts Lower Housing Removing Bill Validator From time to time it may be necessary to remove the Bill Validator for cleaning and clearing jams. 1. To remove the Bill Validator a.
  • Page 60 Four (4) Mounting Nuts (4th Nut is horizontally across from upper nut) f. Remove Bill Validator Clearing Bill Jams It is possible that a torn or damaged bill can jam within the Bill Validator, putting it out of service. 1. To Clear a Jam. a.
  • Page 61 d. Inspect and remove jammed bill. e. Replace lower unit to resume normal operation REFRIGERATION DECK Your Beverage unit incorporates a high efficiency refrigeration system having two air circulation fans to chill the cans and bottles. The refrigeration unit can be easily accessed by opening the beverage unit door and sliding the front grill up and out.
  • Page 62 Unplug the wire harnesses on the right side of the deck and feed the connectors back through the grommet (Fig. 25). This will prevent damage to the connectors when the deck is removed. Figure 24 – Refrigeration deck Wire Harnesses Rotate both handles outward and pull them toward you to remove them.
  • Page 63 REFRIGERATION Refrigeration is the transfer of heat from one area to another. In the case of this machine, we are transferring the heat from the area containing the beverage selections to the outside of the machine and dissipating the heat throughout the room. The more heat we can transfer away from the beverages the colder they become. This process is accomplished using a sealed compressing system using an ozone friendly gas commonly known as R290 refrigerant.
  • Page 64 3. Clean changer. Q. Why won’t the unit take more than 3 - $1 bills, or more than 1 - $5 bill? A. The VMC protects the amount of change in the changer and will only allow the bill acceptor to take bills up to the highest vend price in the machine.
  • Page 65 If further assistance is needed, please contact Seaga Customer Care or a local refrigeration technician. Q. My drinks are not cooling at all. 1. Ensure through the Service Mode Temp menu that the refrigeration is set to cold. Ensure the unit has power –...
  • Page 66 Q. Are there different coils that will hold a larger number of products (more product spaces)? A. For other coil options, please call Seaga Customer Care. Q. My Drink Unit door will not line up and lock. What can I do? A.
  • Page 67 and you will see a series of nuts in each corner of the mounting plate. Loosen each one of those a half to full turn. Power the machine off for 10 seconds then power back up and test the keypad. Changer My vendor won’t accept change, how do I fix this? 1.
  • Page 68 EXPLODED VIEWS Snack Unit (JDLS) Parts List ITEM NO. PART NO. DESCRIPTION QTY. SAI92030 CABINET SAI92033 DOOR WE9225G SLIDE-OUT VERTICAL SHELF SAI92022 TRANSFORMER PLATE ASSEMBLY SAI9221 8-SELECTION PRODUCT TRAY SAI9222 4-SELECTION PRODUCT TRAY STI94087G BRACKET POWER CORD HAI799 STRAIN RELIEF ELC957 POWER CORD EL980...
  • Page 69 Snack Unit Door (JDLS) Parts List ITEM NO. PART NO. DESCRIPTION QTY. HAC247/HAC246 T-HANDLE & LOCK SAI92031 DOOR PLI816A DOOR WINDOW FAI856 HEX NUT FAI884 SCREW HAI351 HINGE SAI92012G DELIVERY DOOR STI92066 BRACKET, PUSH DOOR MOUNTING STI70022 COIN RETURN BRACKET HAI708 SPRING HAI2096...
  • Page 70 Beverage Unit (JDLD) Parts List ITEM NO. PART NO. DESCRIPTION QTY. SAI94011G CABINET STI94100 DOOR ASSEMBLY SAI56012 DISPENSER ASSEMBLY HAI2094 GUIDE PIN REI921 REFRIGRATION DECK PLI613 KNOB FAI915 HEX BOLT SAI94026 FRONT GRILL STI659 HANDLE VS119 DIVIDER, AIR FLOW STI94097 WIRE GUIDE JDL V1.0 8 2022...
  • Page 71 Beverage Unit Door (JDLD) Parts List ITEM NO. PART NO. DESCRIPTION QTY. HAI739A T-HANDLE SAI94028 DOOR FOAMED PLI808A DOOR WINDOW PLI94005 INNER LINER STI94086 GASKET RETAINER, VERTICAL STI94086A GASKET RETAINER, HORIZONTAL PLI615 GASKET SAI94027 CAN DISPLAY STI94104 SELECTION LABEL HOLDER HAI402 HINGE STI94102...
  • Page 72 Dispenser Assembly Parts List ITEM NO. PART NO. DESCRIPTION QTY. ITEM NO. PART NO. DESCRIPTION QTY. STI54026 PANEL, EXTENSION, RH STI54020 BRACKET, AUGER, MOUNT, FRONT STI54039 SUPPORT, MIDDLE, DISPENSER HAC910 SPLIT NUT, T-HANDLE HAI2045 AUGER STI54042 DELIVERY PANEL, OUTSIDE LH STI97090 DEFLECTOR, SIDE STI54029...
  • Page 73 Payment System Assembly Parts List ITEM NO. PART NO. DESCRIPTION QTY. SAI92008G SLIDE OUT VERTICAL SHELF SAI920 RETURN COIN FLAP ASSEMBLY STI92052G COIN DROP MOUNT PLI607 COIN RETURN TRAY SAI92024G COIN DROP CHUTE STI92029G COIN RETURN CHUTE SAI92023 COIN INSERT CHUTE STI92049 SUPPORT COIN CHUTE SAI92016...
  • Page 74 4-Selection Tray Assembly Parts List ITEM NO. PART NO. DESCRIPTION QTY. SAI92006 TRAY WELDED WFI887 COIL FAI923 NYLOCK NUT PLI802A WHEEL TRAY HAI602 PIN WHEEL TRAY FAI882 SCREW ELC920 MOTOR PLI920 COIL DRIVER STI92007A DIVIDER FAI892 SCREW JDL V1.0 8 2022...
  • Page 75 8-Selection Tray Assembly Parts List ITEM NO. PART NO. DESCRIPTION QTY. SAI92006 TRAY WELDED WFI814 COIL FAI923 NYLOCK NUT PLI802A WHEEL TRAY HAI602 PIN WHEEL TRAY FAI882 SCREW ELC920 MOTOR PLI920 COIL DRIVER STI92007A DIVIDER FAI892 SCREW JDL V1.0 8 2022...
  • Page 76 Refrigeration Deck Parts List DESCRIPTION SAI59016 REFRIGERATION DECK, FOAMED REC936 EVAPORATOR REC300A FAN MUFFIN REI929 COMPRESSOR ELI595 TERMINAL BLOCK PLI612 CONDENSATE TRAY REC928 MOTOR STI94076 SHROUD, CONDENSER REC934 CONDENSER HAI796 GROMMET HAI907 HANDLE VS198 BRACKET, SPONGE PAD REC355 WICK SPONGE REI818C DRYER FAI864...
  • Page 77 WIRING DIAGRAM (Refrigeration Deck) JDL V1.0 8 2022...
  • Page 78 • Proper use of equipment including loading, programming and setup THIS WARRANTY IS EXCLUSIVE AND IS GIVEN BY SEAGA AND ACCEPTED BY BUYER IN LIEU OF ANY AND ALL OTHER WARRANTIES, WHETHER EXPRESS OR IMPLIED, INCLUDING, WITHOUT LIMITATION, ALL WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE.
