- Page 1 FACTORY AUTOMATION QUICK START GUIDE IUH-F192-V1-* Read/Write Head for IDENTControl...
- Page 2 IUH-F192-V1-* With regard to the supply of products, the current issue of the following document is ap- plicable: The General Terms of Delivery for Products and Services of the Electrical Indus- try, published by the Central Association of the Electrical Industry (Zentralverband Elektrotechnik und Elektroindustrie (ZVEI) e.V.) in its most recent version as well as the supplementary clause: "Expanded reservation of proprietorship"...
-
Page 3: Table Of Contents
IUH-F192-V1-* Introduction................. 4 Purpose of this quick start guide ............4 Product documentation on the internet..........4 Declaration of Conformity (R&TTE Directive 1995/5/EC)....4 FCC Information ................... 4 IC Information..................5 UL Information..................5 Additional country-specific approvals..........5 Product Description ..............6 General Functions and Features............ -
Page 4: Introduction
Note! A Declaration of Conformity can be requested from the manufacturer or downloaded from www.pepperl-fuchs.com. The product manufacturer, Pepperl+Fuchs GmbH, 68307 Mannheim, has a certified quality assurance system that conforms to ISO 9001. ISO9001 FCC Information FCC ID: IREIUH-F192-V1 This device complies with Part 15 of the FCC Rules. -
Page 5: Ic Information
Nominal power supply voltage is 24 V . For the intended use this read/write head has to be connected to Pepperl+Fuchs IDENTControl control interfaces using a shielded connection cable. The IDENTControl supplies the read/write head with 20 ... 30 V , Protective Extra Low Voltage (PELV). -
Page 6: Product Description

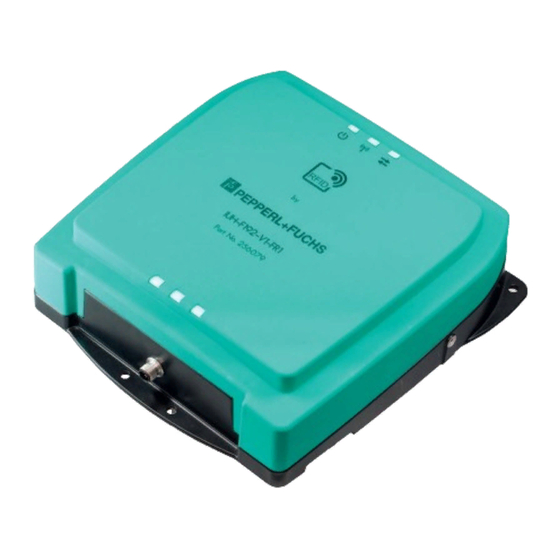

IUH-F192-V1-* Product Description Product Description General Functions and Features Functions The read/write head was developed for reading and writing passive read/write tags with an ultra-high operating frequency. Detection Range The detection range is typically 4 meters. Tags that comply with EPC Gen 2 (ISO/IEC 18000- 63) are supported. -
Page 7: Scope Of Delivery
Tighten the lock screw with a torque of 1.6 Nm ±0,4 Nm Scope of Delivery Read/write head Quick start guide Accessories 2.5.1 IDENTControl The read/write head can be connected to Pepperl+Fuchs IDENTControl control interfaces. Interface Designation 4 read/write heads: Ethernet IC-KP-B17-AIDA1 2 read/write heads:... -
Page 8: Read/Write Tags
IUH-F192-V1-* Product Description 2.5.2 Read/Write Tags Type Designation EPC Gen 2 (ISO/IEC 18000-63) IUC72-F152-M-FR1 IUC72-F152-M-FR2 IUC76-50-FR1 IUC76-50-FR2 IUC76-F157-M-FR1 IUC76-F157-M-FR2 IUC76-F203-M-FR1 IUC76-F203-M-FR2 IUC76-C8-T14-GBL IUC77-F151-M-GBL IUC77-25L100-GBL IUC77-25L110-GBL Table 2.2 2.5.3 Connection cable for R/W heads and trigger sensors Compatible connection cables with shielding are available for connecting the R/W heads and trigger sensors. -
Page 9: Installation
Any accessories ordered Retain the original packaging in case you have to store or ship the device again at a later date. Should you have any questions, please contact Pepperl+Fuchs. Mounting The read/write head is intended for wall mounting or mounting on brackets in internal areas. -
Page 10: Room Orientation
IUH-F192-V1-* Installation 3.3.1 Room Orientation The alignment of the read/write tag antennae in relation to the antennae of the read/write head influences the detection range of the system. Make sure the antennae are aligned parallel to each other. Optimum alignment of the tag Good communication between the read/write head and tag Poor alignment of the tag... -
Page 11: Connection
IUH-F192-V1-* Installation Linear polarization: When an electromagnetic wave has linear polarization, the direction of the vector of the electromagnetic field component is constant. Linear polarization can be either vertical or horizontal. This characteristic depends on the position of the antenna. Circular polarization: When an electromagnetic wave has circular polarization, the vector of the electromagnetic field component rotates around an axis parallel to the direction of emission. -
Page 12: Emc Concept
IUH-F192-V1-* Installation EMC Concept The outstanding noise immunity of the IDENTControl against emission and immission is based on its consistent shielding design, which uses the principle of the Faraday cage. Interference is caught in the shield and safely diverted via the ground connections. write head IDENTControl Control... -
Page 13: Commissioning
IUH-F192-V1-* Commissioning Commissioning Initial Commissioning Note! Transmission License A country-specific transmission license is required to operate the read/write head. In the European Union and Turkey, the manufacturer's EU declaration of conformity constitutes an adequate license. A currently valid transmission license may not exist for all countries of use listed in this chapter, as transmission licenses are temporary in some countries. -
Page 14: Device Settings
IUH-F192-V1-* Commissioning Country identifiers for IUH-F192-V1-FR2 (The currently valid transmission licenses can be found in the data sheet at pepperl-fuchs.com) Country Occupied Frequency Bandwidth Identifier Frequency Access Method Country or Region 902 MHz – 928 MHz Frequency hopping spread spectrum Canada Mexico Argentina... -
Page 15: Operation Via The Command Interface
IUH-F192-V1-* Commissioning Operation via the Command Interface This section shows you how to operate the read/write head using an IDENTControl control interface with serial interface. The commissioning procedure described relates to the RS-232 interface and involves a PC. The examples include the syntax for coding the commands and parameters via the Ethernet TCP/IP and PROFIBUS/PROFINET interfaces. - Page 16 IUH-F192-V1-* Commissioning Move a tag into the read/write head's measurement range. When the tag has been detected and the read-only code has been read out, the "READ / WRITE" LED on the read/write head lights up yellow. The read-only code is displayed in the terminal program. Serial Ethernet PROFIBUS/PROFINET...
- Page 17 IUH-F192-V1-* Commissioning Parameterizing the Read/Write Head Requesting and Setting the Transmission Power Read out the read/write head's transmission power with the read parameter PT command: Serial Ethernet PROFIBUS/PROFINET Command: RP1UPT.00.00 .00.0A.BE.03.00.55.50.54. .BE.03.00.55.50.54.00.00 00.00 Confirmation: .00.06.BE.03.FF.33 .BE.03.FF.33 Response: .30.31.00.32 .00.0A.BE.03.00.34.00.02. .BE.03.00.34.00.02.00.32 00.32 The read/write head's set transmitting power is 50 mW (32 corresponding to 50...
- Page 18 Twinsburg, Ohio 44087 · USA Tel. +1 330 4253555 E-mail: sales@us.pepperl-fuchs.com Asia Pacific Headquarters Pepperl+Fuchs Pte Ltd. Company Registration No. 199003130E Singapore 139942 Tel. +65 67799091 E-mail: sales@sg.pepperl-fuchs.com www.pepperl-fuchs.com Subject to modifications / DOCT-4881 Copyright PEPPERL+FUCHS • Printed in Germany 09/2015...
