FACTORY AUTOMATION
MANUAL
IQT-F116-R4-V1
IQT-F116-R4M-V1
Read/write station (13,56 MHz)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IQT-F116-R4-V1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Pepperl+Fuchs IQT-F116-R4-V1

  • Page 1 FACTORY AUTOMATION MANUAL IQT-F116-R4-V1 IQT-F116-R4M-V1 Read/write station (13,56 MHz)
  • Page 2 IQT-F116-R4*-V1 With regard to the supply of products, the current issue of the following document is applicable: The General Terms of Delivery for Products and Services of the Electrical Industry, published by the Central Association of the Electrical Industry (Zentralverband Elektrotechnik und Elektroindustrie (ZVEI) e.V.) in its most recent version as well as the supplementary clause: "Expanded reservation of proprietorship"...
  • Page 3: Table Of Contents

    IQT-F116-R4*-V1 Contents 1 Introduction................. 4 2 Safety................... 5 Symbols relevant to safety ................5 Intended use ....................5 General notes on safety.................5 Specific safety instructions................6 2.4.1 Read/write station IQT-F116-R4*-V1 ............6 3 Product description ............7 4 Installation................8 Storage and transport ...................8 Unpacking.....................8 Assembly and connection of the read /write station ........8 5 Operation................
  • Page 4: Introduction

    Introduction Introduction Congratulations You have chosen a device manufactured by Pepperl+Fuchs. Pepperl+Fuchs develops, produces and distributes electronic sensors and interface modules for the market of automation technology on a worldwide scale. Before you install this device and put it into operation, please read the operating instructions thoroughly.
  • Page 5: Safety

    If serious faults occur, stop using the device. Secure the device against inadvertent operation. In the event of repairs, return the device to your local Pepperl+Fuchs representative or sales office. The connection of the device and maintenance work when live may only be carried out by a qualified electrical specialist.
  • Page 6: Specific Safety Instructions

    IQT-F116-R4*-V1 Safety Note! Disposal Electronic waste is hazardous waste. When disposing of the equipment, observe the current statutory requirements in the respective country of use, as well as local regulations. Specific safety instructions 2.4.1 Read/write station IQT-F116-R4*-V1 Warning! Uncontrolled processes may harm your plant Before commissioning, make sure that no danger can arise to the plant in which the device is integrated.
  • Page 7: Product Description

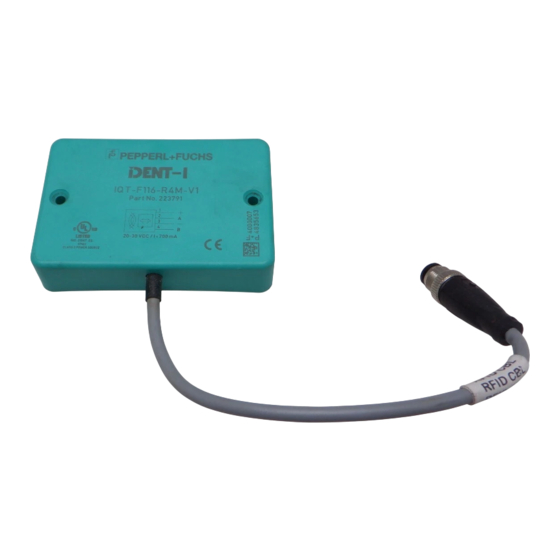

    13,56 MHz. The device is characterised particularly by its flat design with cable outlet and integrated M12-plug. The housing is resistant to welding bead formation, so that the write/read station can be used in a welding area. Figure 3.1 IQT-F116-R4-V1 Figure 3.2 IQT-F116-R4M-V1...
  • Page 8: Installation

    Retain the original packaging in case you have to store or ship the device again at a later date. Should you have any questions, please contact Pepperl+Fuchs. Assembly and connection of the read /write station Note! Do not install that the read/write station directly onto metallic surfaces.
  • Page 9: Operation

    The purpose of this data carrier type is to read the UID (fix code) of all data carriers supported by Pepperl+Fuchs that conform with ISO 15693. The read/write tags all feature a read/write range in which data can be written and modified, as well as a protected memory in which the read-only code is saved.
  • Page 10: Command Overview

    IQT-F116-R4*-V1 Operation Below you will find an overview of the memory setup and the memory capacities of the various read/write tags: Memory Read-Only or Address Range Data Range Capacity in Read/Write Tag Access <WordAddr> <WordNum> Bytes ICODE_SLI Read/write 0000 ... 001D 01 ...
  • Page 11: System Commands

    System commands Note! Command structure Since the IQT-F116-R4M-V1 features a device adress (= <DeviceNo>), you must specify the device address within the commands. For the IQT-F116-R4-V1 the device address is not applicable. Examples Command structure IQT-F116-R4-V1: Command: <CommandCode><CommandParameters><CHCK><ETX> Response: <Status><Data><CHCK><ETX>...
  • Page 12 Tag types 13.56 MHz The purpose of this data carrier type is to read the UID (fix code) of all data carriers supported by Pepperl+Fuchs that conform with ISO 15693. With the <TagType> "20" a mixed operation with different transponder types is possible.
  • Page 13 IQT-F116-R4*-V1 Operation quit QU The running enhanced-buffered read or write commands are canceled. Command: QU <DeviceNo> <CHCK> <ETX> Response: <Status> <DeviceNo> <CHCK> <ETX> configure interface CI This command sets the timeout and the baud rate. The values are stored in a non- volatile manner.
  • Page 14: Read/Write Commands

    IQT-F116-R4*-V1 Operation Commands for IQT-F116-R4M-V1 only set device address SD This command changes the DeviceNo in multidrop mode from <OldDeviceNo> to <NewDeviceNo>. The default device adress is "01". Command: SD <OldDeviceNo> <NewDeviceNo> <CHCK> <ETX> Response: <Status> <DeviceNo> <CHCK> <ETX> get device address GA This command reads the DeviceNo of a station.
  • Page 15 IQT-F116-R4*-V1 Operation enhanced buffered write words EW An attempt is made until successful, to write <WordNum> 32-bit words to the address <WordAddr>. When successful a status 0 is sent. If there is no tag or a tag leaves then a status 5 is sent. The command remains running. Command: EW <DeviceNo>...
  • Page 16: Legend

    IQT-F116-R4*-V1 Operation Legend <CHCK>: 1 ASCII character, 8-bit checksum with the addition of all preceding characters, without overrun <CR> 1 ASCII character 13 <Data>: <WordNum> times 4 bytes, a fixcode will always return exacty 8 bytes <DeviceNo>: Read head number 2 ASCII characters, range from "01" to "1E" <ETX>: 1 ASCII character 03 <Status>:...
  • Page 17 IQT-F116-R4*-V1 Operation...
  • Page 18 Twinsburg, Ohio 44087 · USA Tel. +1 330 4253555 E-mail: sales@us.pepperl-fuchs.com Asia Pacific Headquarters Pepperl+Fuchs Pte Ltd. Company Registration No. 199003130E Singapore 139942 Tel. +65 67799091 E-mail: sales@sg.pepperl-fuchs.com www.pepperl-fuchs.com Subject to modifications Copyright PEPPERL+FUCHS • Printed in Germany TDOCT1431A_ENG 10/2013...
